PUFCO Compressors Powers Precision: A Success Story with an Automation Instrument Leader

In the highly competitive automation instrument industry, stable, clean, and energy-efficient compressed air is the lifeblood of production—directly impacting product quality, operational efficiency, and long-term cost control. When a renowned automation instrument company sought a reliable compressed air solution to support its precision manufacturing processes, including instrument air supply and specialized production lines, PUFCO Compressor (Shanghai) Co., Ltd. delivered a customized, high-performance solution that exceeded expectations. This case study highlights how PUFCO’s cutting-edge technology and customer-centric approach drove operational excellence for the client.

Customer Background

The client, a leading manufacturer of automation instruments, specializes in developing and producing high-precision measurement and control equipment for industries such as petrochemicals, electronics, and pharmaceuticals. Its production processes demand compressed air with strict standards for purity (low oil content, minimal impurities), stability (consistent pressure and flow), and energy efficiency (to reduce operational costs). Prior to partnering with PUFCO, the client faced challenges with inconsistent air supply, high energy consumption, and frequent maintenance issues from its outdated compressed air system—issues that threatened production continuity and product quality.

Core Challenges

• Stringent Air Quality Requirements: Instrument calibration and precision component manufacturing required compressed air with ultra-low oil and moisture content to avoid contaminating sensitive parts.
• Variable Air Demand: Fluctuations in production volume (e.g., peak periods for instrument assembly and off-peak R&D phases) needed a system that could adapt without wasting energy.
• Energy Efficiency Goals: As a sustainability-focused enterprise, the client aimed to reduce electricity consumption and carbon footprint while maintaining production capacity.
• Reliability & Low Maintenance: Downtime in compressed air supply would disrupt the entire production line, so the client required a durable system with minimal maintenance needs.

PUFCO’s Customized Solution

After in-depth communication, on-site assessments, and air demand analysis, PUFCO designed a comprehensive compressed air system tailored to the client’s specific needs, adhering to the principle of “Energy Conservation First, Value Sharing.” The solution included:

1. Core Compressor Equipment

• 5 unit of PUFCO FAV-15 Permanent Magnet Variable Frequency (PMVFD) Screw Compressor: Delivers 2.1–2.5 m³/min of air flow at 0.7–1.0 MPa, equipped with a high-efficiency IE4/IE5 motor for superior energy savings.
• 5 unit of PUFCO FAV-7 PMVFD Screw Compressor: Optimized for lower air demand scenarios, providing 0.85–1.2 m³/min at 0.7–1.0 MPa, ensuring flexible adaptation to variable loads.
• 2 unit of PUFCO FVT-15TJ Laser-Specific Integrated PMVFD Compressor: Designed for high-precision laser processing, offering 2.0 m³/min at 1.6 MPa with oil/water content ≤0.2 ppm, meeting the strictest purity requirements for instrument manufacturing.

2. Air Treatment & Storage

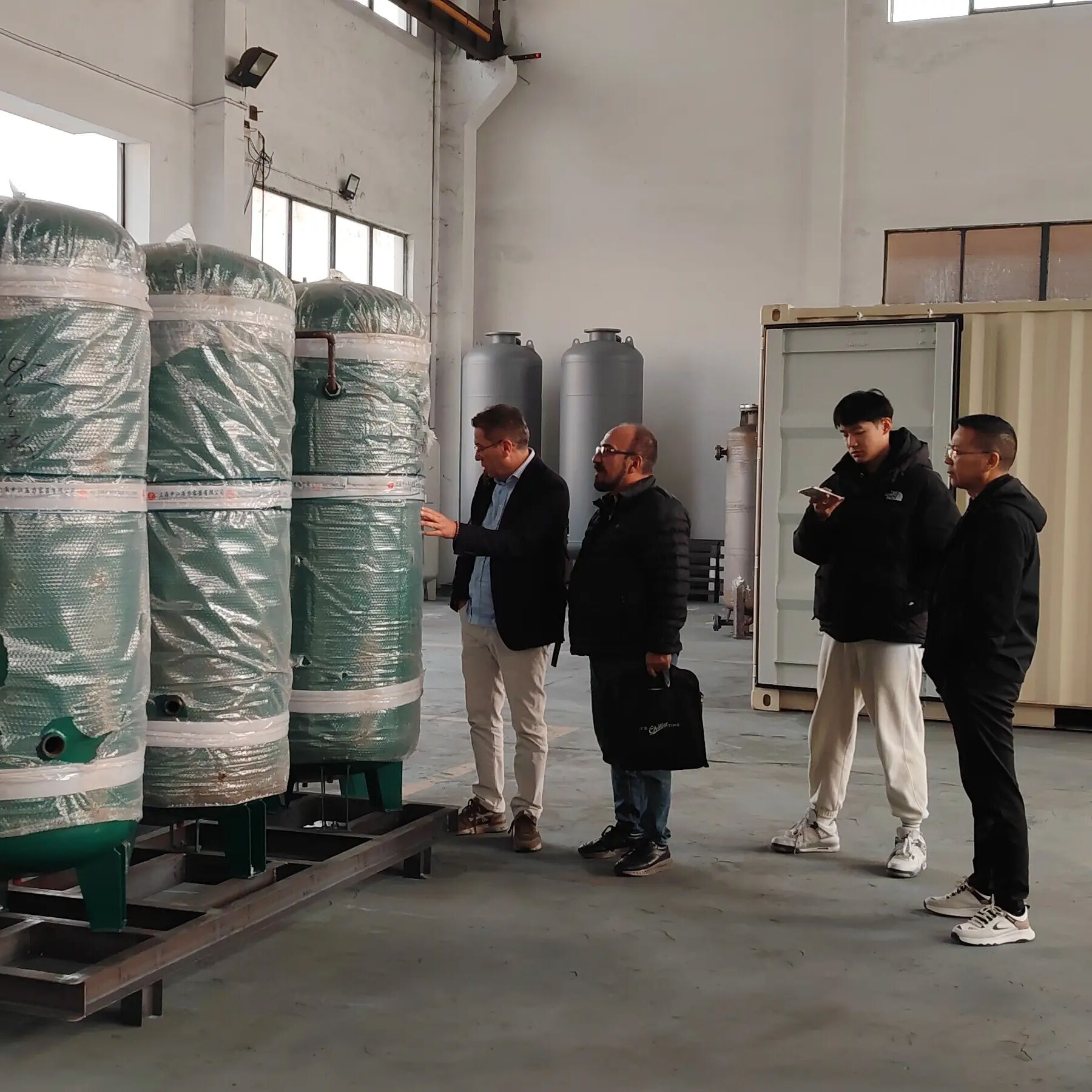

• 6 units of PUFCO C 1/8 Air Receivers: 1.0 m³ capacity each, operating at 0.8 MPa, ensuring stable pressure and reducing frequent on/off cycles of compressors.
• 4 units of PUFCO Refrigerated Dryers (FAD-2GF & FAD-1GF): Achieve a pressure dew point of 2–10℃, effectively removing moisture to protect equipment and products.
• 2 unit of PUFCO FAD-2WR Heatless Adsorption Dryer: Enhances air purity further for critical processes, eliminating residual moisture and impurities.
• 14 units of PUFCO Pipeline Filters (FI-G/H/A/D series): Multi-stage filtration (pre-filtration, oil removal, precision filtration) to ensure compressed air meets ISO 8573-1 standards for oil content (≤0.2 ppm).

3. Intelligent & Energy-Saving Features

• PMVFD Technology: Reduces energy consumption by up to 33% compared to traditional fixed-speed compressors, adjusting motor speed in real-time based on actual air demand.
• IoT Remote Monitoring: Equipped with PUFCO’s Cloud Box IoT system, enabling real-time data tracking, remote control, and predictive maintenance via mobile/PC terminals.
• High-Quality Components: Imported SKF bearings, Parker post-treatment systems, and IP54-protected motors ensure long-term reliability (rotor bearing design life >200,000 hours).

Implementation & Results

PUFCO’s team provided end-to-end support, from on-site installation guidance to staff training, ensuring seamless integration of the new system. The solution was delivered within 15 working days and commissioned successfully, with immediate improvements observed:

1. Superior Air Quality & Production Stability

The multi-stage air treatment system (dryers + filters) achieved compressed air with oil content ≤0.2 ppm and minimal moisture, eliminating contamination risks for precision instruments. The stable pressure supply (±0.01 MPa) reduced product defects caused by air pressure fluctuations, improving yield by 12%.

2. Significant Energy Savings

The PMVFD technology and high-efficiency components cut the client’s annual electricity costs by 33%—translating to savings exceeding the initial investment in the compressors within three years. The system’s automatic sleep mode during low-demand periods further reduced energy waste.

3. Reduced Maintenance & Downtime

PUFCO’s rugged design and high-quality components minimized maintenance frequency. The 24-month warranty (5-year warranty for main engines) and Global service network (26 subsidiaries + 200+ service points) ensured quick response to any issues—average on-site service time was within 4 hours, reducing unplanned downtime by 80%.

4. Intelligent & User-Friendly Operation

The one-click operation, unmanned operation capabilities, and remote monitoring system simplified management. The client’s maintenance team, trained by PUFCO’s senior engineers, gained proficiency in system operation and troubleshooting in just 4 days, reducing reliance on external support.

Why PUFCO?

• Customization: Tailored solutions based on in-depth demand analysis, not one-size-fits-all products.
• Technology Leadership: Sixth-generation two-stage compression hosts, PMVFD technology, and IoT integration for maximum efficiency and reliability.
• Quality Assurance: ISO9001/ISO14001 certification, Class 0 oil-free certification, and 151 patents/software copyrights in energy conservation and intelligent control.
• Comprehensive Service: 24/7 technical support, free on-site training, and a 10-day free trial period (with a lens damage guarantee for laser-specific models) demonstrated PUFCO’s confidence in its products.

Conclusion

By partnering with PUFCO, the automation instrument company transformed its compressed air system from a bottleneck to a competitive advantage. The solution not only met the strict requirements for precision manufacturing but also delivered tangible value through energy savings, reduced maintenance, and improved operational stability. This success story exemplifies PUFCO’s commitment to “providing energy-efficient and intelligent production spaces for global customers” and reinforces its position as a trusted leader in high-end compressed air solutions.
