Water-Lubricated Oil-Free Air Compressors
Power：5.5KW-315KW
Working Pressure：0.75Mpa-1.3Mpa
Air Capacity：0.8m³/min-49.2m³/min
- Overview
- Technical Parameters
- FAQ

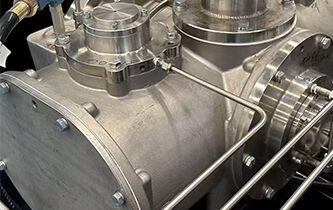

Host Air end
Imported mainframe ensures durability and high quality, providing suitable performance for the production of pure air.

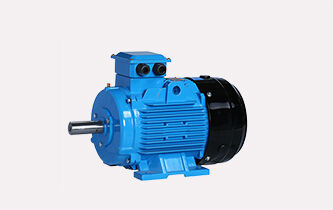

Electric motors
The use of high-efficiency motors (IE3/IE4/IE5), IP5, class B temperature rise test, suitable for dust, high temperature and other harsh environments

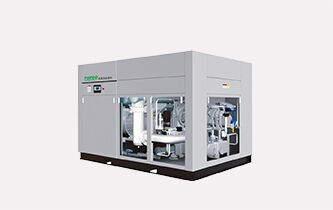

Material
Adopting 304 stainless steel piping, corrosion resistance and long service life.

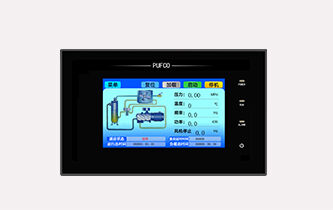

Control system
Dedicated control system, multi -channel pressure sensors and multi -channel temperature sensors to detect the operating status of the unit; more friendly user interface, more accurate and reliable control. ABB, Siemens, and Schneider controllers are available for selection.
High precision frequency converter
Adopt vector control algorithm to achieve high precision motor control. Specialised design for the industry, increasing the customer's ease of use, and more stable performance.
| Model | Power (KW) | Pressure (Bar) | Exhaust Vol. (m³/min) | Size (mm) |
Weight (kg) | Outlet Diameter |
| FWW-15 | 15 | 7.5 | 2 | 1200*900*1200 | 650 | G1" |
| 8.5 | 1.94 | 1600*1100*1500 | 650 | |||
| 10.5 | 1.66 | 1200*900*1200 | 650 | |||
| FWW-18 | 18.5 | 7.5 | 2.81 | 1600*1100*1500 | 800 | G1" |
| 8.5 | 2.7 | 800 | ||||
| 10.5 | 2.19 | 800 | ||||
| FWW-22 | 22 | 7.5 | 3.48 | 1600*1100*1500 | 850 | G1" |
| 8.5 | 3.46 | 850 | ||||
| 10.5 | 2.73 | 850 | ||||
| FWW-30 | 30 | 7.5 | 5.27 | 1600*1100*1500 | 920 | G1-1/2" |
| 8.5 | 5.15 | 920 | ||||
| 10.5 | 3.55 | 920 | ||||
| FWW-37 | 37 | 7.5 | 6.5 | 1600*1100*1500 | 950 | G1-1/2" |
| 8.5 | 6.26 | 950 | ||||
| 10.5 | 5.21 | 950 | ||||
| FWW-45 | 45 | 7.5 | 8.2 | 2200*1400*1800 | 1500 | DN50 |
| 8.5 | 7.81 | 1500 | ||||
| 10.5 | 6.23 | 1500 | ||||
| FWW-55 | 55 | 7.5 | 9.32 | 2200*1400*1800 | 1600 | DN50 |
| 8.5 | 8.86 | 1600 | ||||
| 10.5 | 7.78 | 1600 | ||||
| FWW-75 | 75 | 7.5 | 12.41 | 2200*1400*1800 | 1750 | DN50 |
| 8.5 | 12.39 | 1750 | ||||
| 10.5 | 10.45 | 1750 | ||||
| FWW-90 | 90 | 7.5 | 16.48 | 2400*1700*1800 | 2300 | DN65 |
| 8.5 | 16.36 | 2300 | ||||
| 10.5 | 12.82 | 2200 | ||||
| FWW-110 | 110 | 7.5 | 20.45 | 2400*1700*1800 | 2800 | DN65 |
| 8.5 | 19.52 | 2800 | ||||
| 10.5 | 18.55 | 2600 | ||||
| FWW-132 | 132 | 7.5 | 21.99 | 2400*1700*1800 | 3200 | DN65 |
| 8.5 | 21.94 | 3200 | ||||
| 10.5 | 19.79 | 3000 |
Frequently Asked Questions
-
Q1: Are you a manufacturer or trading company? ▼A1: We are professional manufacturer with big modern factory in Shanghai, China. Both OEM & ODM service can be accepted.
-
Q2: Warranty terms of your machine? ▼A2: One year for the whole machine and two years for screw air end, except consumable spare parts. We provide technical support according to your needs.
-
Q3: Will you provide some spare parts of the machines? ▼A3: Yes. We provide spare parts for daily maintenance.
-
Q4: What voltage can you provide? ▼A4: We can support 220V/380V/400V/415V/440V/480V/570V/600V/1000V 50HZ/60HZ. Send your requirements to our sales manager and we will customize it for you.
-
Q5: How long will you take to arrange production? ▼A5: Delivery of standard goods within 7-10 working days, customization takes about 30 days.
-
Q6: How to pay? ▼A6: T/T, L/C, D/P, Western Union, Apple pay, Google pay, PAYPAL, Credit Card and so on. We also accept USD, RMB, EUR and other currencies.
-
Q7: Can you accept OEM/ODM orders? ▼A7: Yes, we have a professional design team, OEM/ODM orders are very welcome.
