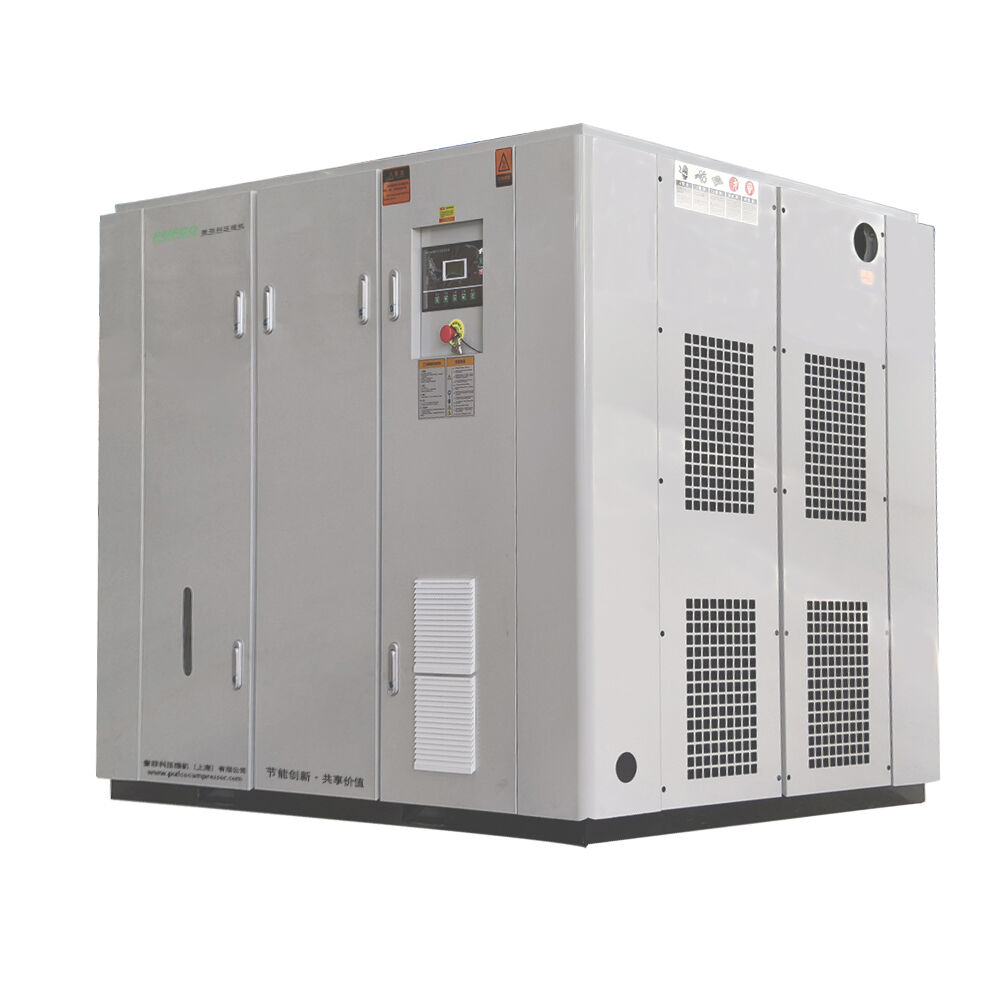

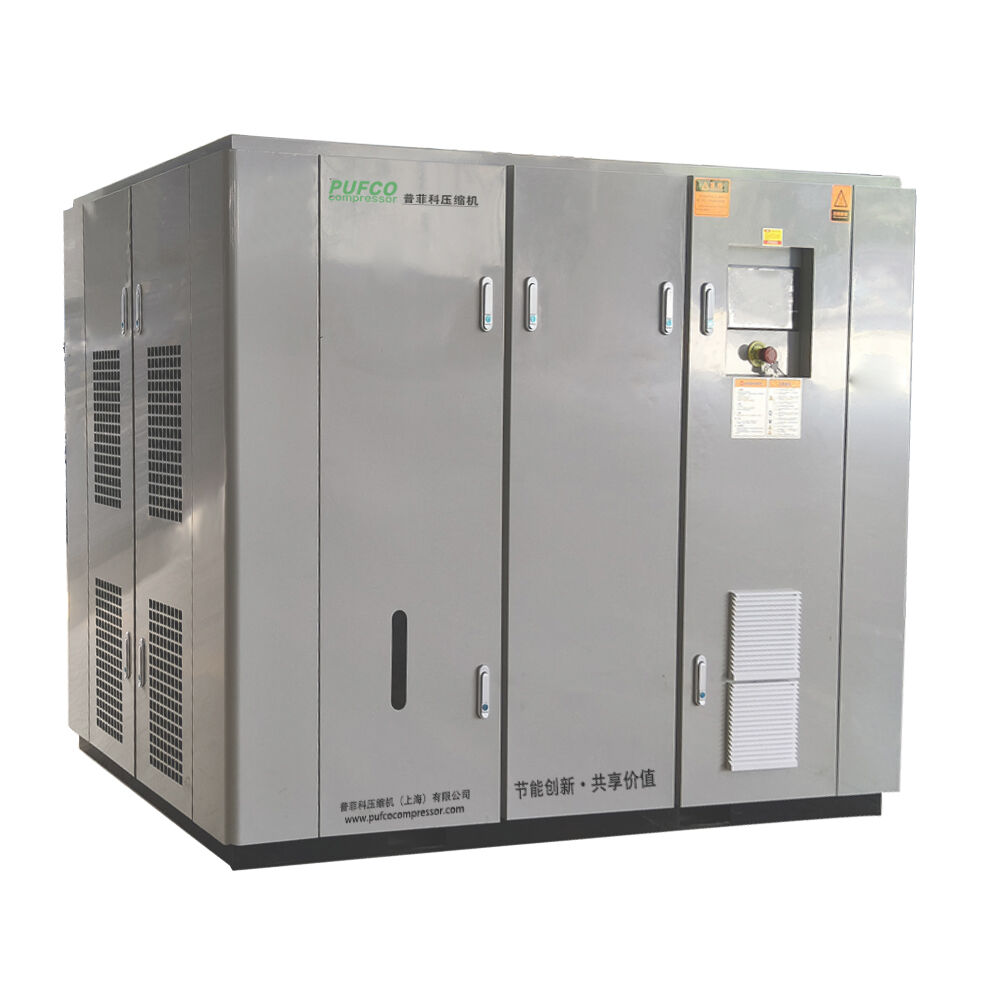

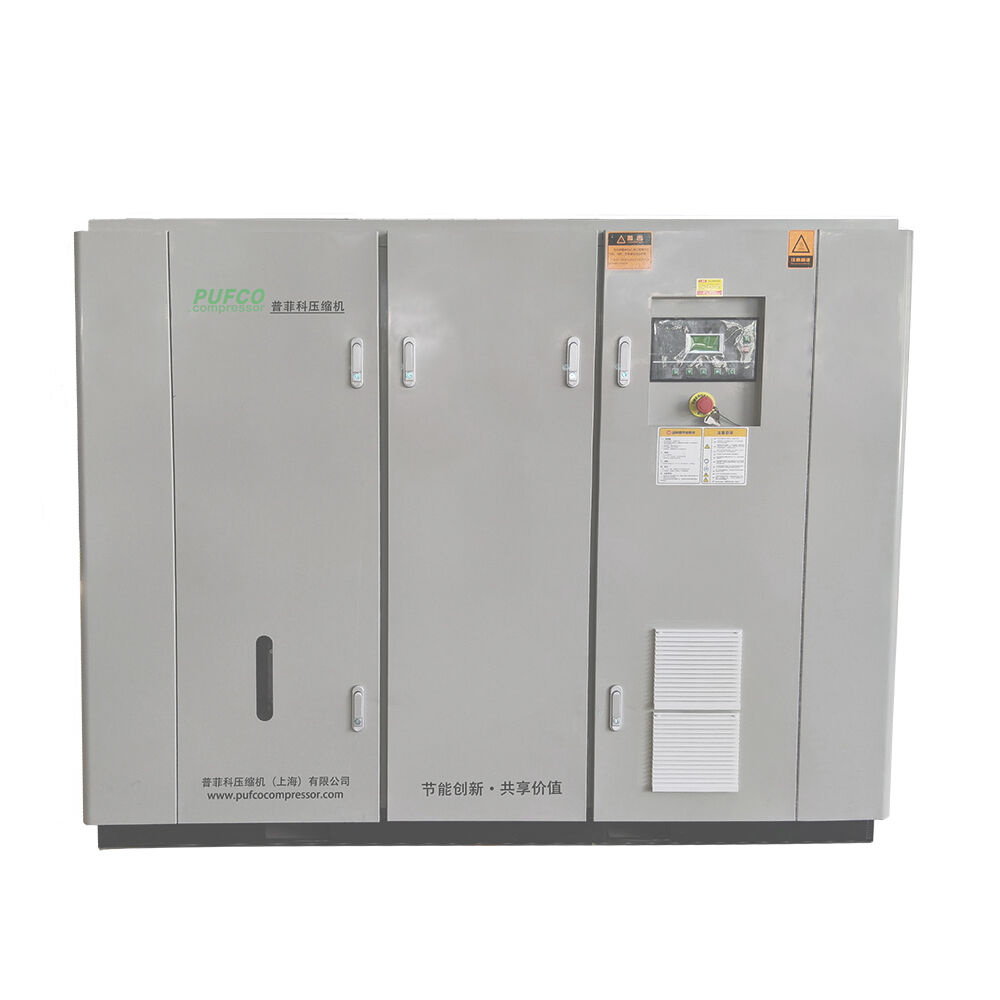

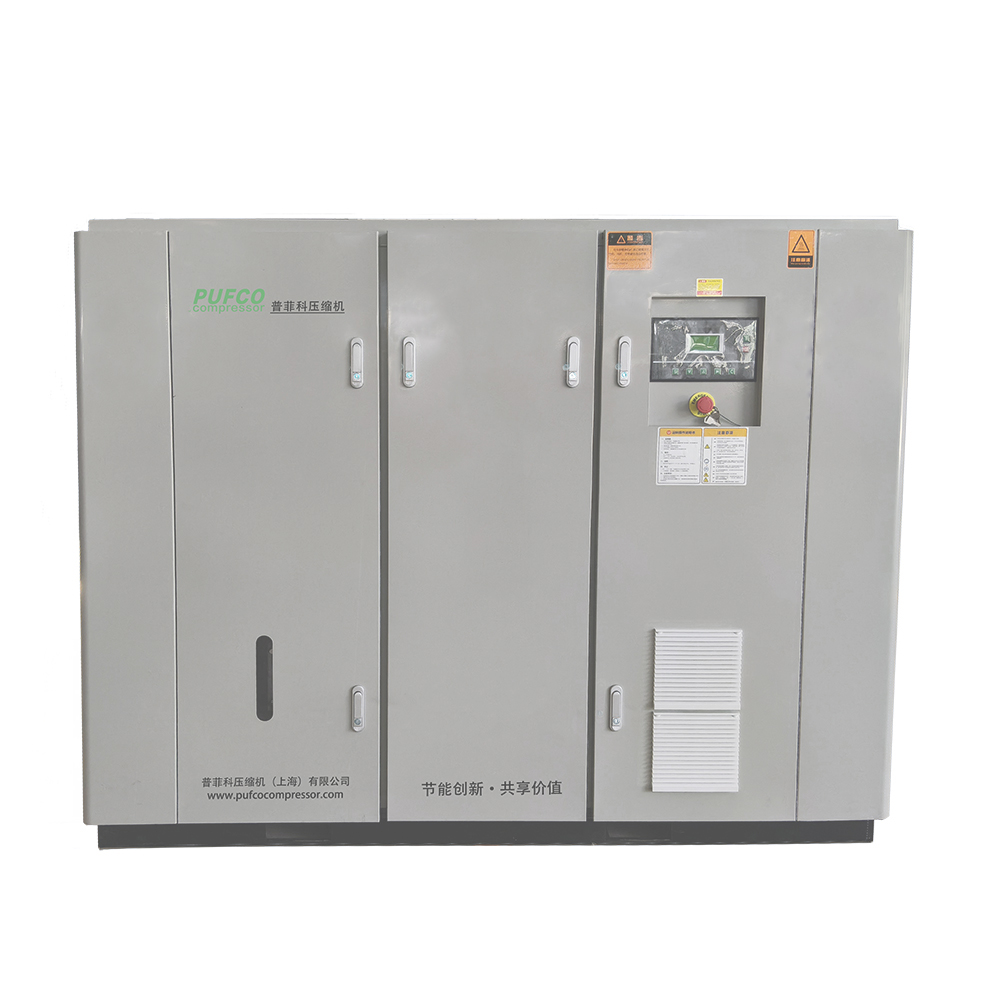

Single-stage Screw Air Compressor
Power：7.5-250kw
Working Pressure：0.75-1.3Mpa
Air Capacity：0.885m³/min-31.3m³/min
Voltage：380V, 110V, 220V,ets
- Overview
- Technical Parameters
- Application Scenarios
- Product Advantages
- FAQ

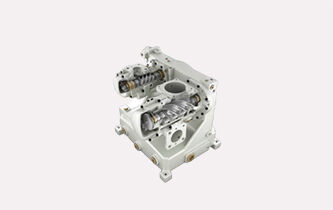

Host Air End
Imported mainframe ensures durability and high quality, providing suitable performance for the production of pure air

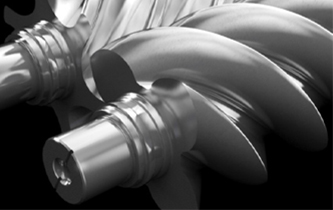

PUFCO Stainless steel screw
Molybdenum disulphide coating, high temperature resistant at 1400°C

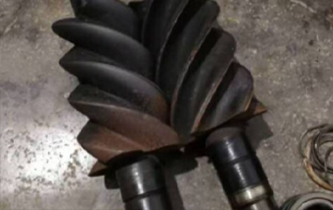

Other screws
Teflon coating, high temperature resistance 260°C。Rust corrosion and pitting can lead to rotor damage, inefficient operation and compressor failure.

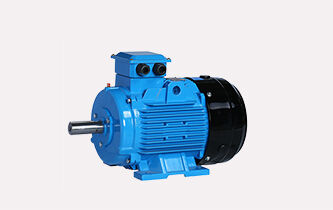

Electric motors
The use of high-efficiency motors (IE3/IE4/IE5), IP5, class B temperature rise test, suitable for dust, high temperature and other harsh environments

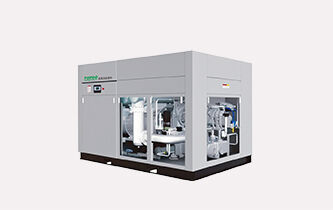

Material
Piping system uses 304 stainless steel, offering strong corrosion and aging resistance. Service life doubles compared to carbon steel models, ideal for chemical, food processing industries.
Control system
Dedicated control system, multi -channel pressure sensors and multi -channel temperature sensors to detect the operating status of the unit; more friendly user interface, more accurate and reliable control.
High precision frequency converter
Adopt vector control algorithm to achieve high precision motor control. Specialised design for the industry, increasing the customer's ease of use, and more stable performance
| Model | Power（kW） | Pressure（MPa） | Exhaust Vol. （m³/min） |
Size（mm） | Weight（kg） | Outlet Diameter |
| FA-7 | 7.5 | 0.75 | 1 | 850X700X920 | 150 | RP1/2 |
| 0.85 | 1.2 | |||||
| 1.05 | 0.855 | |||||
| FA-11 | 11 | 0.75 | 1.65 | 1000X750X1000 | 240 | RP3/4 |
| 0.85 | 1.5 | |||||
| 1.05 | 1.3 | |||||
| 1.3 | 1.1 | |||||
| FA-15 | 15 | 0.75 | 2.5 | 1000X750X1000 | 240 | RP3/4 |
| 0.85 | 2.3 | |||||
| 1.05 | 2.1 | |||||
| 1.3 | 1.5 | |||||
| FA-22 | 22 | 0.75 | 3.8 | 1180X850X1160 | 310 | RP1 |
| 0.85 | 3.6 | |||||
| 1.05 | 3 | |||||
| 1.3 | 2.8 | |||||
| FA-30 | 30 | 0.75 | 5.5 | 1350X850X1160 | 400 | RP1 |
| 0.85 | 5 | |||||
| 1.05 | 4.2 | |||||
| 1.3 | 3.2 | 1180X850X1160 | 310 | RP1 | ||
| FA-37 | 37 | 0.75 | 6.7 | 1500X1000X1390 | 510 | RP1 1/2 |
| 0.85 | 6.2 | |||||
| 1.05 | 5 | |||||
| 1.3 | 5 | |||||
| FA-45 | 45 | 0.75 | 8.5 | 1500X1000X1390 | 670 | RP1 1/2 |
| 0.85 | 8 | |||||
| 1.05 | 7.6 | |||||
| 1.3 | 6.2 | 1500X1000X1390 | 510 | RP1 1/2 | ||
| FA-55 | 55 | 0.75 | 11.2 | 1900X1250X1560 | 1000 | RP2 |
| 0.85 | 10 | |||||
| 1.05 | 8.2 | |||||
| 1.3 | 7 | |||||
| FA-75 | 75 | 0.75 | 13.2 | 1900X1250X1560 | 1100 | RP2 |
| 0.85 | 12.6 | |||||
| 1.05 | 9.2 | |||||
| 1.3 | 8.9 | |||||
| FA-90 | 90 | 0.75 | 15.6 | 1900X1250X1560 | 1200 | RP2 |
| 0.85 | 15 | |||||
| 1.05 | 12.6 | |||||
| 1.3 | 11.9 | |||||
| FA-110 | 110 | 0.75 | 21.6 | 2300X1470X1840 | 1600 | RP2 1/2 |
| 0.85 | 20 | |||||
| 1.05 | 17.3 | |||||
| 1.3 | 15.5 | |||||
| FA-132 | 132 | 0.75 | 24.8 | 2300X1470X1840 | 1800 | RP2 1/2 |
| 0.85 | 23.2 | |||||
| 1.05 | 19.8 | |||||
| 1.3 | 19 | |||||
| FA-160 | 160 | 0.75 | 29.6 | 2300X1470X1840 | 2000 | RP2 1/2 |
| 0.85 | 27.6 | |||||
| 1.05 | 23.2 | |||||
| 1.3 | 23.2 | |||||
| FA-185 | 185 | 0.75 | 31.6 | 2540X1640X1840 | 2600 | RP2 1/2 |
| 0.85 | 30.4 | |||||
| 1.05 | 27.6 | |||||
| 1.3 | 26 | |||||
| FA-220 | 220 | 0.75 | 38.8 | 3200X1980X2150 | 3600 | DN100 |
| 0.85 | 37.9 | |||||
| 1.05 | 30.4 | |||||
| 1.3 | 28.6 | |||||
| FA-250 | 250 | 0.75 | 42.5 | 3200X1980X2150 | 3800 | DN100 |
| 0.85 | 40.5 | |||||
| 1.05 | 34.3 | |||||
| 1.3 | 31.3 |
General manufacturing, energy and power industry, healthcare and pharmaceuticals, food and beverage, construction and mining, textiles, paper manufacturing, shipbuilding and marine engineering, environmental protection.
High-precision air end
High-precision rotors provide greater stability. Stable gas production and longer life.
Specialised Control System
Specialised control system for air compressor, including multiple pressure sensors and temperature sensors, more accurate detection of the operating status of the unit.
Reasonable Zoning
Separation design of hot and cold zones, no hot zone inside the unit, the electrical components are in the low-temperature zone, long service life; reduce maintenance costs.results in lower costs.
Quiet Operation
There is special flame retardant sound deadening cotton inside to reduce the noise of the unit and provide a quiet using environment.
Durable Design
Robust construction with corrosion-resistant components ensures long-term reliability even in harsh conditions.
Extra-long Service
Up to 10 years warranty. Whenever and wherever you can find PUFCO, you can be sure to get the right service.
Frequently Asked Questions
-
Q1: Are you a manufacturer or trading company? ▼A1: We are professional manufacturer with big modern factory in Shanghai, China. Both OEM & ODM service can be accepted.
-
Q2: Warranty terms of your machine? ▼A2: One year for the whole machine and two years for screw air end, except consumable spare parts. We provide technical support according to your needs.
-
Q3: Will you provide some spare parts of the machines? ▼A3: Yes. We provide spare parts for daily maintenance.
-
Q4: What voltage can you provide? ▼A4: We can support 220V/380V/400V/415V/440V/480V/570V/600V/1000V 50HZ/60HZ. Send your requirements to our sales manager and we will customize it for you.
-
Q5: How long will you take to arrange production? ▼A5: Delivery of standard goods within 7-10 working days, customization takes about 30 days.
-
Q6: How to pay? ▼A6: T/T, L/C, D/P, Western Union, Apple pay, Google pay, PAYPAL, Credit Card and so on. We also accept USD, RMB, EUR and other currencies.
-
Q7: Can you accept OEM/ODM orders? ▼A7: Yes, we have a professional design team, OEM/ODM orders are very welcome.
