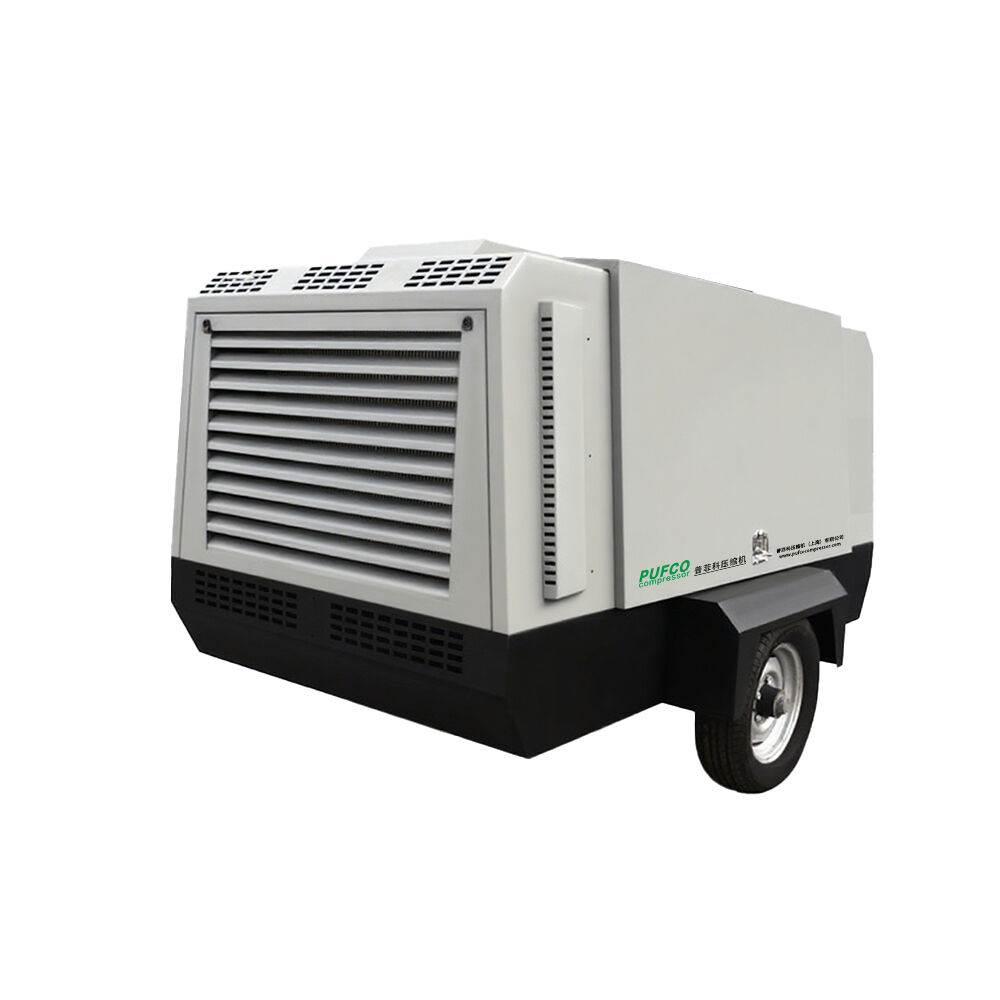

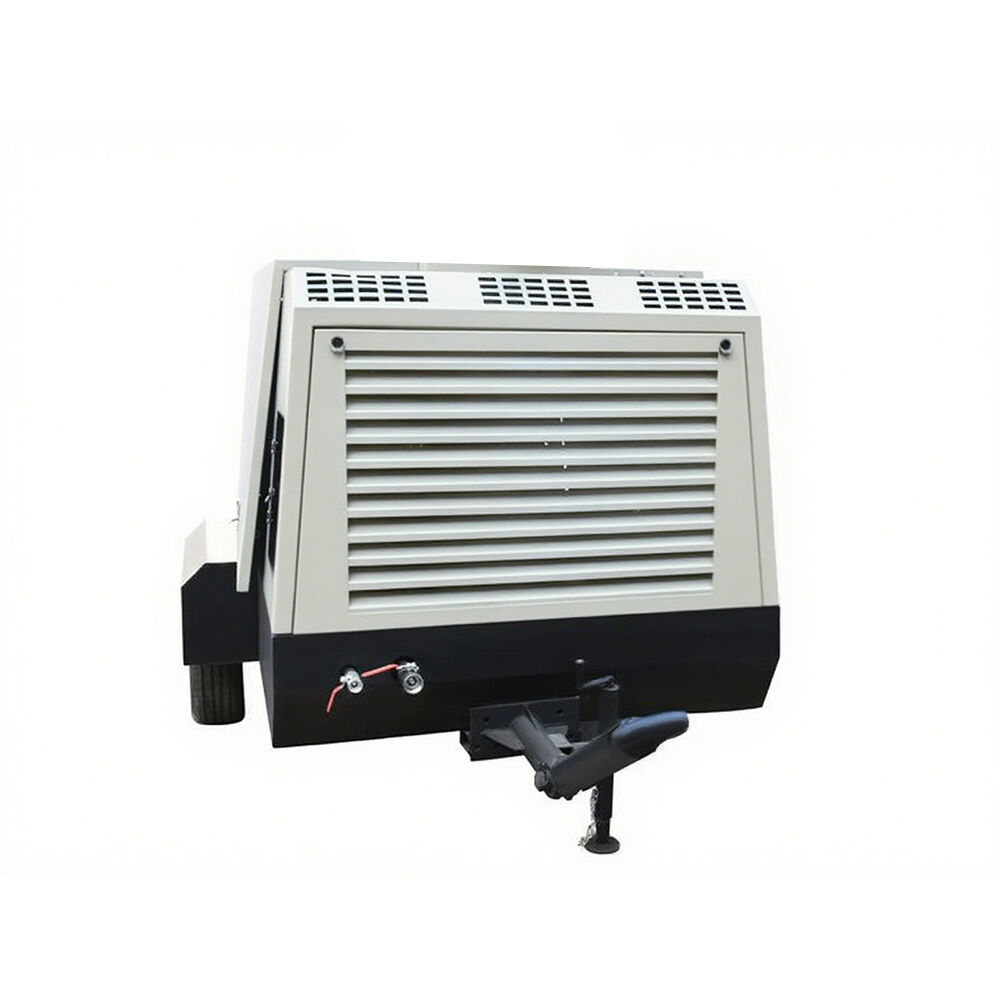

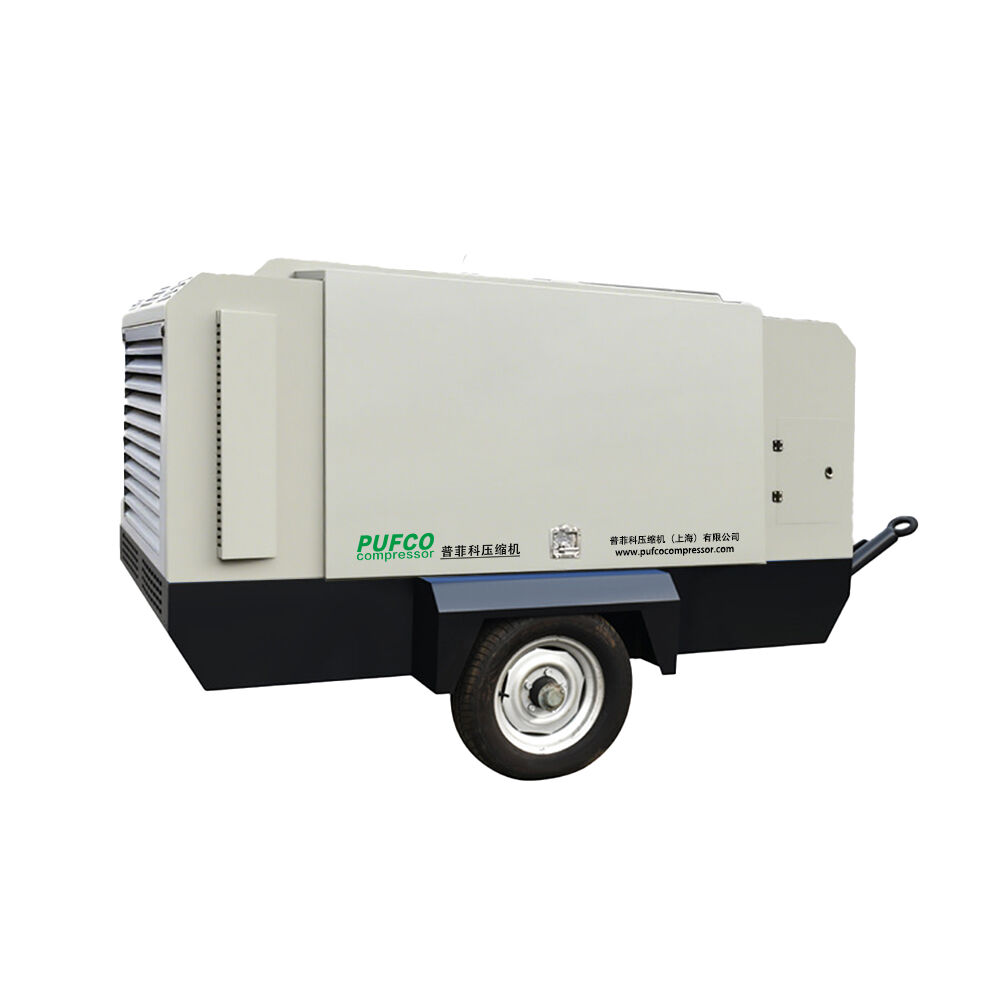

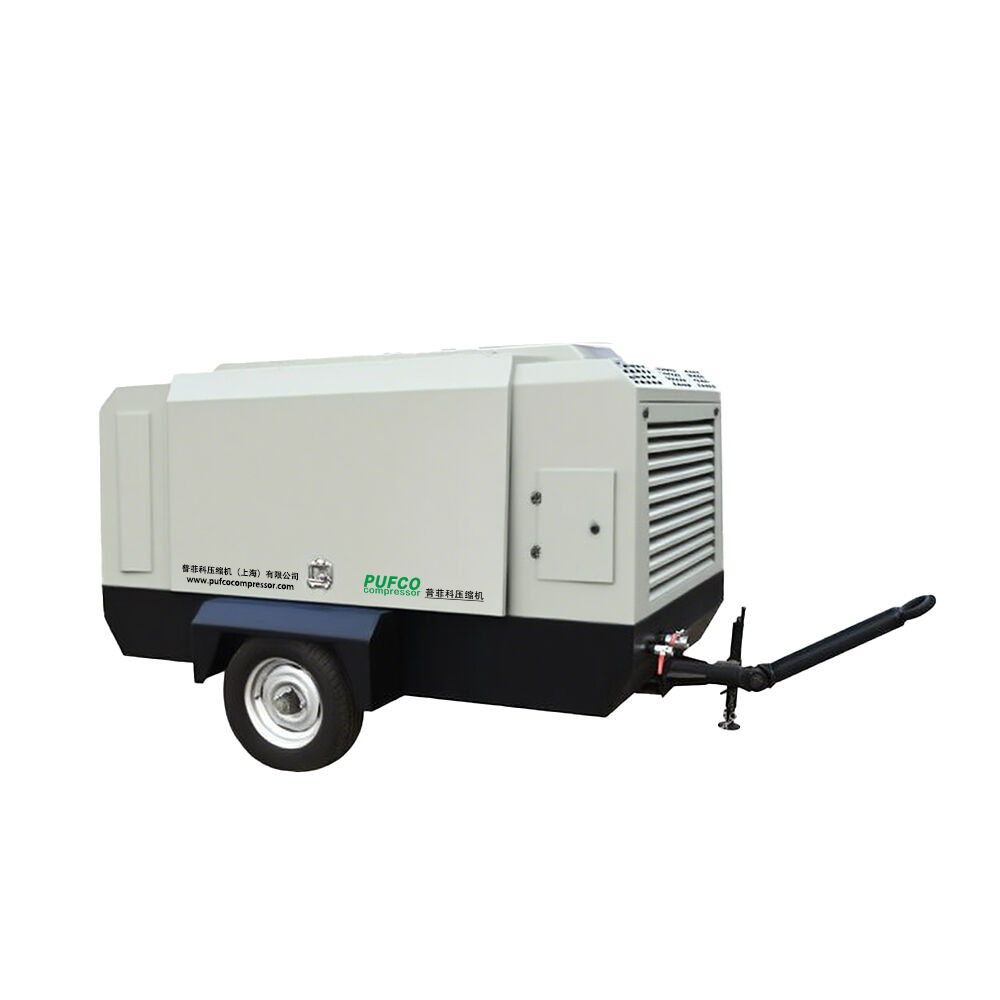

Diesel Portable Air Compressor
Product name：Diesel Portable Air Compressor
Power(KW)：22KW-563KW
Working Pressure：7bar -35bar
Air Capacity：3.2m³/min-47m³/min
MOQ：1 Set
Warranty：10 year
Customizable：OEM/ODM
Trade terms：EXW to DDP all support
Note:Contact us and we will provide you with detailed parameters as well as an exclusive offer.
- Overview
- Product Advantages
- Technical Parameters
- Application Scenarios
- FAQ
High quality screws
Adopting new 5:6 asymmetric rotor tooth profile, high rotor precision and good stability. Longer service life.
High load rotor/bearing
The use of Cummins diesel engines substantially extends machine life and reduces fuel
Electronic Equipment
The main electronic components are adopted Siemens and other brands, which greatly improves the service life: specialized wiring interfaces, LUO large story blog diagnostic and protection functions, so that the air compressor runs more reliably and saves electricity.
Microcomputer control system
Microcomputer intelligent monitoring air compressor exhaust pressure, exhaust temperature, diesel engine speed, oil pressure, water temperature, mailbox level and other operating parameters, with automatic alarm and shutdown protection function.
Cooling system
Extra large heat exchanger surface off the design, effectively preventing the machine from high humidity, reduce the high temperature and carbon phenomenon caused by high temperature. The inner wall puts the anti-corrosion treatment, can adapt to the more severe working conditions, prolongs the service life.
Suitable for Extreme Environment
In the cold zone can be optional fuel liquid heater, through the diesel engine cooling small circulation heating cylinder, cold extreme weather can still run well.
Comprehensive Monitoring
The equipment is equipped with intelligent management system, real-time monitoring of the operating state, and automatic shutdown in abnormal state.
Low Maintenance Costs
The side-opening design concentrates the parts requiring maintenance on one side of the machine, providing the best view and enough operating space for maintenance and reducing downtime costs.
High Reliability
Reliable components certified by practice, with constant pressure and stable flow; able to realize continuous automatic adjustment of displacement, high efficiency and energy saving.
Extra-long Service
Press and hold the start button to start. The exhaust port of the unit is ready to use and is equipped with different sizes of ports, which are suitable for different size requirements of air-using equipment.
Extra-long Service
Up to 10 years warranty. Whenever and wherever you can find PUFCO, you can be sure to get the right service.
| Model | Power | Exhaust Vol. (m3/min) |
Pressure (bar) |
| FACY-3.2/8 | 33kW | 3.2 | 8 |
| FACYBT-3.5/8 | 22kW | 3.5 | 8 |
| FACY-4.5/7 | 36.8kW | 4.5 | 7 |
| FACYL-5/8 | 36.8kW | 5 | 8 |
| FACY-5/8 | 41kW | 5 | 8 |
| FACY-7/15 | 90kW | 7 | 15 |
| FACY-9/7 | 59kW | 9 | 7 |
| FACY-10/8 | 76kW | 10 | 8 |
| FACY-10.5/10 | 88kW | 10.5 | 10 |
| FACY-11.3/8 | 97kW | 11.3 | 8 |
| FACY-12/7 | 88kW | 12 | 7 |
| FACY-15/15 | 192kW | 15 | 15 |
| FACY-15-18G | 140kW | 15–18 | 15–12 |
| FACY-15/17 | 140kW | 15–17 | 18–12 |
| FACY-17/18 | 162kW | 17 | 18 |
| FACY-17/20 | 153kW | 17–20 | 18–15 |
| FACY-18/20 | 162kW | 18–20 | 18–14 |
| FACY-18/22 | 191kW | 18–22 | 22–17 |
| FACY-20/8 | 135kW | 20 | 8 |
| FACY-20-23G | 191kW | 20–23 | 18–15 |
| FACY-20-22G | 191kW | 20–22 | 22–18 |
| FACY-20-24G | 191kW | 20–24 | 19–15 |
| FACY-20-24G | 221kW | 20–24 | 22–18 |
| FACY-22/18 | 239kW | 22 | 18 |
| FACY-24/22 | 281kW | 24 | 22 |
| FACY-24-26G | 264kW | 24–26 | 22–18 |
| FACY-27-24G | 315kW | 27–24 | 18–25 |
| FACY-27-33G | 309kW | 27–33 | 25–18 |
| FACY-29/20 | 354kW | 29 | 20 |
| FACY-29/23 | 298kW | 29 | 23 |
| FACY-29-32G | 298kW | 29–32 | 17–23 |
| FACY-30-26G | 410kW | 30–26 | 22–34 |
| FACY-30-35G | 418kW | 30–35 | 35–25 |
| FACY-31-35G | 298kW | 31–35 | 25–18 |
| FACY-31/24 | 410kW | 31 | 24 |
| FACY-34-41G | 563kW | 34–41 | 34–25 |
| FACY-35-38G | 410kW | 35–38 | 25–20 |
| FACY-36-41G | 418kW | 36–41 | 30–20 |
| FACY-42-47G | 563kW | 42–47 | 25–18 |
| FACY-28/21G | 315kW | 28 | 21–22 |
| FACY-20/20G | 221kW | 20 | 20–21 |
| FACY-29.5/19G | 315kW | 29.5 | 19–20 |
| FACY-21.5G | 221kW | 21.5 | 18–19 |
| FACY-31G | 315kW | 31 | 17–18 |
| FACY-24G | 221kW | 24 | 16–17 |

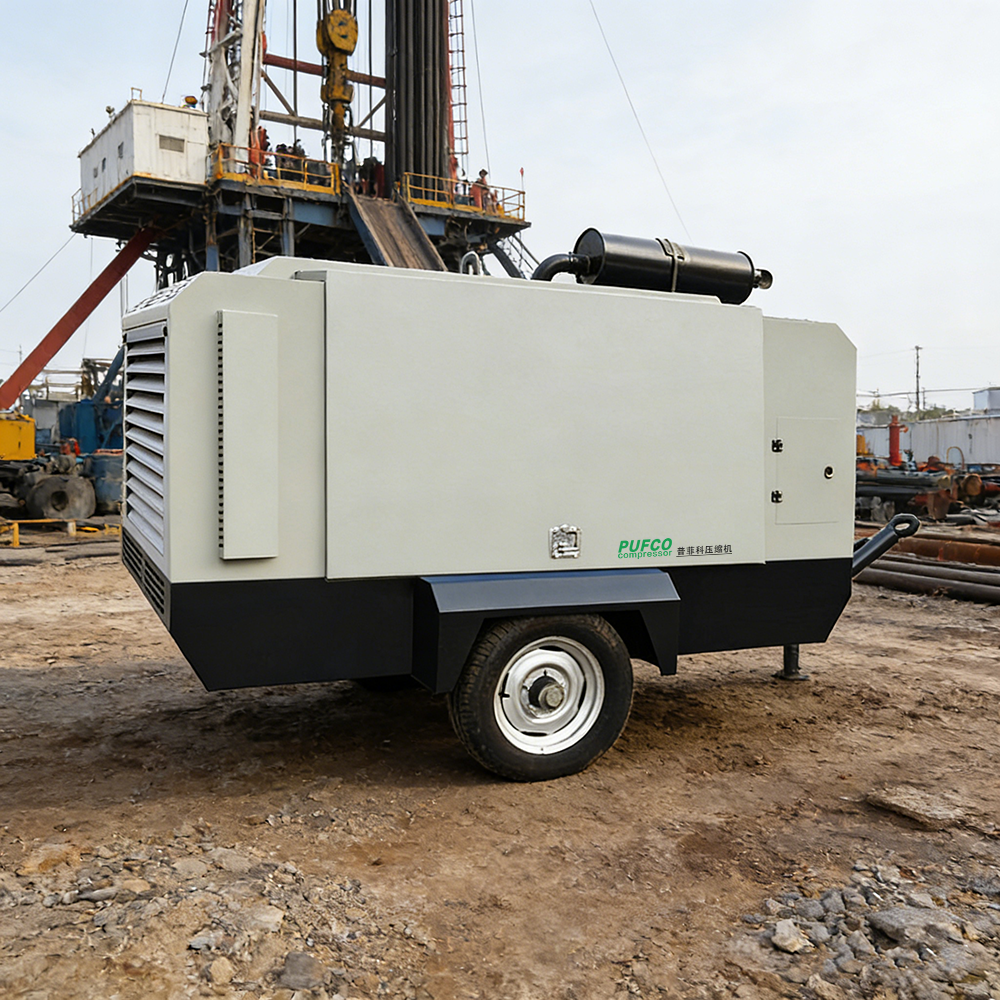

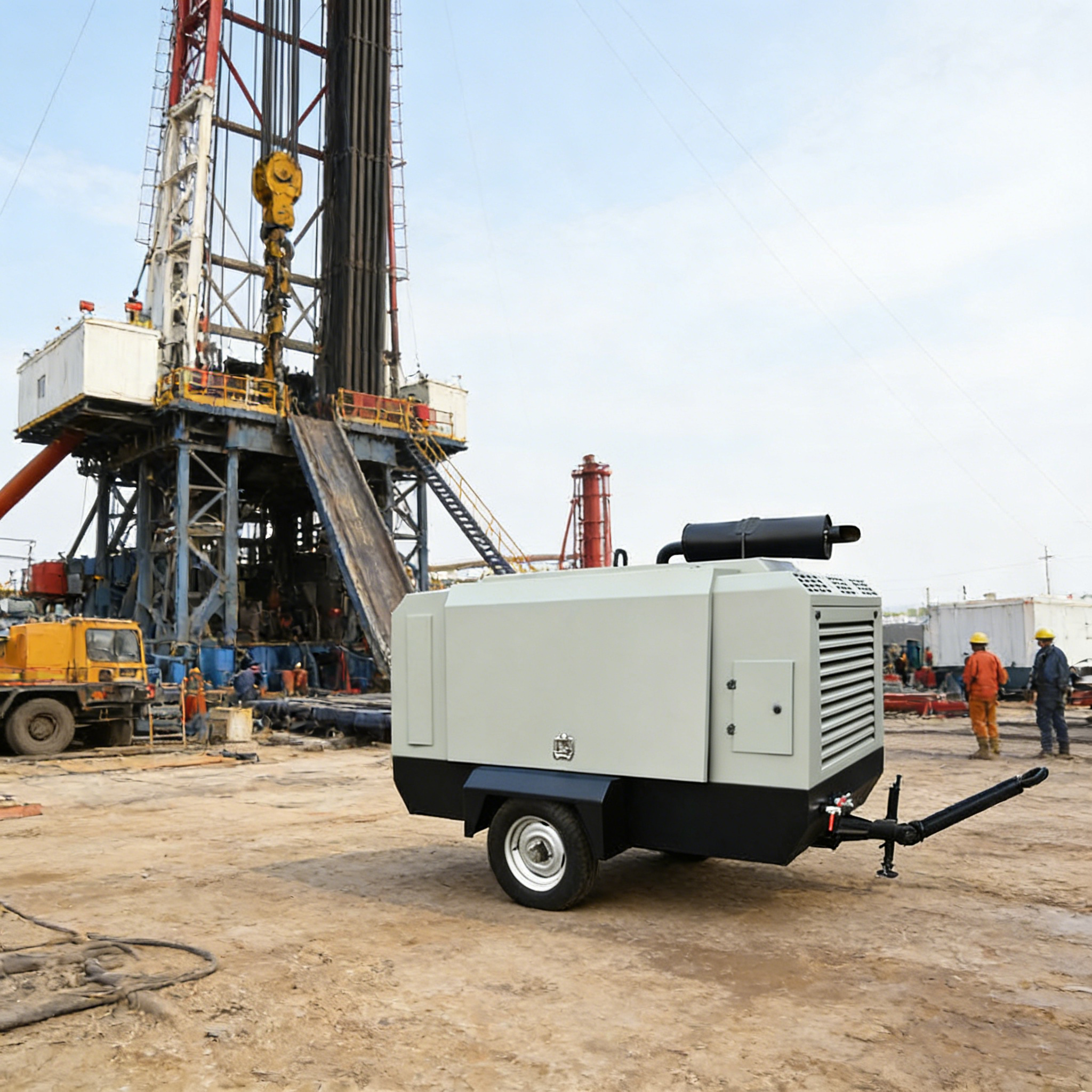

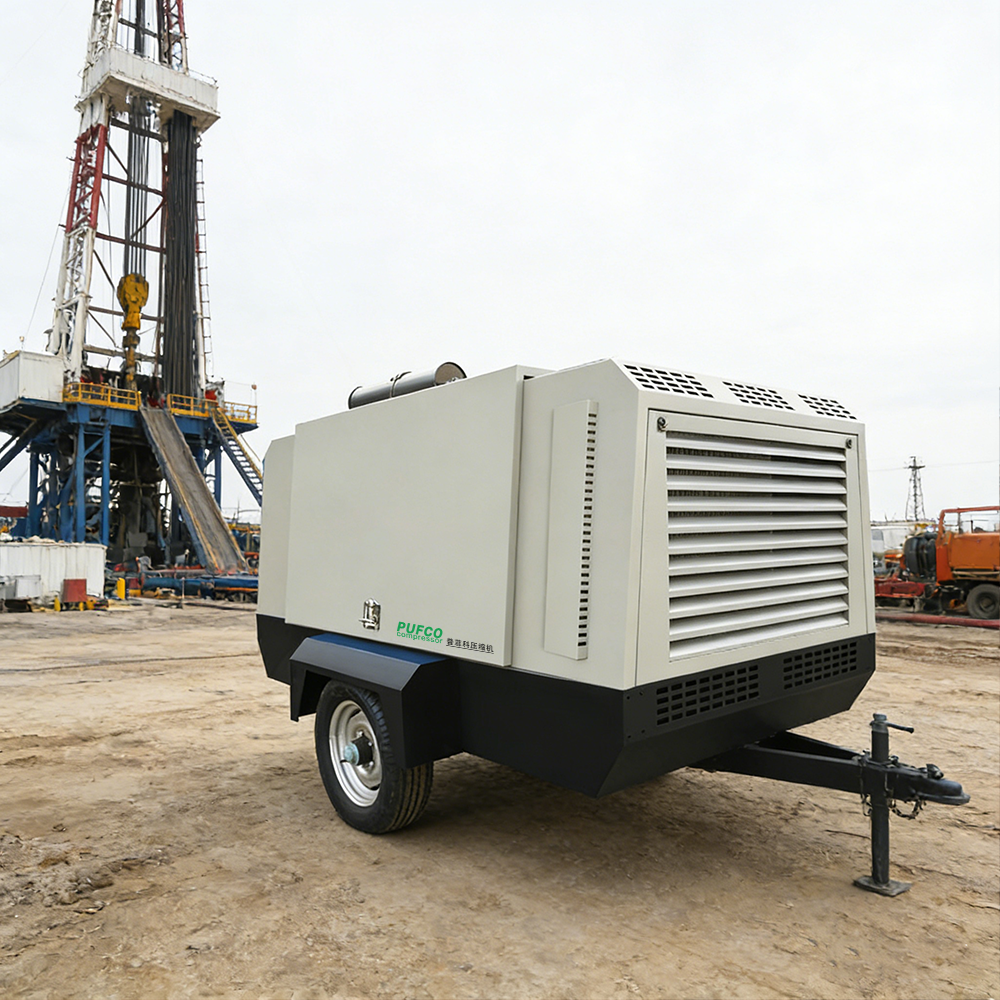

General manufacturing, energy and power industry, healthcare and pharmaceuticals, food and beverage, construction and mining, textiles, paper manufacturing, shipbuilding and marine engineering, environmental protection.
Frequently Asked Questions
-
Q1: Are you a manufacturer or trading company? ▼A1: We are professional manufacturer with big modern factory in Shanghai, China. Both OEM & ODM service can be accepted.
-
Q2: Warranty terms of your machine? ▼A2: One year for the whole machine and two years for screw air end, except consumable spare parts. We provide technical support according to your needs.
-
Q3: Will you provide some spare parts of the machines? ▼A3: Yes. We provide spare parts for daily maintenance.
-
Q4: What voltage can you provide? ▼A4: We can support 220V/380V/400V/415V/440V/480V/570V/600V/1000V 50HZ/60HZ. Send your requirements to our sales manager and we will customize it for you.
-
Q5: How long will you take to arrange production? ▼A5: Delivery of standard goods within 7-10 working days, customization takes about 30 days.
-
Q6: How to pay? ▼A6: T/T, L/C, D/P, Western Union, Apple pay, Google pay, PAYPAL, Credit Card and so on. We also accept USD, RMB, EUR and other currencies.
-
Q7: Can you accept OEM/ODM orders? ▼A7: Yes, we have a professional design team, OEM/ODM orders are very welcome.
