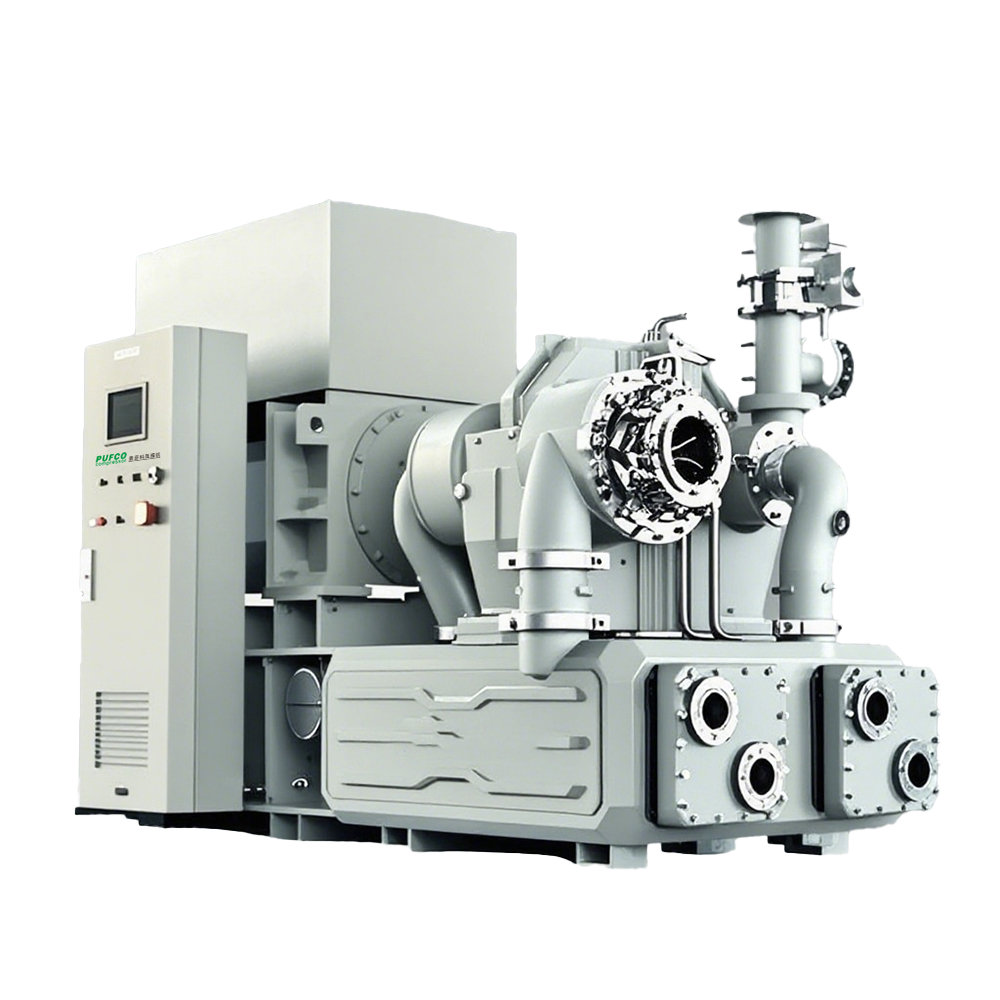

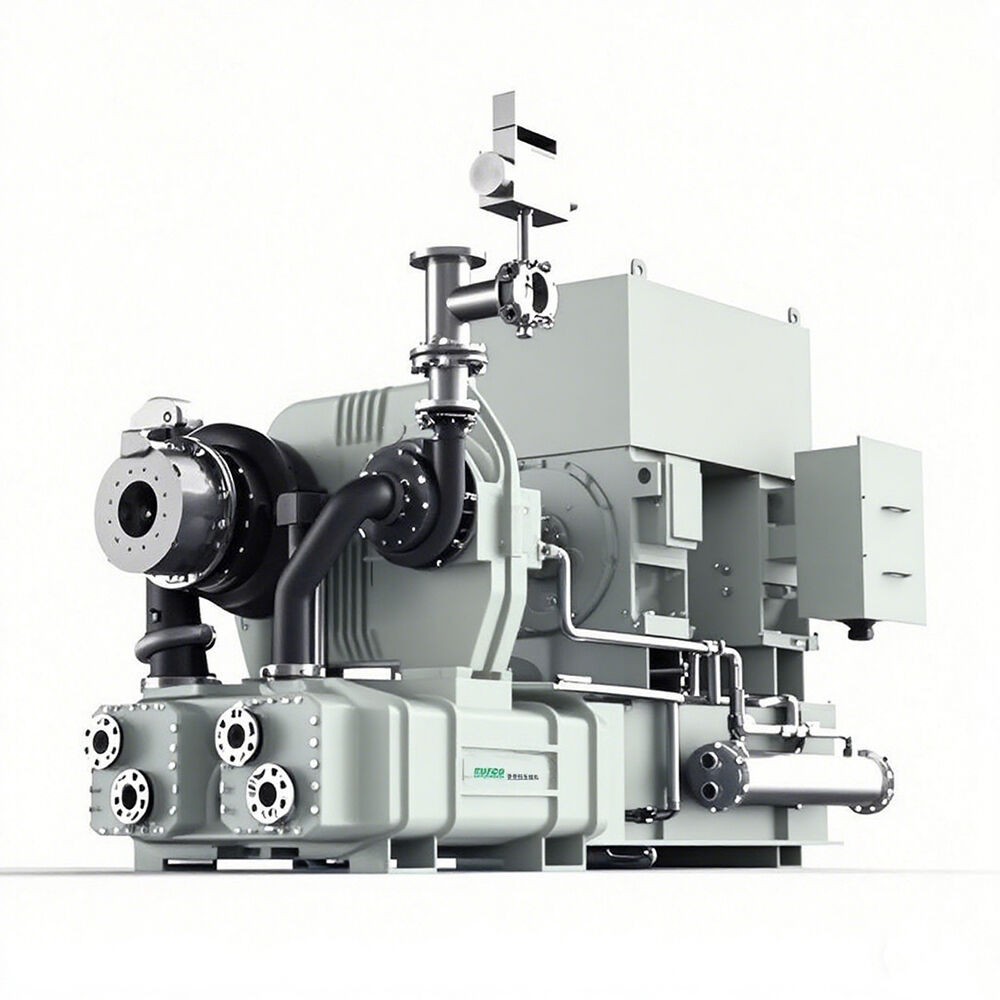

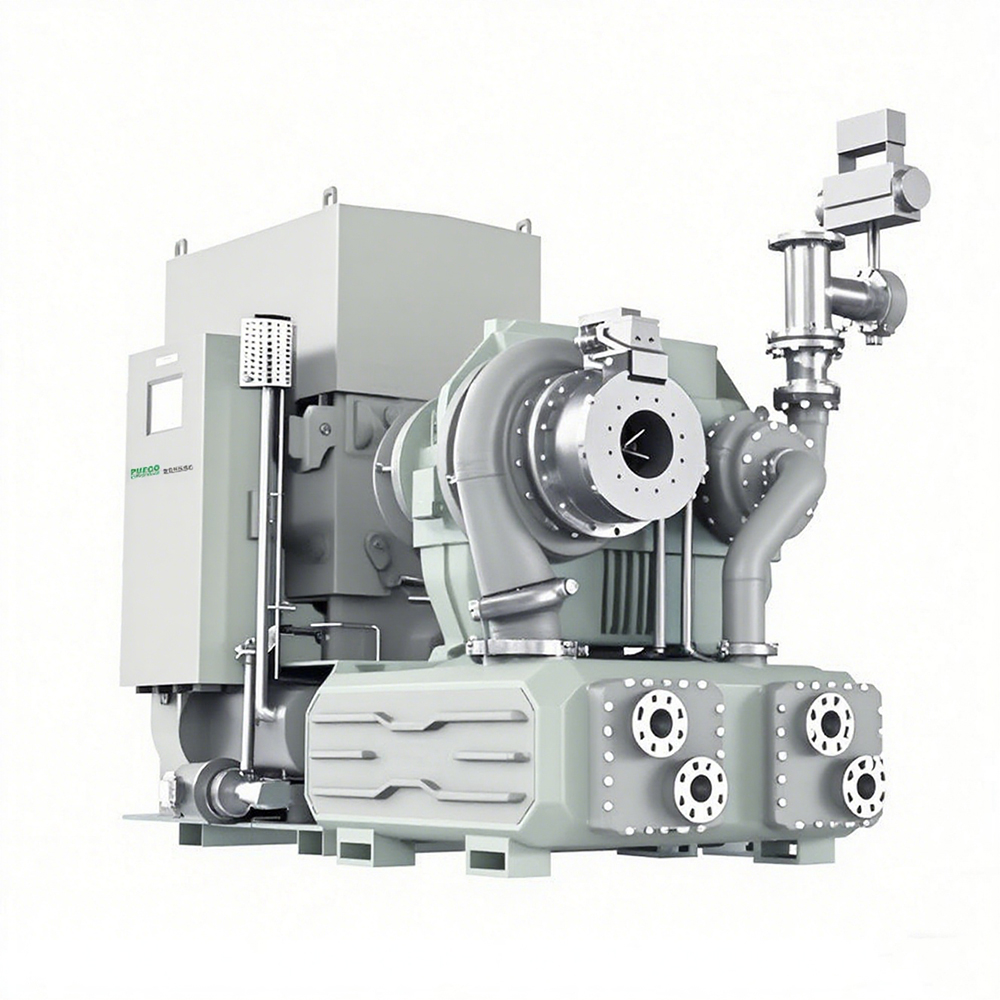

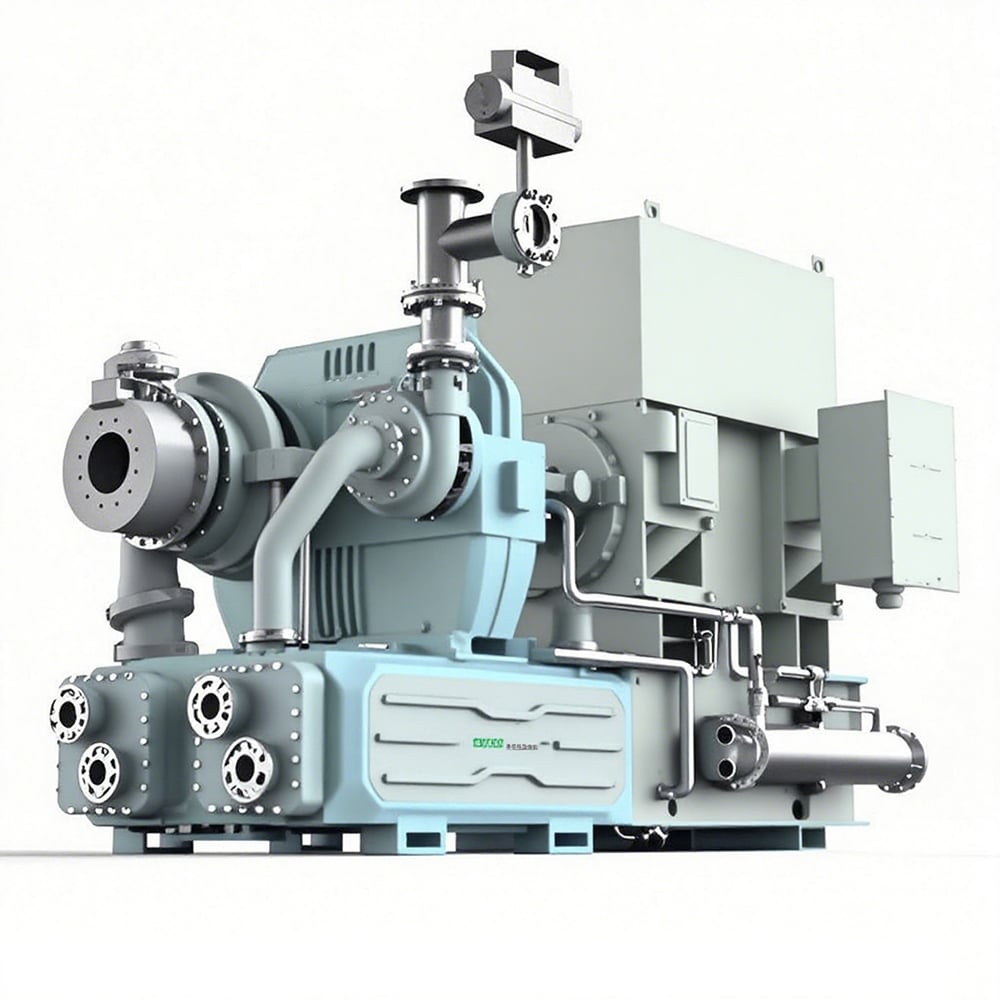

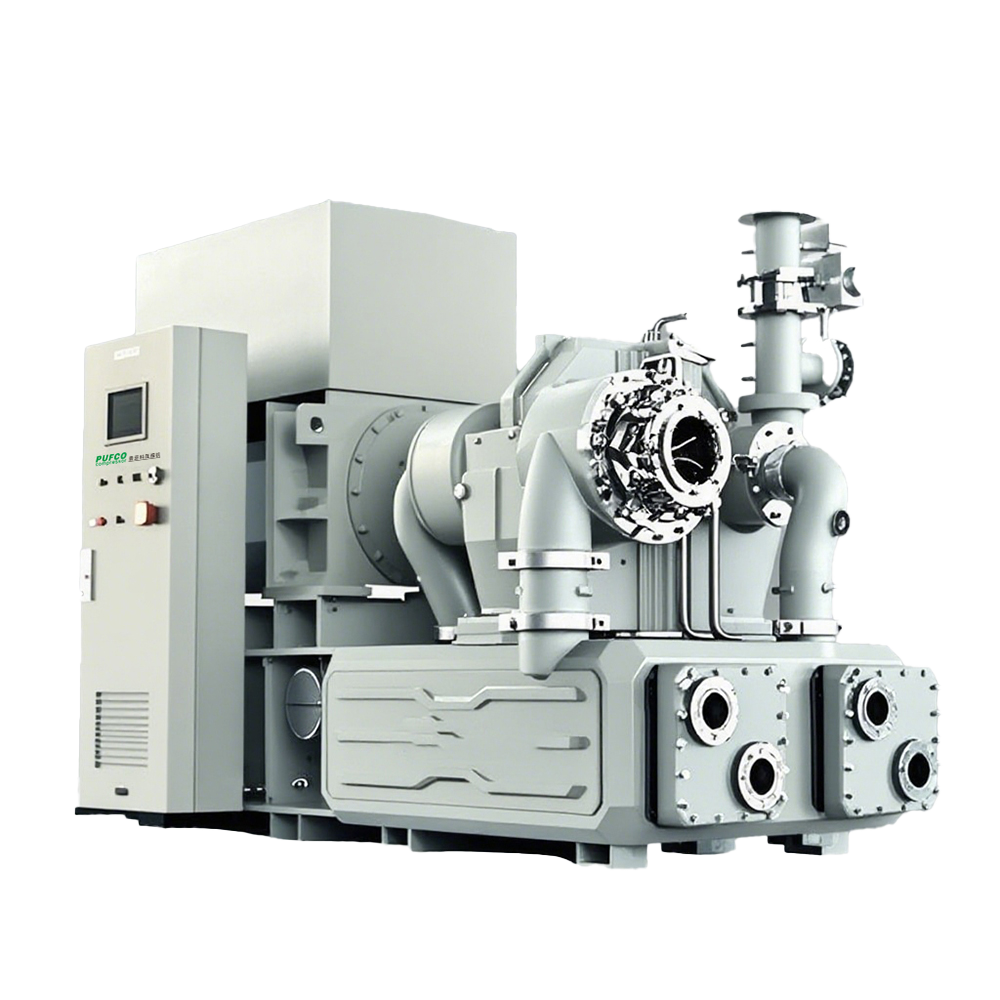

Centrifugal Air Compressor
Product name：Centrifugal Air Compressor
Power(KW)：132～14500kW
Working Pressure：0.6～25MPa
Air Capacity：25～3000m³/min
Medium：Air/Nitrogen
- Overview
- Product Advantages
- Technical Parameters
- Application Scenarios
- FAQ
1.Delivers large, continuous volumetric air flow for large-scale industrial applications.
2.High isentropic efficiency cuts down long-term operational energy costs.
3.Few moving parts ensure smooth, low-vibration, and quiet operation.
4.No wearing components like piston rings, minimizing maintenance frequency and costs.
5.Compact footprint saves valuable factory installation space.
6.Oil-free design available, ideal for air quality-sensitive industries (food, pharma, electronics).
7.Flexible capacity control adapts to varying air demand without efficiency loss.

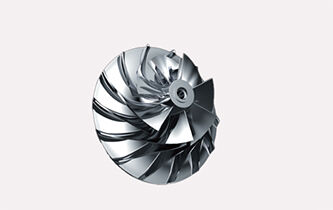

High efficiency pneumatic impeller
With PUFCO's design experience and extensive impeller database, the design is carried out with the aid of design software using highly efficient modelling software, CFD simulation and other means to ensure optimum interstage compression ratio distribution and stability and reliability, guaranteeing the superiority of the aerodynamic design.
High load rotor/bearing
The professionally designed rotor and bearings ensure that they can operate under reasonable oil film temperature, pressure and thickness, which effectively reduces the bearing power consumption, ensures a reasonable vibration value of the rotor, and ensures that the rated speed is set to run away from the critical speed, which enhances the stability of the whole machine.

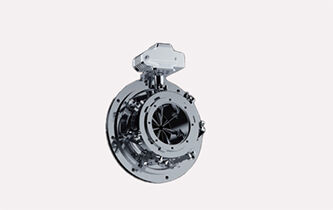

High Performance IGV
Motorised actuators with precise control of the inlet guide vane opening drive the winged stainless steel blades, which change the precession value of the intake air and increase the operating efficiency, allowing the IGV to save up to approx. 9% of energy consumption when compressed air demand is reduced.
Siemens PLC
Siemens PLC and touch screen. The operation interface supports multi-language switching, and the display can monitor all the parameters in the unit in real time, presenting the key operating parameters at all levels in real time in the form of operating curves and figures, automatic alarms and chain shutdown protection, and at the same time, it is equipped with anti-surge and surge prediction functions, which ensures the safety and reliability of the equipment operation.
Oil-free air
Our oil-free air compressors eliminate the risk of oil particles contaminating the air, extending the life of your equipment and maintaining product quality.
Smart Operation System
It can intelligently adjust according to the actual operation conditions and gas demand to ensure that the equipment。Is always in a state of high efficiency, energy saving and stable operation.
Less Energy Consumption
Efficient impeller and stage design for excellent Specific Energy Requirement (SER). it helps lower your electric bills significantly and has a positive impact on the environment.
Easy Maintenance
Customized coolers are suitable for various working conditions and they are easy for cleaning and maintenance.
Extra-long Service
Up to 10 years warranty. Whenever and wherever you can find PUFCO, you can be sure to get the right service.
| Model | Nominal Power (kw) | Discharge Pressure (bar) | Inlet Flow (m3/min) |
| FAX-50 | 90-260 | 3.5-10.3 | 15-48 |
| FAX-50H | 375-600 | 40 max | 40-48 |
| FAX-110 | 300-600 | 3.5-10.3 | 55-110 |
| FAX-170H | 1,700 max | 40 max | 130-170 |
| FAX-225 | 600-1300 | 3.5-10.3 | 110-225 |
| FAX-300 | 750-1700 | 2.5-14.5 | 135-300 |
| FAX-525H | 1100-4200 | 3.5-40 | 210-525 |
General manufacturing, energy and power industry, healthcare and pharmaceuticals, food and beverage, construction and mining, textiles, paper manufacturing, shipbuilding and marine engineering, environmental protection.
Frequently Asked Questions
-
Q1: Are you a manufacturer or trading company? ▼A1: We are professional manufacturer with big modern factory in Shanghai, China. Both OEM & ODM service can be accepted.
-
Q2: Warranty terms of your machine? ▼A2: One year for the whole machine and two years for screw air end, except consumable spare parts. We provide technical support according to your needs.
-
Q3: Will you provide some spare parts of the machines? ▼A3: Yes. We provide spare parts for daily maintenance.
-
Q4: What voltage can you provide? ▼A4: We can support 220V/380V/400V/415V/440V/480V/570V/600V/1000V 50HZ/60HZ. Send your requirements to our sales manager and we will customize it for you.
-
Q5: How long will you take to arrange production? ▼A5: Delivery of standard goods within 7-10 working days, customization takes about 30 days.
-
Q6: How to pay? ▼A6: T/T, L/C, D/P, Western Union, Apple pay, Google pay, PAYPAL, Credit Card and so on. We also accept USD, RMB, EUR and other currencies.
-
Q7: Can you accept OEM/ODM orders? ▼A7: Yes, we have a professional design team, OEM/ODM orders are very welcome.
