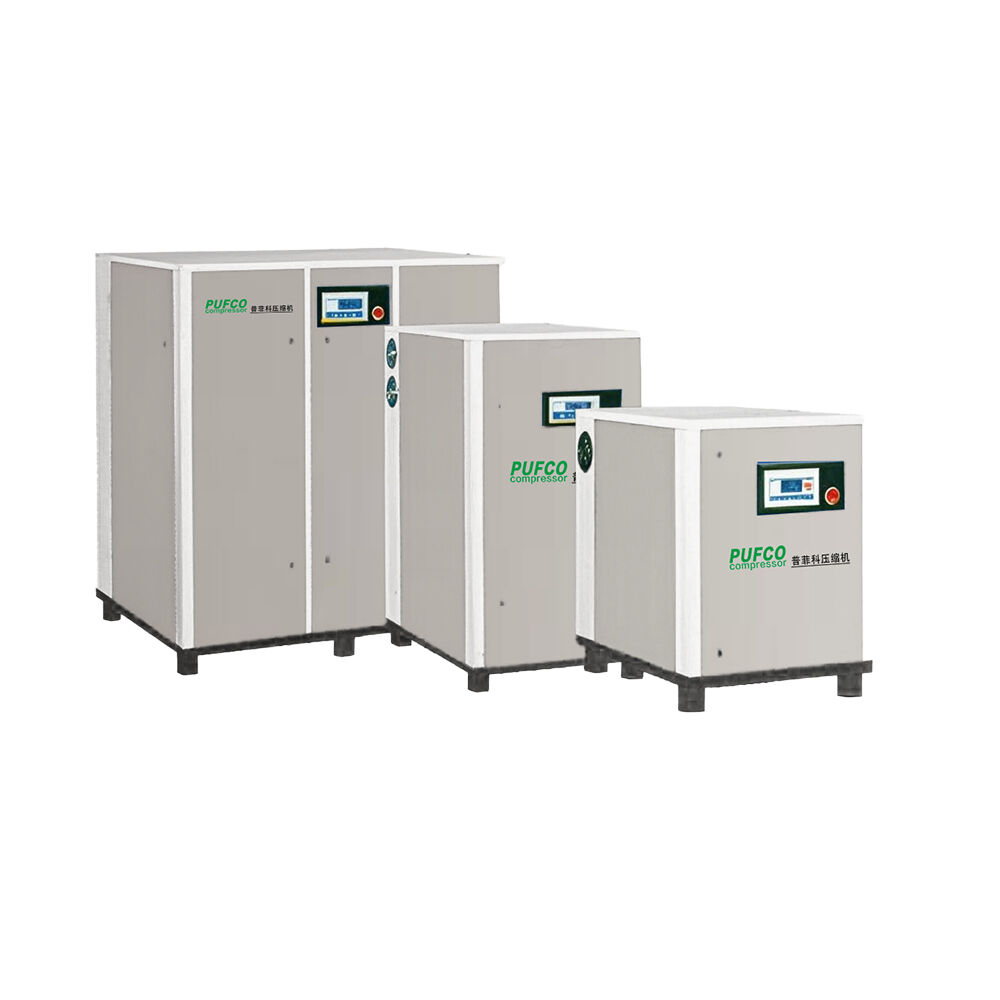

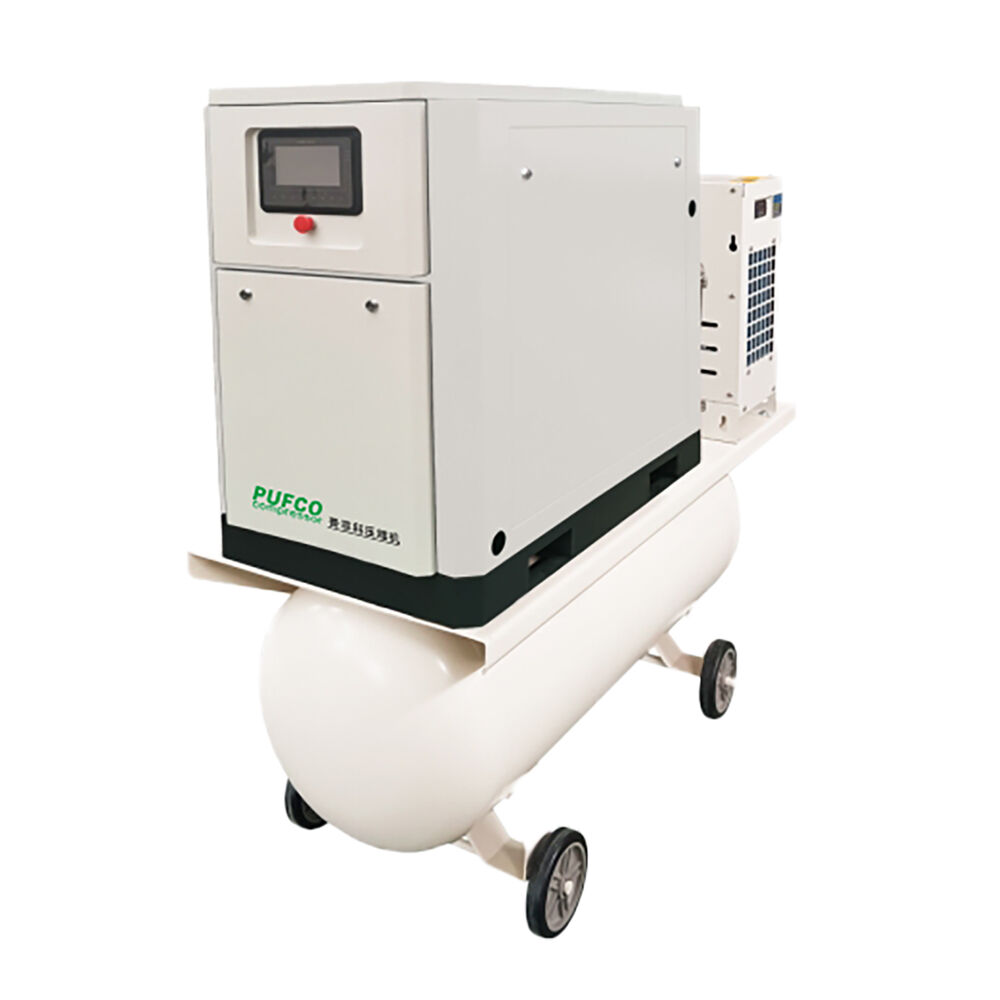

Scroll Oil-Free Air Compressors
Power：3.7 KW-37 KW
Working Pressure：0.7-1.0 Mpa
Exhaust Vol.：0.35-5.3 m3/min
- Overview
- Working Principle
- Technical Parameters
- FAQ
Oil-free scroll air compressors produce high-quality, oil-free compressed air. They are widely used in the food, medical, electronics, printing, chemical, precision spraying, and other industries.

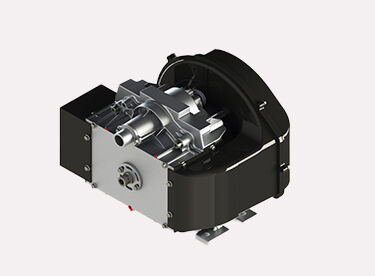

Scroll compressors
PUFCO customised scroll compressors offer a range of advantages, including compact size, low noise, light weight, minimal vibration, low energy consumption, long service life, continuous and stable air delivery, reliable operation, and clean air supply.
Electric motors
The use of high-efficiency motors (IE3/IE4/IE5), IP5, class B temperature rise test, suitable for dust, high temperature and other harsh environments
Cooling
Independent cooling system Ensures exhaust temperature: ≤ ambient temperature + 15°C

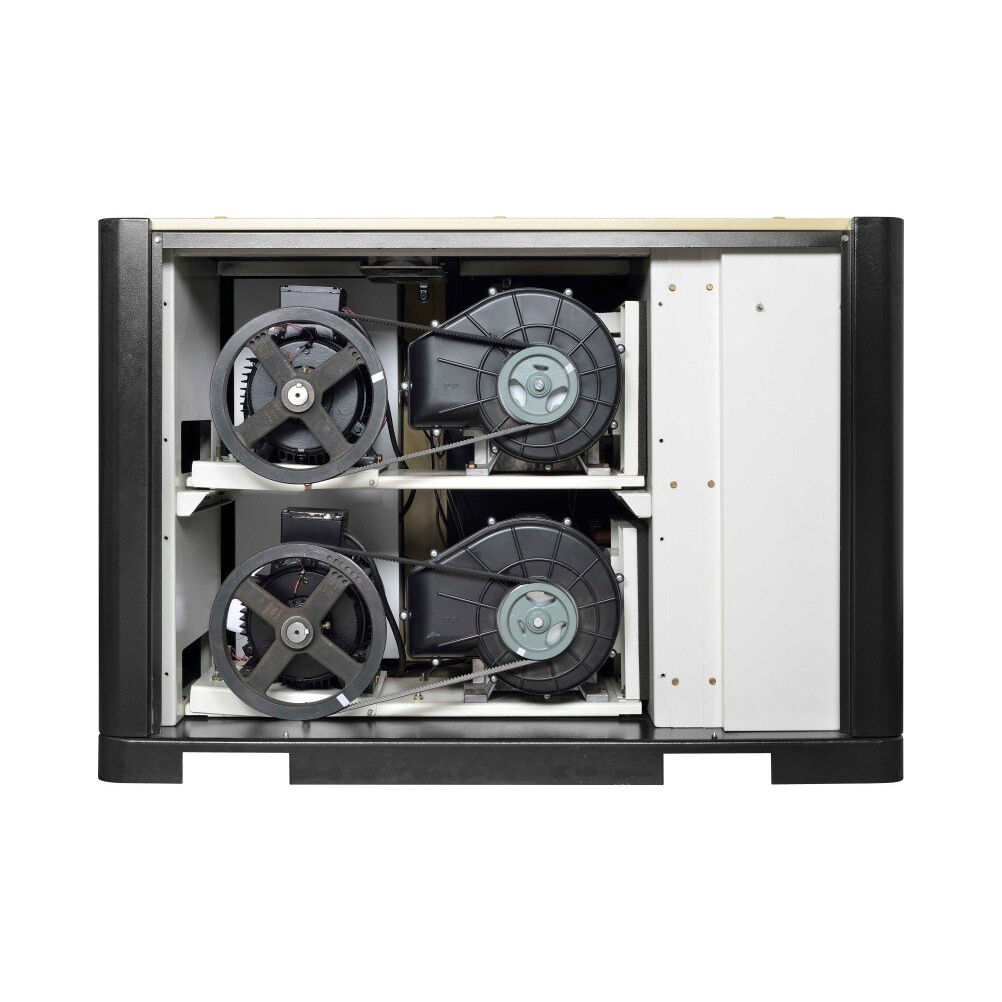

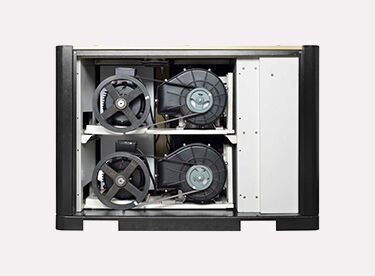

Modular design
Multiple compressor units are housed in a single machine cabinet. Based on actual air consumption, the controller precisely calculates the optimal number of units to operate automatically through a multi-stage control system, thereby avoiding unnecessary operation and achieving energy-saving effects.

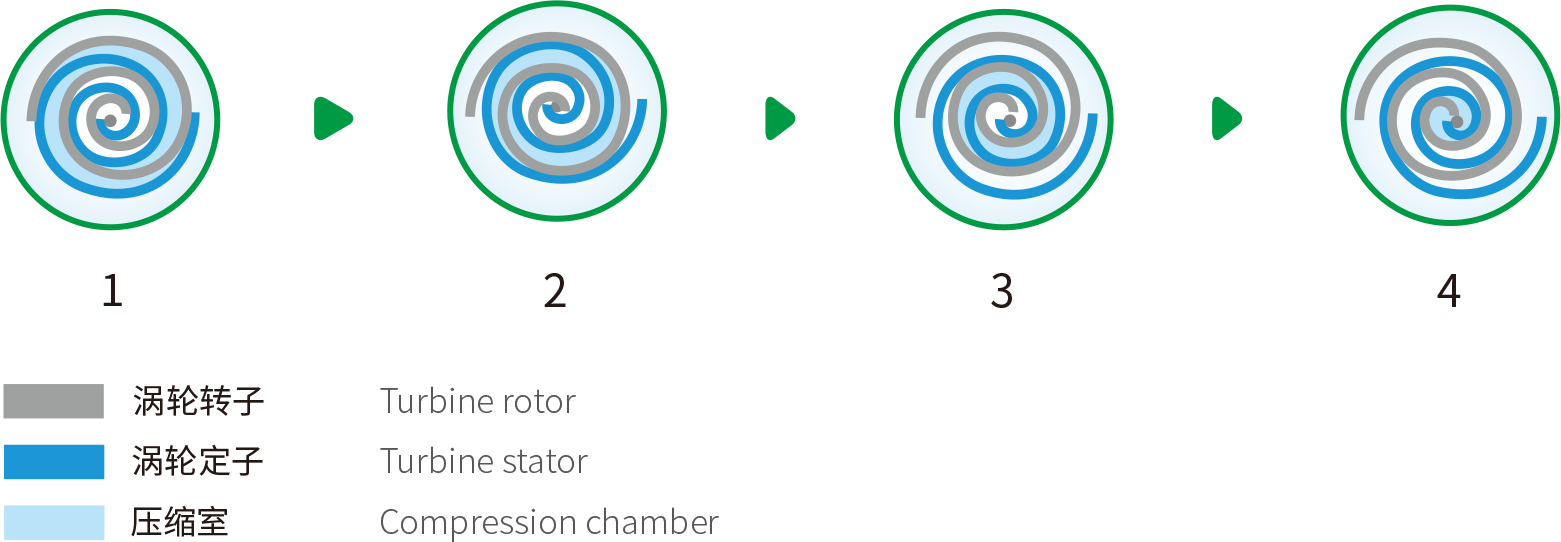

Principle of scroll compressors
The turbine rotor rotates in the sequence shown in Figures 1-2-3-4, air is drawn into the space between the turbine stator and turbine rotor, the volume of the crescent-shaped (point-symmetric) compression chamber decreases, and the compressed air is discharged through the outlet port in the centre section.
| Model | Power (KW) |
Pressure (Mpa) |
Exhaust Volume (m3/min) |
Size(mm) L*W*H |
Weight (kg) |
| FWW-3.0A | 3.7 | 0.7 | 0.45 | 680*1000*950 | 220 |
| 0.8 | 0.4 | ||||
| 1 | 0.35 | ||||
| FWW-7.5A | 7.5 | 0.7 | 0.85 | 680*1000*950 | 360 |
| 0.8 | 0.8 | ||||
| 1 | 0.7 | ||||
| FWW-11A | 11 | 0.7 | 1.3 | 720*1100*1650 | 430 |
| 0.8 | 1.25 | ||||
| 1 | 1.1 | ||||
| FWW-15A | 15 | 0.7 | 1.7 | 720*1100*1650 | 550 |
| 0.8 | 1.65 | ||||
| 1 | 1.4 | ||||
| FWW-18A | 18.5 | 0.7 | 2.3 | 720*1100*2020 | 680 |
| 0.8 | 2.2 | ||||
| 1 | 1.8 | ||||
| FWW-22A | 22 | 0.7 | 2.65 | 1450*1100*1650 | 900 |
| 0.8 | 2.56 | ||||
| 1 | 2.1 | ||||
| FWW-30A | 30 | 0.7 | 3.6 | 1450*1100*1650 | 1100 |
| 0.8 | 3.5 | ||||
| 1 | 2.8 | ||||
| FWW-37A | 37 | 0.7 | 5.3 | 1450*1100*2020 | 1300 |
| 0.8 | 5 | ||||
| 1 | 3.85 |
Frequently Asked Questions
-
Q1: Are you a manufacturer or trading company? ▼A1: We are professional manufacturer with big modern factory in Shanghai, China. Both OEM & ODM service can be accepted.
-
Q2: Warranty terms of your machine? ▼A2: One year for the whole machine and two years for screw air end, except consumable spare parts. We provide technical support according to your needs.
-
Q3: Will you provide some spare parts of the machines? ▼A3: Yes. We provide spare parts for daily maintenance.
-
Q4: What voltage can you provide? ▼A4: We can support 220V/380V/400V/415V/440V/480V/570V/600V/1000V 50HZ/60HZ. Send your requirements to our sales manager and we will customize it for you.
-
Q5: How long will you take to arrange production? ▼A5: Delivery of standard goods within 7-10 working days, customization takes about 30 days.
-
Q6: How to pay? ▼A6: T/T, L/C, D/P, Western Union, Apple pay, Google pay, PAYPAL, Credit Card and so on. We also accept USD, RMB, EUR and other currencies.
-
Q7: Can you accept OEM/ODM orders? ▼A7: Yes, we have a professional design team, OEM/ODM orders are very welcome.
