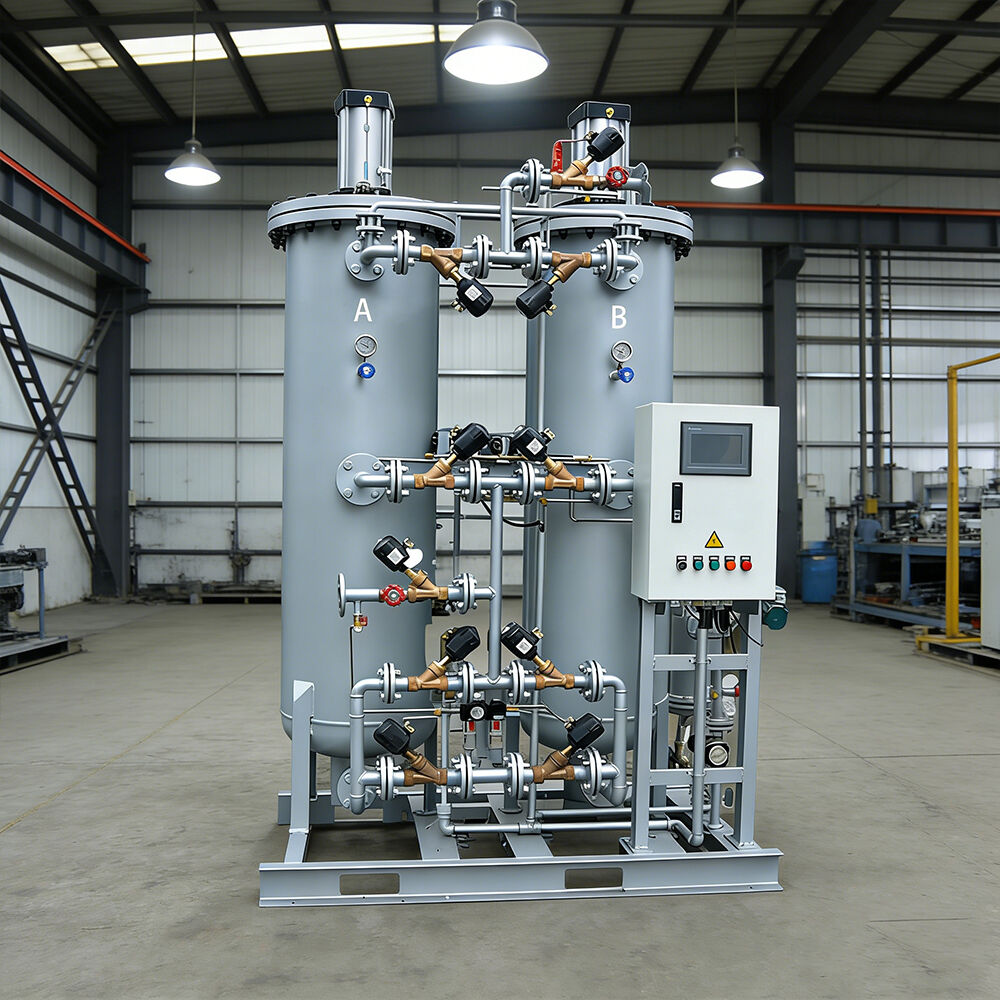

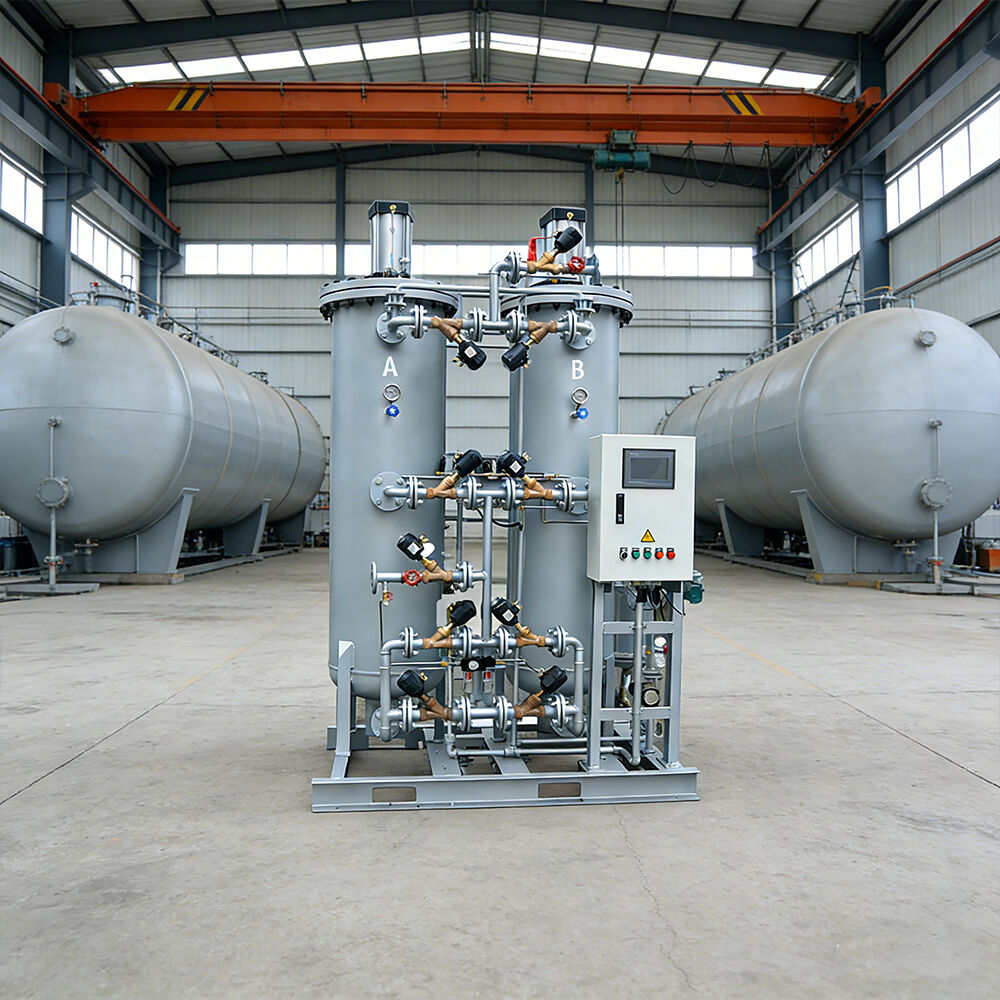

Working Principle
Pressure Swing Adsorption oxygen generation equipment employs zeolite molecular sieves as the adsorbent, utilising the principle of pressure swing adsorption to produce oxygen. Under specified pressure conditions, the selective adsorption properties of nitrogen on the zeolite molecular sieve surface are exploited. Specifically, the sieve adsorbs nitrogen to a far greater extent than oxygen. Process control is achieved via a PLC, which regulates the opening and closing of pneumatic valves. This enables alternating cycles between two or more towers (designated A and B). One tower undergoes pressurisation for adsorption and oxygen production, while the other tower undergoes depressurisation for desorption and regeneration. This process completes the separation of oxygen and nitrogen, yielding oxygen of the required purity.

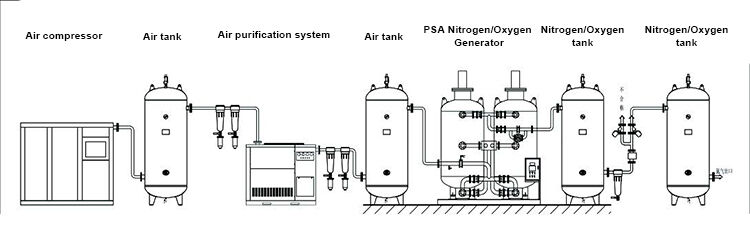

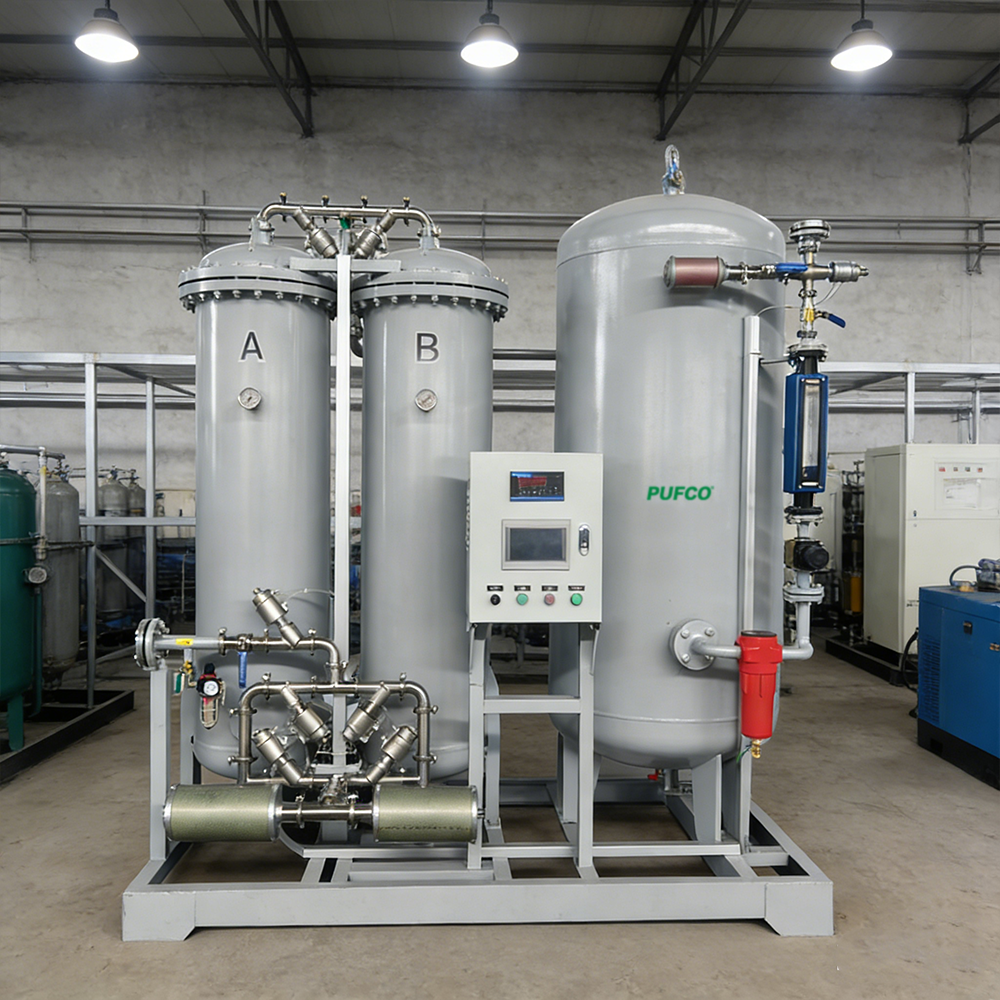

System Flow
Air is compressed by an air compressor before entering the compressed air purification system, where oil, water and impurities are removed. It then proceeds to the oxygen production system, where PSA (Pressure Swing Adsorption) technology adsorbs and removes nitrogen, achieving oxygen-nitrogen separation to produce oxygen. The oxygen flows into the oxygen buffer tank for stabilisation before entering the oxygen booster. Once pressurised to the rated pressure, it proceeds to the cylinder filling station. This station employs a one-active-one-standby configuration to ensure continuous oxygen cylinder filling operations.

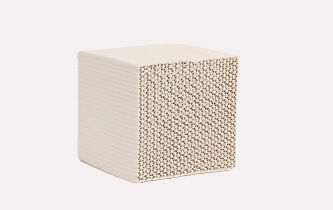

01 Zeo Litemolecular Sieve
PUFCO can select the best products according to the user's working conditions. It is characterized by stable performance, high recovery rate and long service life (more than 8 years of normal use).

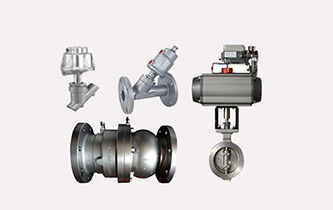

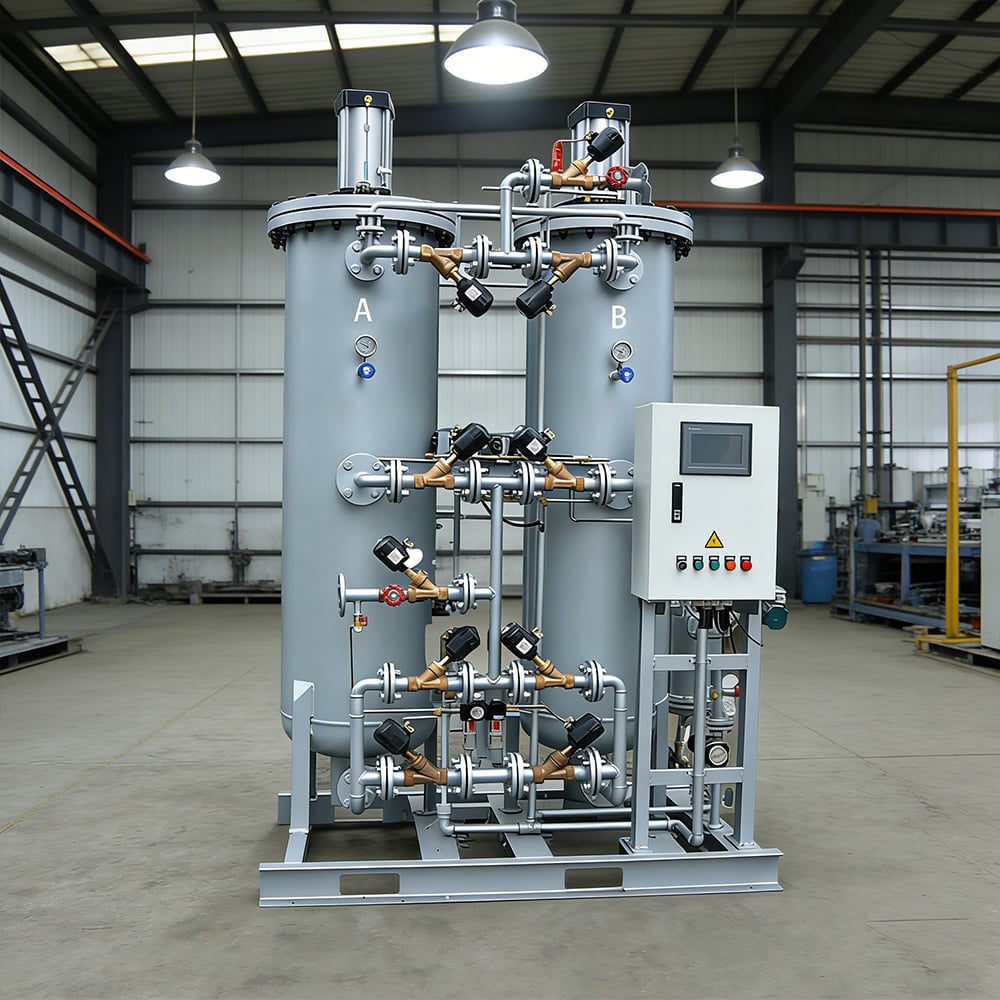

02 Pneumatic Valve
Valve selection of Germany GEMU, Germany Bürkert,Germany DREHMO GmbH,Qingdao Jingrui and other high-quality pneumatic angle seat valves and pipeline valves, the valve body average trouble-free work in 3 million times, the failure rate reduced by more than 50%.

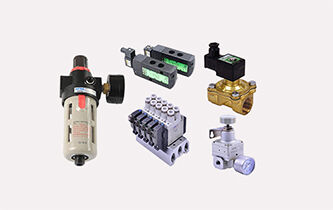

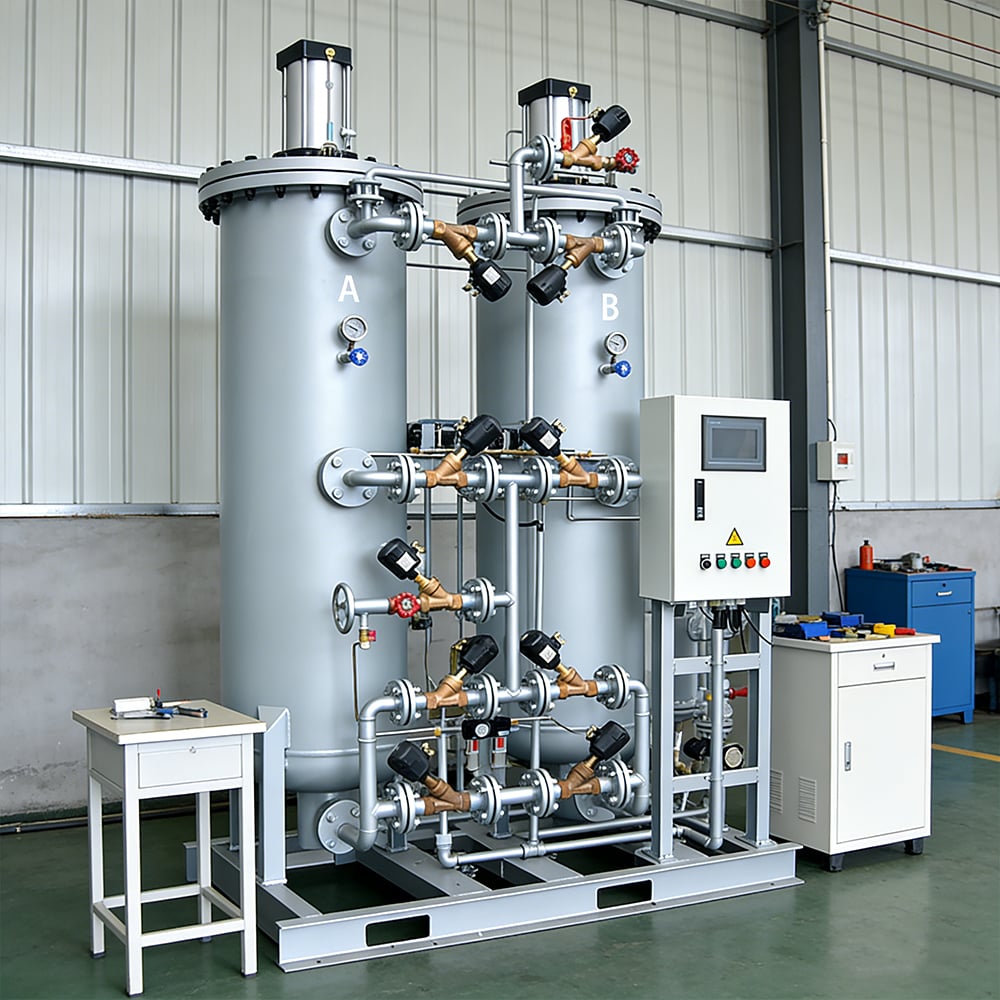

03 Auxiliary device
The pneumatic components are adopted from Taiwan Airtac, Japan SMC and American ASCO series; solenoid valves with action times up to 1,000,000 times without leakage; and reliable air source treatment components.

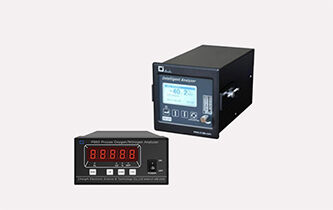

04 Process Instrumentation
Measurement accuracy up to 0.01%; reliable built-in imported electrode life greatly extended, can work continuously and reliably for more than 3 years, no need to replace the oxygen electrode.
05 Flowmeter
Carefully selected flowmeter products, stable quality, reliable performance, continuous trouble-free operation for more than three years.
06 Control system
Programmable controller using Germany Siemens PLC.

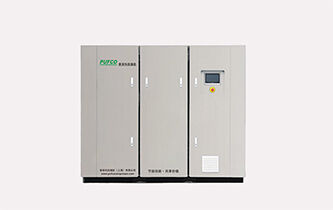

07 Air Compressor System
Adopting IP54 protection grade asynchronous industrial frequency motor, compared with IE2 motor, it has higher efficiency, fewer failure points and longer life. High power with two-stage compression air end, low noise and stable air supply.
| Model | Production (Nm³/h) |
Effective Gas Volume (Nm³/min) |
Purity | Pressure (Mpa) |
Dew Point (℃) |
Inlet Diameter (mm) |
Outlet Diameter (mm) |
| PBN-5 | 5 | 0.92 | 28–95.0% | 0.1–15Mpa | -42 to -70 | 25 | 15 |
| PBN-10 | 10 | 1.85 | 28–95.0% | 0.1–15Mpa | -42 to -70 | 32 | 15 |
| PBN-15 | 15 | 2.75 | 28–95.0% | 0.1–15Mpa | -42 to -70 | 32 | 15 |
| PBN-20 | 20 | 3.7 | 28–95.0% | 0.1–15Mpa | -42 to -70 | 40 | 15 |
| PBN-30 | 30 | 5.5 | 28–95.0% | 0.1–15Mpa | -42 to -70 | 40 | 15 |
| PBN-40 | 40 | 7.3 | 28–95.0% | 0.1–15Mpa | -42 to -70 | 50 | 25 |
| PBN-50 | 50 | 9.2 | 28–95.0% | 0.1–15Mpa | -42 to -70 | 50 | 25 |
| PBN-60 | 60 | 11 | 28–95.0% | 0.1–15Mpa | -42 to -70 | 50 | 25 |
| PBN-80 | 80 | 14.6 | 28–95.0% | 0.1–15Mpa | -42 to -70 | 65 | 32 |
| PBN-100 | 100 | 18.5 | 28–95.0% | 0.1–15Mpa | -42 to -70 | 65 | 32 |
| PBN-150 | 150 | 27.5 | 28–95.0% | 0.1–15Mpa | -42 to -70 | 80 | 40 |
| PBN-200 | 200 | 36.7 | 28–95.0% | 0.1–15Mpa | -42 to -70 | 100 | 40 |
| PBN-300 | 300 | 55 | 28–95.0% | 0.1–15Mpa | -42 to -70 | 125 | 50 |
| PBN-400 | 400 | 73.3 | 28–95.0% | 0.1–15Mpa | -42 to -70 | 125 | 50 |
| PBN-500 | 500 | 91.6 | 28–95.0% | 0.1–15Mpa | -42 to -70 | 150 | 50 |
Energy-Saving Technology
Incorporates advanced nitrogen generator processes, optimised gas distributors, streamlined adsorber design, and self-compensating cylinder compression technology to ensure low operational costs and reliable performance.
Low Noise
Based on aerodynamic and noise spectrum analysis of PSA equipment, impedance composite silencers are employed alongside premium resistive sound-absorbing materials and robust structural design to effectively eliminate high, medium, and low-frequency noise.
High Automation
Utilises Siemens PLC and configuration software with a user-friendly interface featuring multi-screen display functionality. Online display of valve status, equipment operation, and product nitrogen parameters (purity, flow rate, temperature, dew point) enables unmanned operation. Remote communication with DCS systems is achievable as required.
Internet of Things (IoT) System
Optional IoT functionality facilitates remote monitoring and data analysis via mobile or computer terminals.
