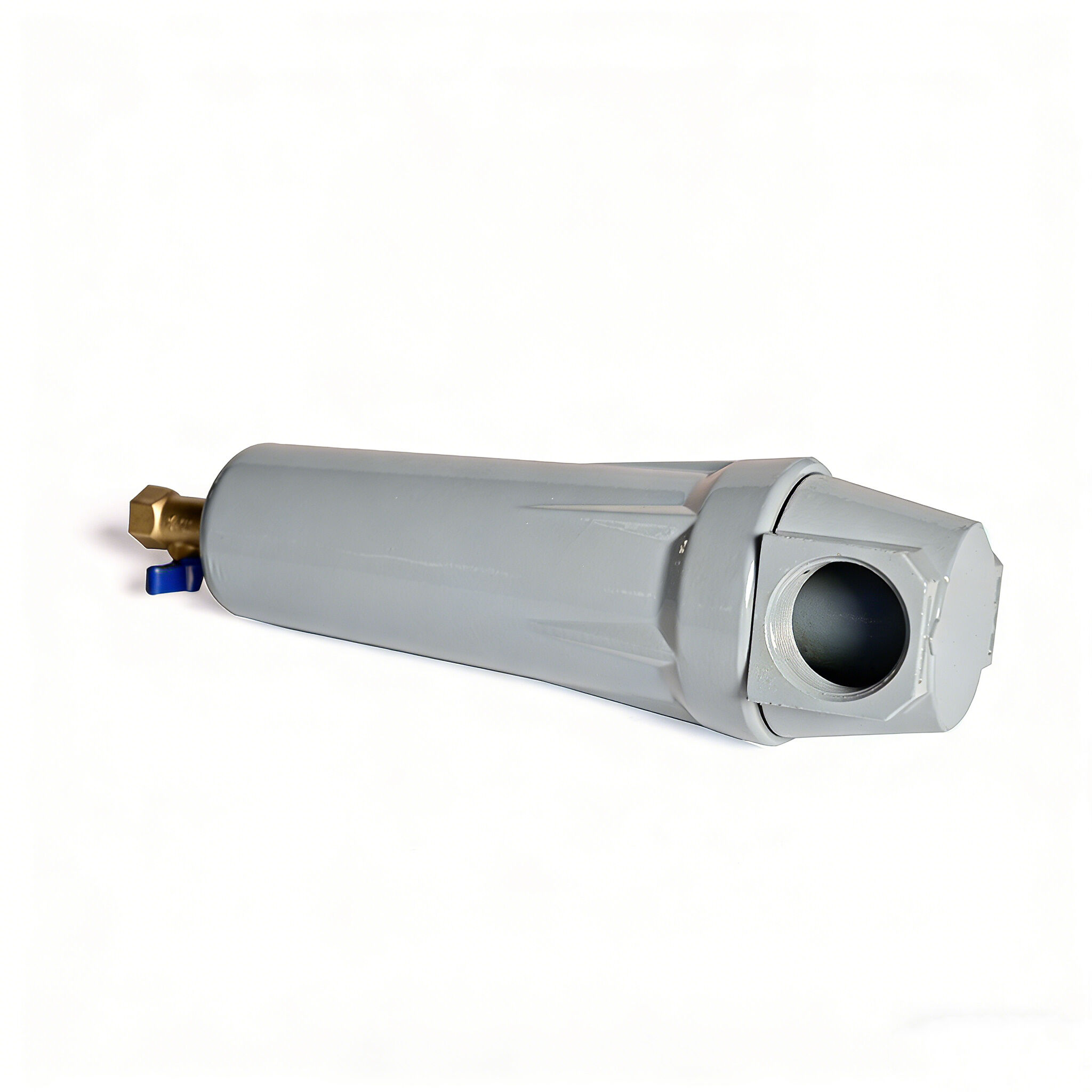

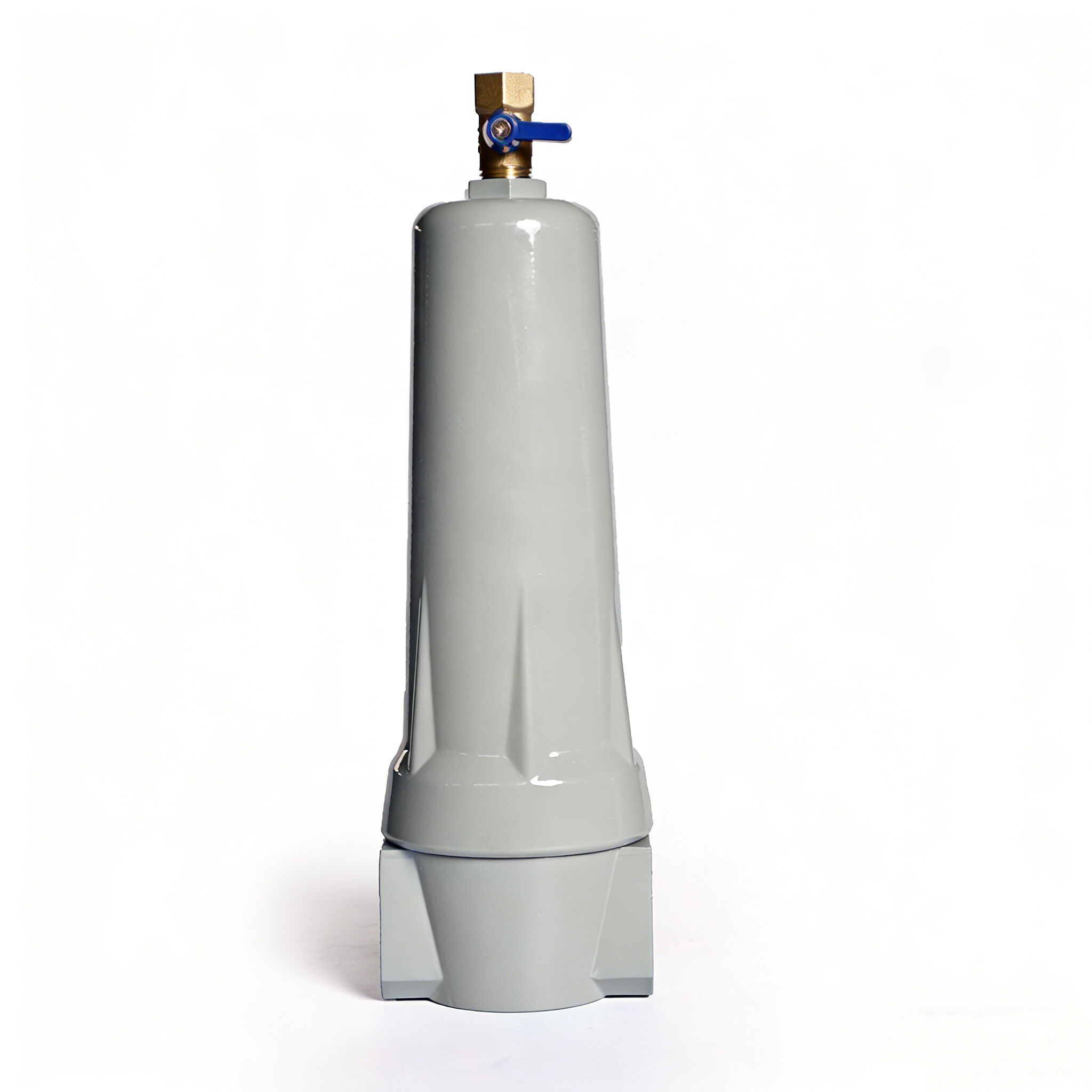

G thread Air Filters
Filter Air Volume: 1.2-55 Nm3/min
Filtration Accuracy: 3.0ppm/1.0ppm/0.01ppm/0.003ppm/0.001μm
- Overview
- Technical Parameters
- FAQ
1. The longer pipe wall allows water vapour and oil to be condensed more fully, and the high quality and large volume filter element makes the effect of isolating oil and water impurities even better.
2. Storing energy, stabilising compressor air pressure and relieving impact.
3. Under normal use, the life span can be up to 8000 hours.
4. No need to adjust pressure, simplify manual steps, simple installation and plug and play.
G thread Air Filters
| Filter Model | Flow Rate (Nm³/min) | Operating Pressure | Filtration Rating | Connection (G-thread) | Filter Element Model |
| FI-D/G/H/A/U-001 | 1.2 | ≤1.6MPa | 3μm 0.01μm 0.003μm 0.001μm |
G1/2、3/4、1" | E*-16R |
| FI-D/G/H/A/U-002 | 2.6 | G3/4、G1" | E*-20R | ||
| FI-D/G/H/A/U-004 | 4 | G1/1.5" | E*-24R | ||
| FI-D/G/H/A/U-006 | 6.5 | G1.5" | E*-28R | ||
| FI-D/G/H/A/U-008 | 8.5 | G1.5" | E*-32R | ||
| FI-D/G/H/A/U-010 | 11 | G2" | E*-36R | ||
| FI-D/G/H/A/U-013 | 13.8 | G2" | E*-36R | ||
| FI-D/G/H/A/U-015 | 16.2 | ≤1.3MPa | G2.5" | E*-40R | |
| FI-D/G/H/A/U-020 | 20 | G2.5" | E*-44R | ||
| FI-D/G/H/A/U-025 | 25 | G2.5" | E*-48R | ||
| FI-D/G/H/A/U-028 | 28 | G3" | E*-50R | ||
| FI-D/G/H/A/U-030 | 35 | G3" | E*-55R | ||
| FI-D/G/H/A/U-040 | 45 | G4" | E*-60R | ||
| FI-D/G/H/A/U-050 | 55 | G4" | E*-65R |
Frequently Asked Questions
-
Q1: Are you a manufacturer or trading company? ▼A1: We are professional manufacturer with big modern factory in Shanghai, China. Both OEM & ODM service can be accepted.
-
Q2: Warranty terms of your machine? ▼A2: One year for the whole machine and two years for screw air end, except consumable spare parts. We provide technical support according to your needs.
-
Q3: Will you provide some spare parts of the machines? ▼A3: Yes. We provide spare parts for daily maintenance.
-
Q4: What voltage can you provide? ▼A4: We can support 220V/380V/400V/415V/440V/480V/570V/600V/1000V 50HZ/60HZ. Send your requirements to our sales manager and we will customize it for you.
-
Q5: How long will you take to arrange production? ▼A5: Delivery of standard goods within 7-10 working days, customization takes about 30 days.
-
Q6: How to pay? ▼A6: T/T, L/C, D/P, Western Union, Apple pay, Google pay, PAYPAL, Credit Card and so on. We also accept USD, RMB, EUR and other currencies.
-
Q7: Can you accept OEM/ODM orders? ▼A7: Yes, we have a professional design team, OEM/ODM orders are very welcome.
