Double-Stage Rotary Vane Vacuum Pump
Pumping Speed:4-78 m3/h（1.1-21.6 L/S）
Motor Power:0.37-2.2 kW
Extreme Pressure: 5*10-2-3 pa（0.5-3 hp）
- Overview
- Product Advantages
- Technical Parameters
- FAQ
Double-stage rotary vane pump consists of two compression chambers, the two chambers are connected in series before and after, and rotate in the same direction at the same speed, which is equivalent to two single-stage pumps connected in series, which improves the compression ratio, and the vacuum degree is higher than that of single-stage rotary vane vacuum pump.
1.Rotor is designed with anti-corrosion coating for corrosion resistance.
2. Gear pump forced constant pressure oil supply, stable operation under low vacuum.
3. Dual anti-oil-return valves protect vacuum systems from oil contamination after shutdowns.

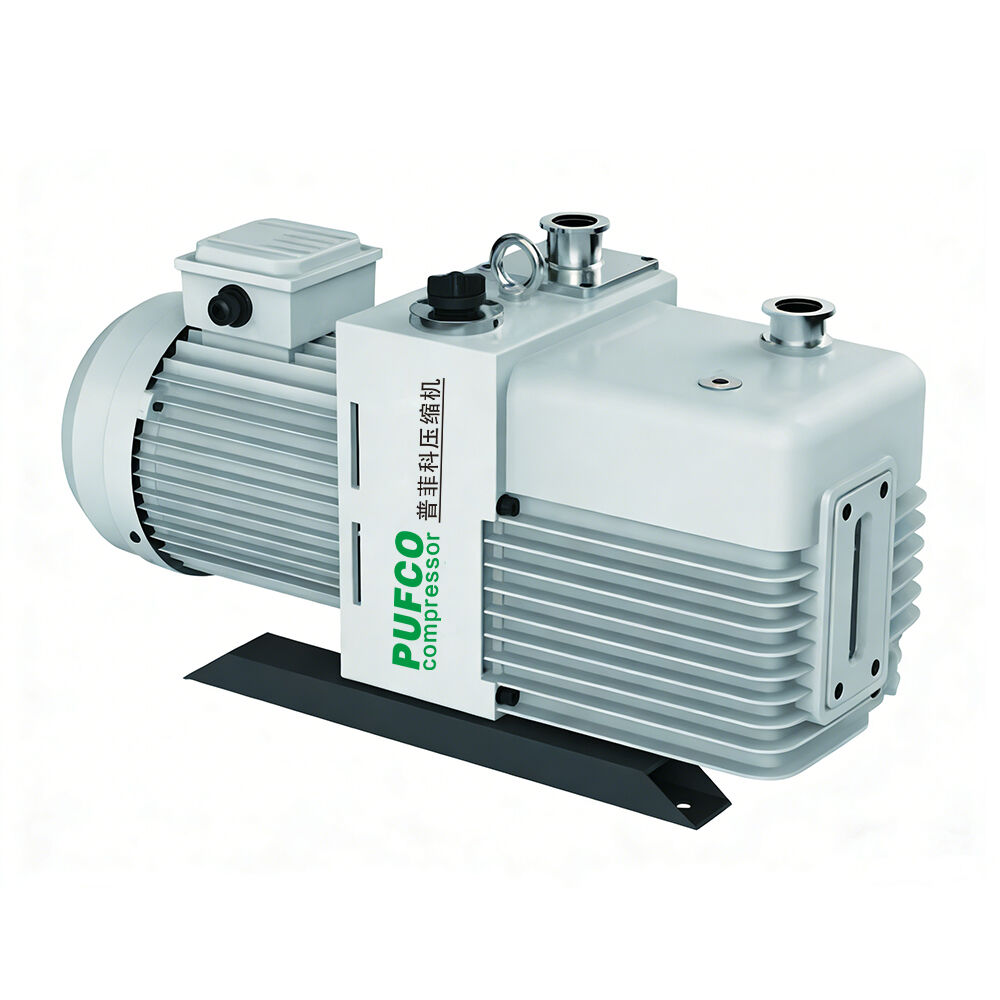

Double-Stage Rotary Vane Vacuum Pump
| Item | Unit | DPZ4 | DPZ8 | DPZ16 | DPZ24 | DPZ30 | DPZ48 | DPZ65 | DPZ85 | DPZ300 | |
| Pumping Speed | 50Hz | m³/h | 4 | 8 | 16 | 24 | 30 | 48 | 65 | 85 | 280 |
| L/s | 1.1 | 2.2 | 4.4 | 6.6 | 8.3 | 13.3 | 18 | 23.6 | 77.7 | ||
| 60Hz | m³/h | 4.8 | 9.6 | 19.2 | 28.8 | 36 | 57.6 | 78 | 102 | 330 | |
| L/s | 1.3 | 2.6 | 5.2 | 7.9 | 9.9 | 16 | 21.6 | 28.3 | 91.6 | ||
| Limit Total Pressure-Shut Gas-Ballast | Pa | 5×10⁻² | 5×10⁻² | 4×10⁻¹ | 4×10⁻¹ | 4×10⁻¹ | 4×10⁻¹ | 4×10⁻¹ | 4×10⁻¹ | 5 | |
| Limit Total Pressure-Opening Gas-Ballast | pa | 3 | 3 | 8×10⁻¹ | 8×10⁻¹ | 8×10⁻¹ | 1.5 | 1.5 | 1.5 | 10 | |
| Power Supply | Single/Three-phase | Single/Three-phase | Single/Three-phase | Single/Three-phase | Single/Three-phase | Single/Three-phase | Three-phase | Three-phase | Three-phase | ||
| Motor Power | kW | 0.4/0.37 | 0.4/0.37 | 0.75/0.55 | 1.1/0.75 | 1.1 | 1.5 | 2.2 | 3 | 7.5 | |
| Inlet/Outlet Diameter | DN | KF16/25 | KF16/25 | KF25 | KF25/40 | KF25/40 | KF40 | KF40 | KF40 | ISO63 or G2' | |
| Oil Consumption | L | 0.6-1.0 | 0.6-1.0 | 0.9-1.5 | 1.3-2.0 | 1.3-2.0 | 3.3-4.5 | 3.3-4.5 | 3.3-4.5 | 7.0-9.0 | |
| Motor Speed | 50Hz | rpm | 1400 | 1400 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 |
| 60Hz | rpm | 1720 | 1720 | 1720 | 1720 | 1720 | 1720 | 1720 | 1720 | 1720 | |
| Working Environment Temperature | ℃ | 5-40 | 5-40 | 5-40 | 5-40 | 5-40 | 5-40 | 5-40 | 5-40 | 5-40 | |
| Noise | dB | ≤56 | ≤56 | ≤58 | ≤58 | ≤58 | ≤62 | ≤62 | ≤65 | ≤73 | |
| Weight | kg | 19 | 21 | 30 | 35 | 43 | 62 | 65 | 65 | 225 | |
