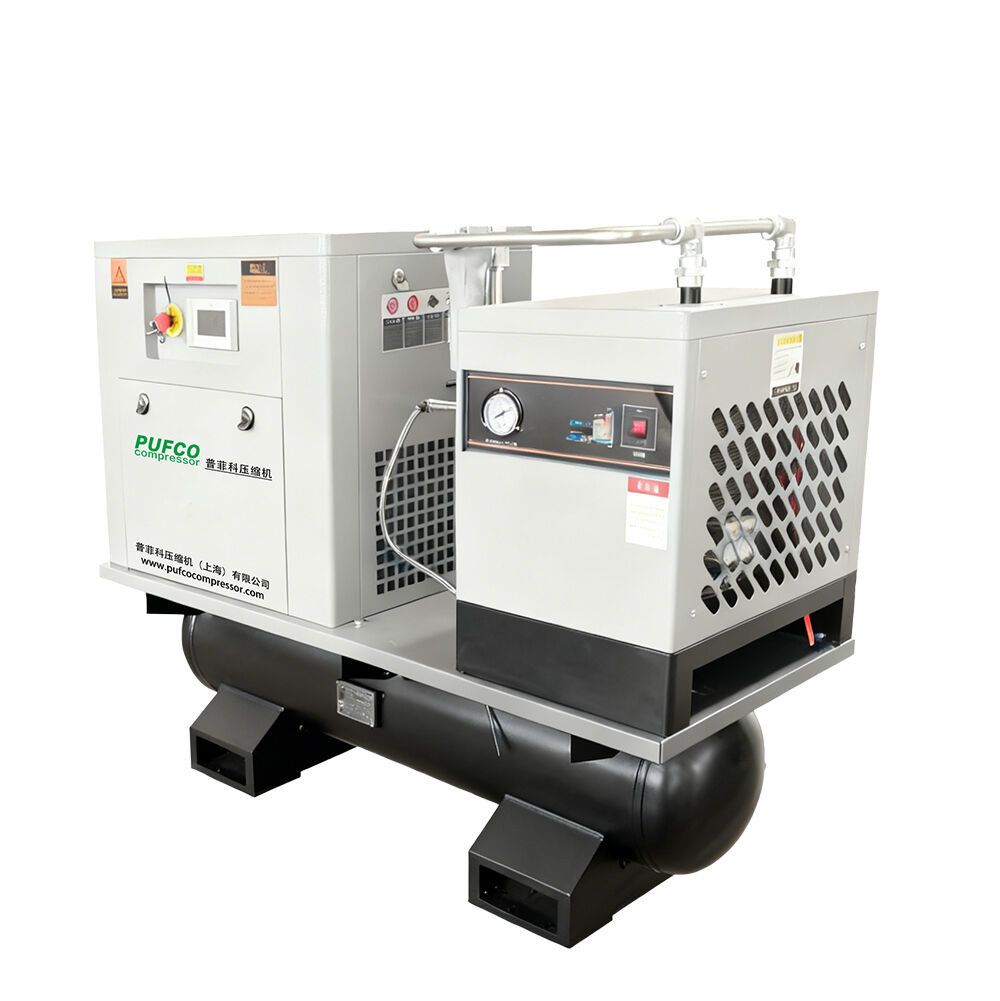

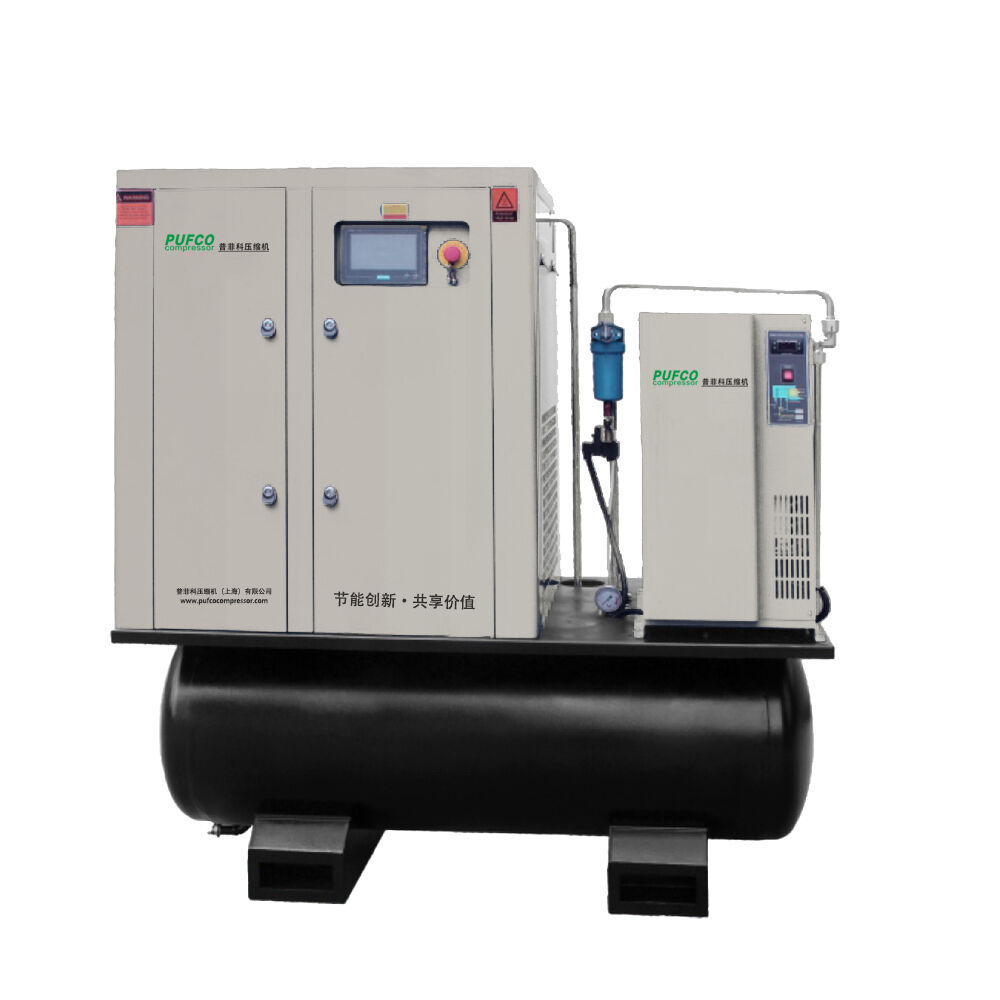

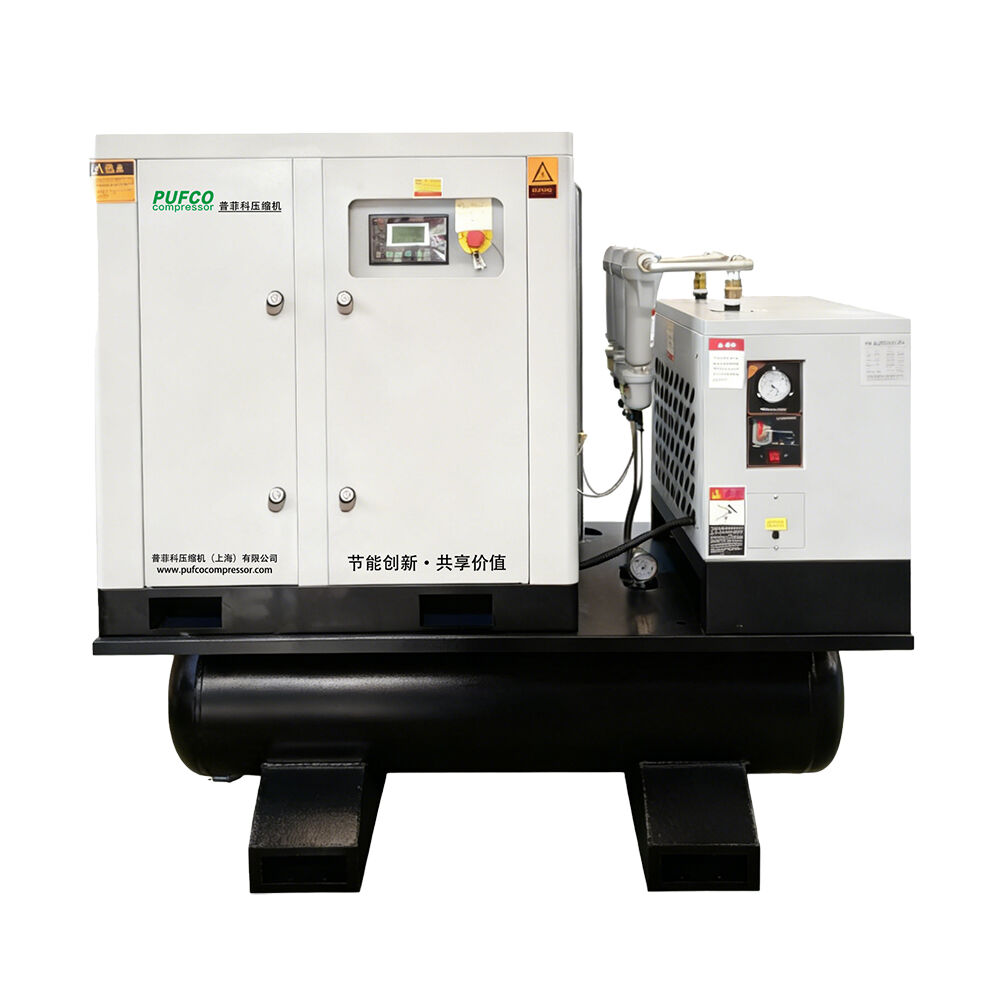

Air Compressor for Laser Cutting Machines
Power：15-37kw
Working Pressure：1.6Mpa
Air Capacity：1m³/min-3m³/min
Voltage：380V, 110V, 220V,ets
- Overview
- Technical Parameters
- Application Scenarios
- Product Advantages
- FAQ
High quality screws
High-efficiency customised air end. Adopting new 5:6 asymmetric rotor tooth profile, high rotor precision and good stability. Longer service life. GHH air end are available.
Electric motors
The use of high-efficiency motors (IE3/IE4/IE5), IP5, class B temperature rise test, suitable for dust, high temperature and other harsh environments

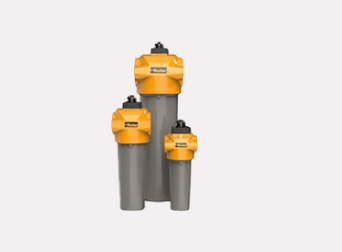

Air Filter
Optional air filters from Parker, ATS and other brands are available. Further improve the air equipment. reduce Extend the service life of air-using equipment (e.g. laser cutters).
Control system
Dedicated control system, multi -channel pressure sensors and multi -channel temperature sensors to detect the operating status of the unit; more friendly user interface, more accurate and reliable control.
High precision frequency converter
Adopt vector control algorithm to achieve high precision motor control. Specialised design for the industry, increasing the customer's ease of use, and more stable performance
| Model | Power（kW） | Pressure（MPa） | Exhaust Vol. （m³/min） |
Length （mm） |
Width （mm） |
Height （mm） |
Weight（kg） | Outlet Diameter |
| FVA-15TJ | 15KW | 1.6 | 1 | 1770 | 770 | 1700 | 400 | RP3/4 |
| FVA-22TJ | 22KW | 1.6 | 2 | 1850 | 770 | 1860 | 450 | RP3/4 |
| FVA-30TJ | 30KW | 1.6 | 2.4 | 1850 | 850 | 1960 | 550 | RP3/4 |
| FVA-37TJ | 37KW | 1.6 | 3 | 2030 | 850 | 1960 | 600 | RP3/4 |
General manufacturing, energy and power industry, healthcare and pharmaceuticals, food and beverage, construction and mining, textiles, paper manufacturing, shipbuilding and marine engineering, environmental protection.
Clean air
Solve compressed air and gas filtration problems in your most demanding applications, increasing efficiency, reducing downtime and lowering operating costs.
Wide range of applications
All-in-one design, reduced space, plug and play, trial for a variety of small air usage scenarios
Energy saving and high efficiency
The advanced PM VSD motor technology and optimised airflow design of PUFCO's oil-free compressors reduce energy consumption by up to 15%-35% compared to conventional products, resulting in lower running costs.
Quiet Operation
Lower noise, creating a safer and more comfortable working environment.
Durable Design
Robust construction with corrosion-resistant components ensures long-term reliability even in harsh conditions.
Extra-long Service
Up to 10 years warranty. Whenever and wherever you can find PUFCO, you can be sure to get the right service.
Frequently Asked Questions
-
Q1: Are you a manufacturer or trading company? ▼A1: We are professional manufacturer with big modern factory in Shanghai, China. Both OEM & ODM service can be accepted.
-
Q2: Warranty terms of your machine? ▼A2: One year for the whole machine and two years for screw air end, except consumable spare parts. We provide technical support according to your needs.
-
Q3: Will you provide some spare parts of the machines? ▼A3: Yes. We provide spare parts for daily maintenance.
-
Q4: What voltage can you provide? ▼A4: We can support 220V/380V/400V/415V/440V/480V/570V/600V/1000V 50HZ/60HZ. Send your requirements to our sales manager and we will customize it for you.
-
Q5: How long will you take to arrange production? ▼A5: Delivery of standard goods within 7-10 working days, customization takes about 30 days.
-
Q6: How to pay? ▼A6: T/T, L/C, D/P, Western Union, Apple pay, Google pay, PAYPAL, Credit Card and so on. We also accept USD, RMB, EUR and other currencies.
-
Q7: Can you accept OEM/ODM orders? ▼A7: Yes, we have a professional design team, OEM/ODM orders are very welcome.
