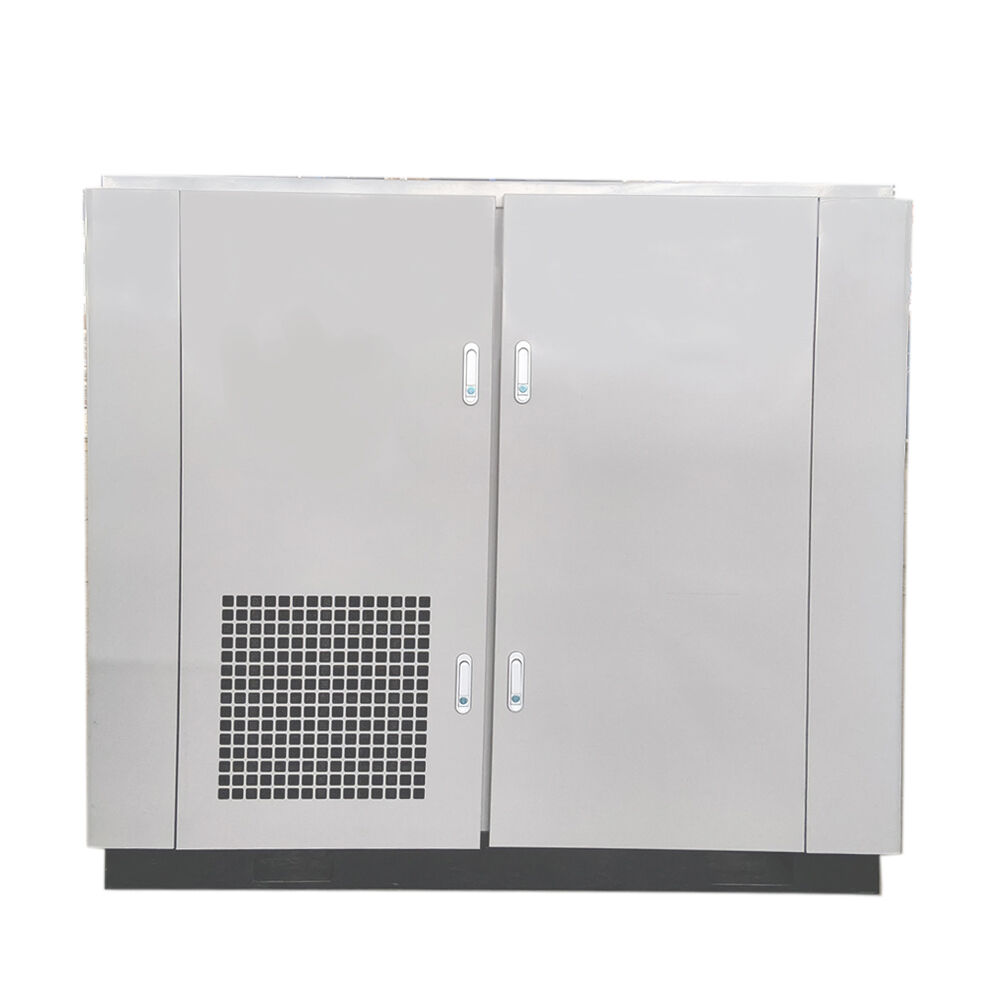

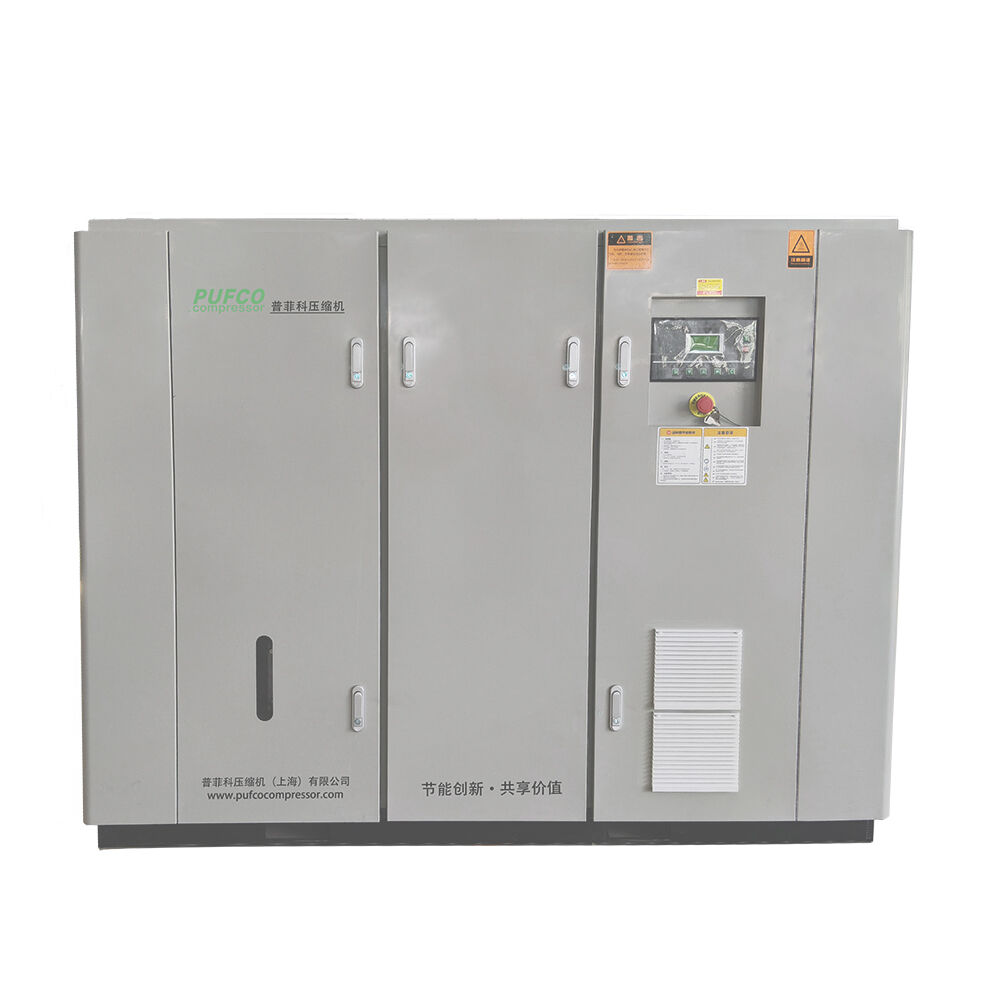

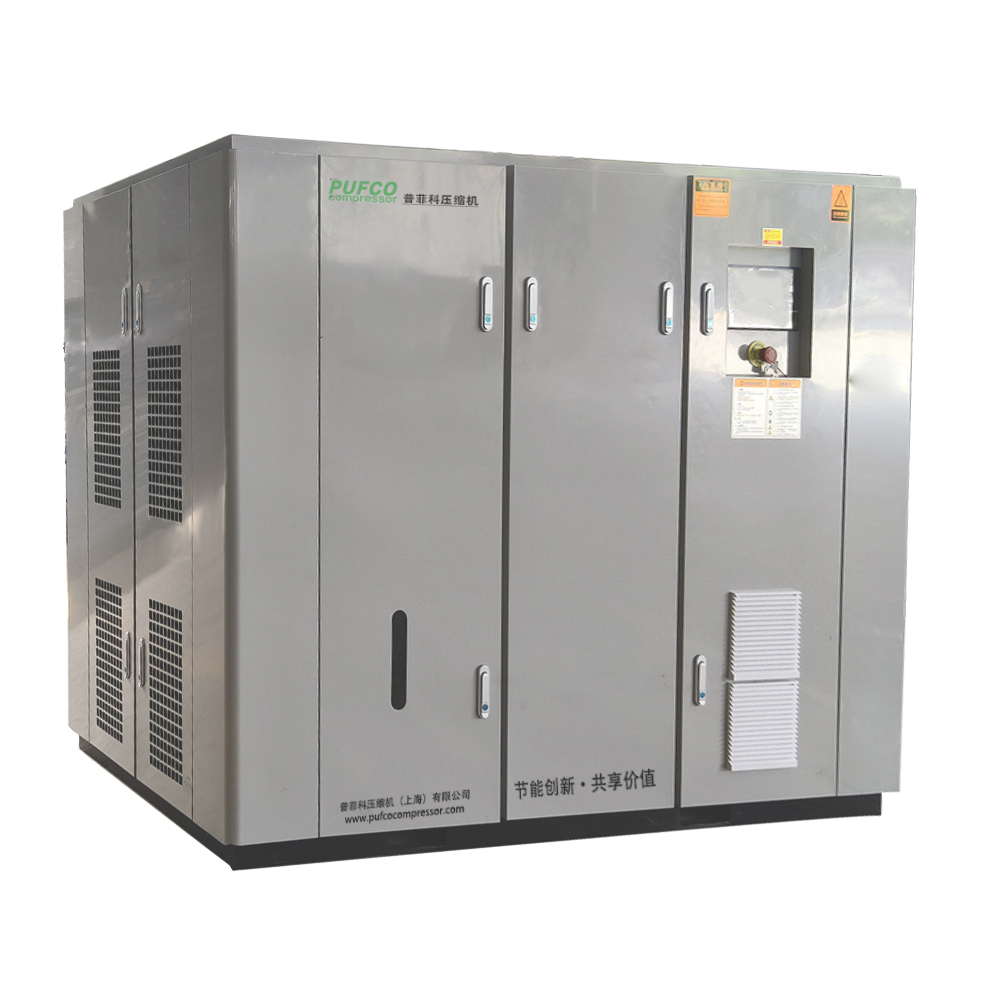

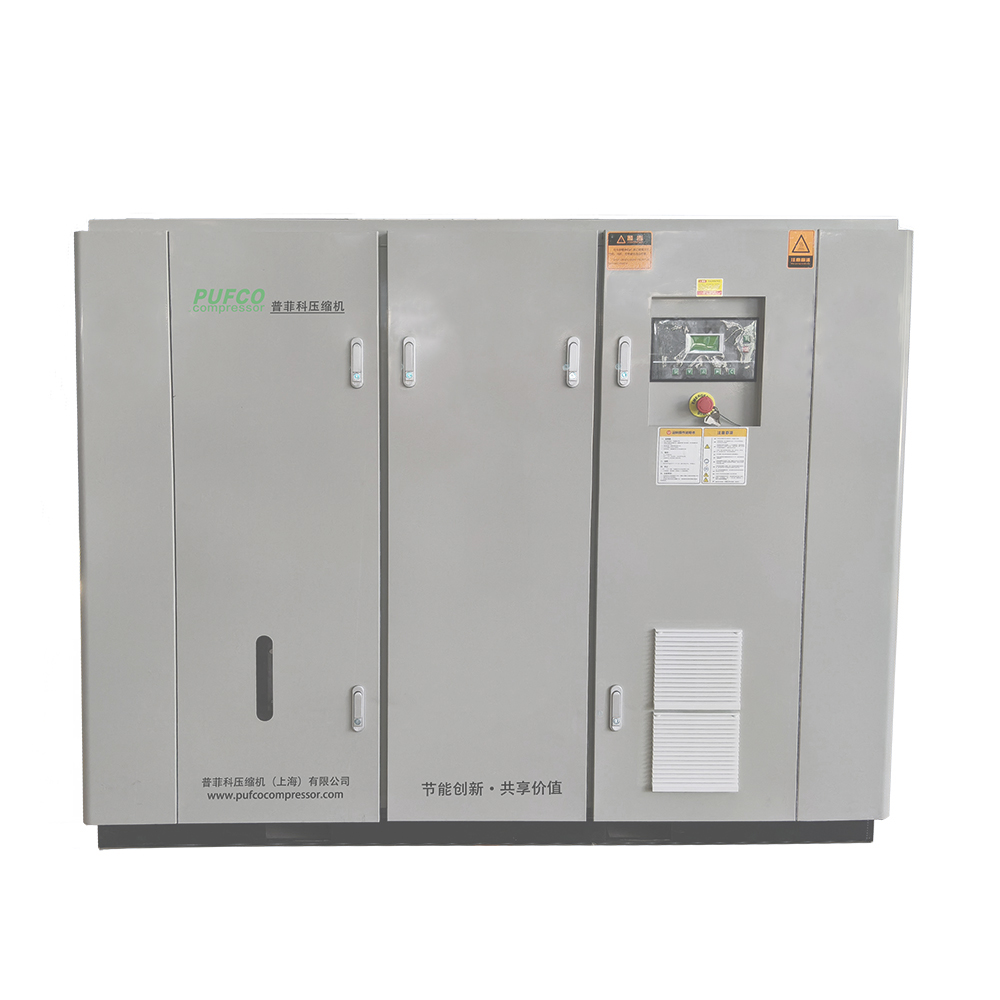

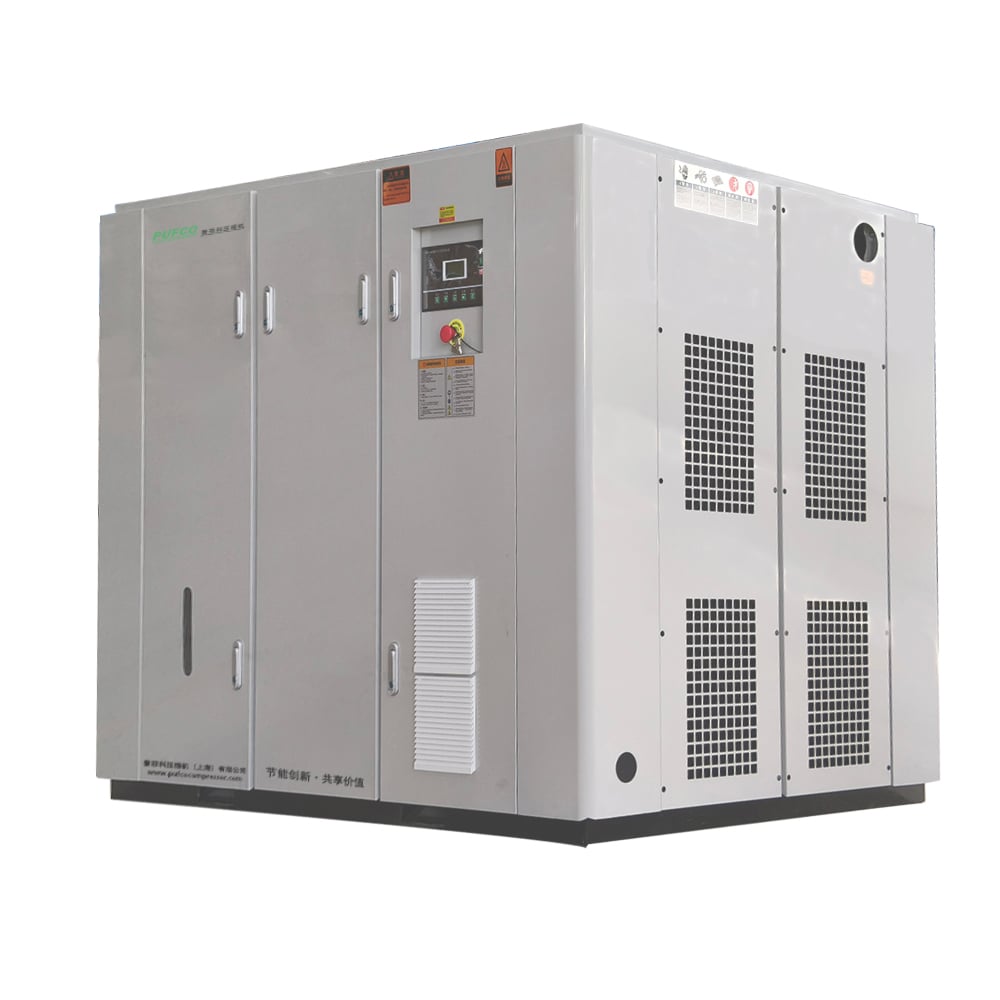

Single-stage Permanent Magnet Variable Frequency Air Compressor
Power：7.5-250kw
Working Pressure：0.75-1.3Mpa
Air Capacity：0.28m³/min-45.32m³/min
Voltage：380V, 110V, 220V,ets.
- Overview
- Product Advantages
- Technical Parameters
- Application Scenarios
- FAQ

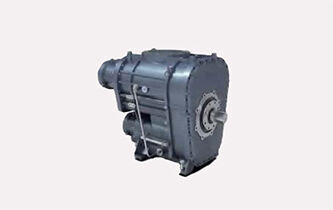

High quality Air End
Adopting innovative 5:6 asymmetric rotor tooth profile, the core components feature high precision and excellent stability. Service life is extended by over 30%, reducing replacement costs for enterprises.

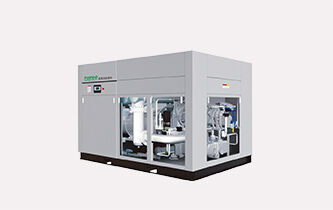

Material
Piping system uses 304 stainless steel, offering strong corrosion and aging resistance. Service life doubles compared to carbon steel models, ideal for chemical, food processing industries.
Control system
Dedicated intelligent control system with multi-channel pressure/temperature sensors monitors operation in real-time. 20% higher control precision than traditional systems, with user-friendly interface and energy-saving performance.

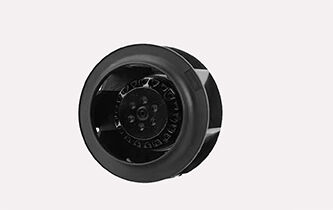

Centrifugal Fans
New independent radial cooling fan with special cooler achieves 40% higher cooling efficiency. 35% higher wind pressure, ≤65dB lower noise, and 25% less energy consumption than conventional axial fans.
High-precision air end
High-precision rotors provide greater stability. Stable gas production and longer life.
Specialised Control System
Specialised control system for air compressor, including multiple pressure sensors and temperature sensors, more accurate detection of the operating status of the unit.
Energy saving and high efficiency
The advanced PM VSD motor technology and optimised airflow design of PUFCO's oil-free compressors reduce energy consumption by up to 15%-35% compared to conventional products, resulting in lower running costs.
Reasonable Zoning
Separation design of hot and cold zones, no hot zone inside the unit, the electrical components are in the low-temperature zone, long service life; reduce maintenance costs.
Quiet Operation
There is special flame retardant sound deadening cotton inside to reduce the noise of the unit and provide a quiet using environment.
Durable Design
Robust construction with corrosion-resistant components ensures long-term reliability even in harsh conditions.
Extra-long Service
Up to 10 years warranty. Whenever and wherever you can find PUFCO, you can be sure to get the right service.
| Model | Power（kW） | Pressure（MPa） | Exhaust Vol.（m³/min） | Cooling Method |
Size(mm) | Weight（kg） | Outlet Diameter |
| FAV-7 | 7.5KW | 0.75-1.3 | 0.28-1.2 | Air/Oil | 760*620*840 | 140 | R1/2 |
| FVA-11 | 11KW | 0.75-1.3 | 0.41-1.97 | Air/Oil | 1000*750*1020 | 240 | R3/4 |
| FVA-15 | 15KW | 0.75-1.3 | 0.66-2.6 | Air/Oil | 1000*750*1020 | 240 | R3/4 |
| FVA-18 | 18KW | 0.75-1.3 | 0.88-3.16 | Air/Oil | 1180*850*1160 | 310 | R1 |
| FVA-22 | 22KW | 0.75-1.3 | 0.95-3.85 | Air/Oil | 1180*850*1160 | 310 | R1 |
| FVA-30 | 30KW | 0.75-1.3 | 1.55-5.51 | Air | 1180*850*1160 | 310 | R1 |
| FVA-37 | 37KW | 0.75-1.3 | 1.81-6.8 | Air/Oil | 1280*1000*1290 | 500 | R1-1/2 |
| FVA-45 | 45KW | 0.75-1.3 | 2.18-8.1 | Air/Oil | 1280*1000*1290 | 500 | R1-1/2 |
| FVA-55 | 55KW | 0.75-1.3 | 2.76-10.2 | Air/Oil | 1900*1250*1560 | 1000 | R2 |
| FVA-75 | 75KW | 0.75-1.3 | 3.67-12.46 | Air | 1900*1250*1560 | 1100 | R2 |
| FVA-90 | 90KW | 0.75-1.3 | 4.72-15.55 | Air | 1900*1250*1560 | 1200 | R2 |
| FVA-110 | 110KW | 0.75-1.3 | 5.19-19.53 | Air | 2300*1470*1840 | 1600 | DN80 |
| FVA-132 | 132KW | 0.75-1.3 | 6.57-22.41 | Air | 2300*1470*1840 | 1800 | DN80 |
| FVA-160 | 160KW | 0.75-1.3 | 8.42-28.12 | Air | 2300*1470*1840 | 2000 | DN100 |
| FVA-185 | 185KW | 0.75-1.3 | 9.64-30.39 | Air | 2540*1640*1840 | 2600 | DN100 |
| FVA-200 | 200KW | 0.75-1.3 | 10.93-37.18 | Air | 2540*1640*1840 | 2600 | DN100 |
| FVA-220 | 220KW | 0.75-1.3 | 11.89-42.85 | Air | 3200*1980*2150 | 3600 | DN100 |
| FVA-250 | 250KW | 0.75-1.3 | 14.42-45.32 | Air | 3200*1980*2150 | 3800 | DN100 |
General manufacturing, energy and power industry, healthcare and pharmaceuticals, food and beverage, construction and mining, textiles, paper manufacturing, shipbuilding and marine engineering, environmental protection.
Frequently Asked Questions
-
Q1: Are you a manufacturer or trading company? ▼A1: We are professional manufacturer with big modern factory in Shanghai, China. Both OEM & ODM service can be accepted.
-
Q2: Warranty terms of your machine? ▼A2: One year for the whole machine and two years for screw air end, except consumable spare parts. We provide technical support according to your needs.
-
Q3: Will you provide some spare parts of the machines? ▼A3: Yes. We provide spare parts for daily maintenance.
-
Q4: What voltage can you provide? ▼A4: We can support 220V/380V/400V/415V/440V/480V/570V/600V/1000V 50HZ/60HZ. Send your requirements to our sales manager and we will customize it for you.
-
Q5: How long will you take to arrange production? ▼A5: Delivery of standard goods within 7-10 working days, customization takes about 30 days.
-
Q6: How to pay? ▼A6: T/T, L/C, D/P, Western Union, Apple pay, Google pay, PAYPAL, Credit Card and so on. We also accept USD, RMB, EUR and other currencies.
-
Q7: Can you accept OEM/ODM orders? ▼A7: Yes, we have a professional design team, OEM/ODM orders are very welcome.
