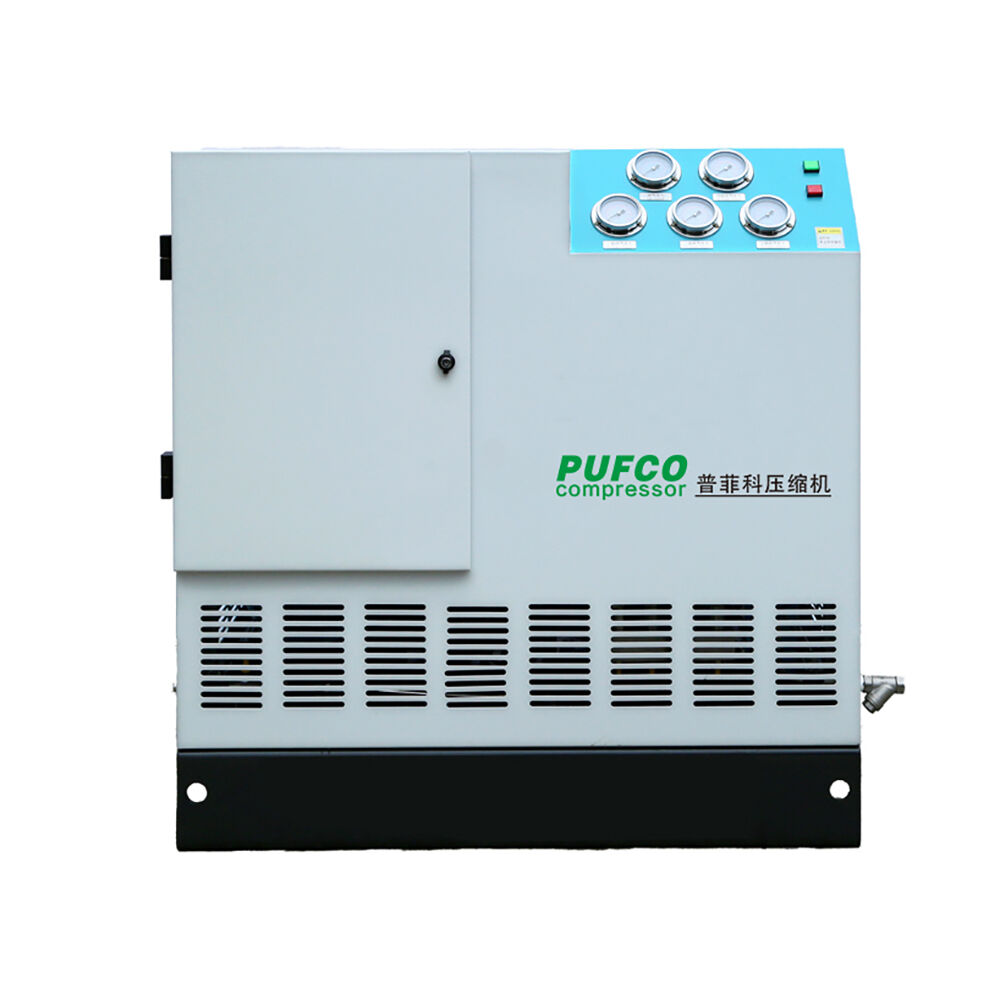

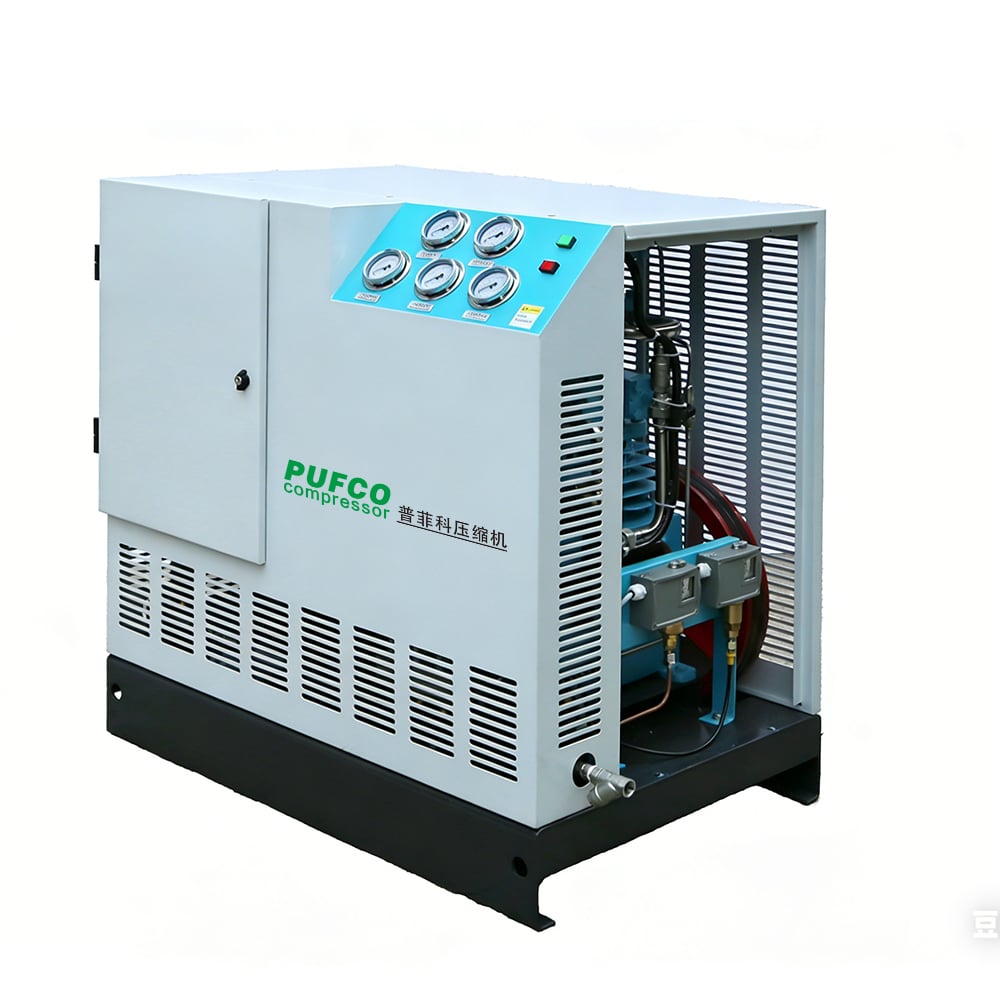

Silent Oil-free oxygen compressor
1.Suitable for small-scale PSA oxygen systems, inlet 3–4 barg, discharge up to 150 barg.
2.Provides clean oxygen filling for hospitals and island clinics, 4–12 Nm³/h, 24-hour continuous operation.
3.Compact, lightweight, oil-free design with stainless steel cylinders for stable oxygen purity.
4.CE certified and compliant with Japan’s strict quality standards, reliable and easy to operate.
- Overview
- Product Advantages
- Technical Parameters
- FAQ
Operating Pressure & Application
This oxygen cylinder filling compressor is applicable to an inlet pressure range of 3–4 barg (40–60 psig) and can achieve a discharge pressure of up to 150 barg (2150 psig), making it suitable for integration with small-scale PSA oxygen generation systems.
Matched Oxygen Generation System
The matched small-scale PSA oxygen generation system provides a flow rate of 4–12 Nm³/h and is capable of continuous 24-hour operation. It delivers clean oxygen cylinder filling services for community hospitals and small island hospitals, with a recommended filling capacity of 6–8 cylinders per batch.
Certification & Market Compliance
The standard high-pressure model has obtained EU CE certification, meeting the access requirements of the European market. The products can also be supplied to the Japanese market, fully complying with Japan’s stringent quality and safety standards.
1. Four-stage compression structure, with each stage equipped with a safety valve and a temperature sensor; low intake pressure protection at the inlet and high discharge pressure protection at the outlet, with automatic alarm and shutdown functions to ensure operational safety.
2. Compact structure and lightweight design, with forklift slots at the base for easy handling, transportation, and on-site movement.
3. Customizable compression configurations, available in single-stage, two-stage, three-stage, or four-stage designs according to customer-specific operating conditions.
4. Fully oil-free design with stainless steel cylinders, eliminating oil contamination, maintaining stable oxygen purity, and suitable for VPSA / PSA oxygen source boosting applications.
5. High-quality, safe, and reliable construction with excellent operational stability, capable of matching and replacing comparable products from international brands.
6. Clearly defined piston ring service life: up to 4,000 hours under low-pressure operating conditions and 1,500–2,000 hours under high-pressure operating conditions, facilitating efficient maintenance planning.
7. Equipped with well-known brand motors, with support for customer-specified brands such as Siemens or ABB.
8. Certified to EU CE standards and suitable for supply to the Japanese market, fully complying with Japan’s stringent quality requirements.
9. Low-speed operation with an average speed of 260–400 RPM, effectively extending the overall service life of the equipment.
10. Low noise operation, with an average noise level below 75 dB, suitable for quiet operation in medical environments.
11. Designed for heavy-duty continuous operation, with certain models supporting stable 24-hour uninterrupted running.
| Model | Working medium | Intake pressure (barg) |
Exhaust pressure (barg) |
Nominal volumetric flow rate Nm³/H |
Power (kw) |
Intake/Exhaust Port | Cooling method | Weight (kg) |
Size (mm) |
Compression level |
| FOW-4/4-150 | Oxygen | 3-4 | 150 | 4 | 3 | DN15/DN6 | Air-cooled | 320 | 1000×750×1050 | 4 |
| FOW-5/4-150 | Oxygen | 3-4 | 150 | 5 | 3 | DN15/DN6 | Air-cooled | 320 | 1000×750×1050 | 4 |
| FOW-6/4-150 | Oxygen | 3-4 | 150 | 6 | 3 | DN15/DN6 | Air-cooled | 320 | 1000×750×1050 | 4 |
| FOW-8/4-150 | Oxygen | 3-4 | 150 | 8 | 4 | DN15/DN6 | Air-cooled | 330 | 1000×750×1050 | 4 |
| FOW-10/4-150 | Oxygen | 3-4 | 150 | 10 | 5.5 | DN15/DN6 | Air-cooled | 340 | 1000×750×1050 | 4 |
| FOW-12/4-150 | Oxygen | 3-4 | 150 | 12 | 5.5 | DN15/DN6 | Air-cooled | 340 | 1000×750×1050 | 4 |
Frequently Asked Questions
-
Q1: Are you a manufacturer or trading company? ▼A1: We are professional manufacturer with big modern factory in Shanghai, China. Both OEM & ODM service can be accepted.
-
Q2: Warranty terms of your machine? ▼A2: One year for the whole machine and two years for screw air end, except consumable spare parts. We provide technical support according to your needs.
-
Q3: Will you provide some spare parts of the machines? ▼A3: Yes. We provide spare parts for daily maintenance.
-
Q4: What voltage can you provide? ▼A4: We can support 220V/380V/400V/415V/440V/480V/570V/600V/1000V 50HZ/60HZ. Send your requirements to our sales manager and we will customize it for you.
-
Q5: How long will you take to arrange production? ▼A5: Delivery of standard goods within 7-10 working days, customization takes about 30 days.
-
Q6: How to pay? ▼A6: T/T, L/C, D/P, Western Union, Apple pay, Google pay, PAYPAL, Credit Card and so on. We also accept USD, RMB, EUR and other currencies.
-
Q7: Can you accept OEM/ODM orders? ▼A7: Yes, we have a professional design team, OEM/ODM orders are very welcome.
