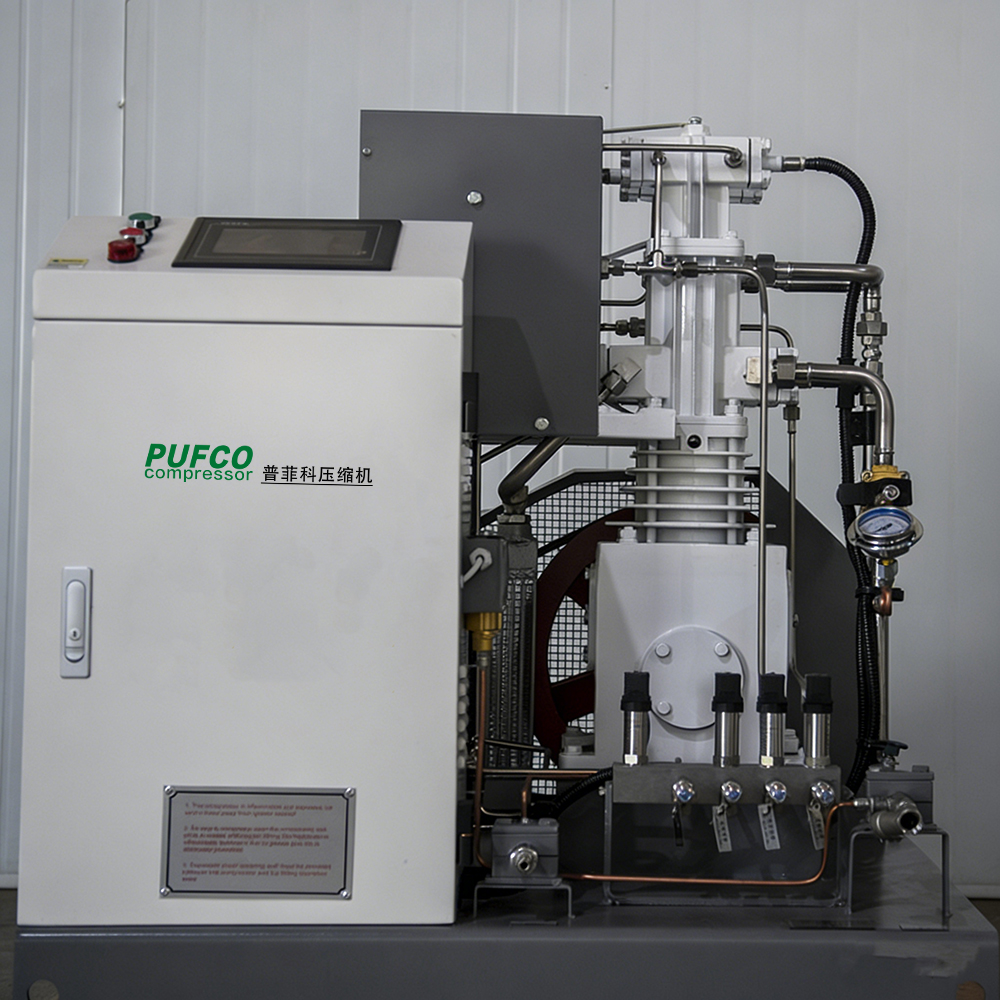

PLC-controlled oil-free oxygen compressor
1.PLC Intelligent Control Version
2.Suitable for Small Hospitals
3.Easy Operation
4.Completely Oil-Free, Safe and Reliable
- Overview
- Product Advantages
- Technical Parameters
- FAQ
This oxygen cylinder filling compressor is designed for an inlet pressure of 3–4 barg (40–60 psig) and a discharge pressure of 150 barg (2150 psig). It works in combination with a small PSA oxygen generation system, with a flow rate of 4–12 Nm³/h, providing clean oxygen cylinder filling services for community hospitals and island hospitals. The system is capable of continuous 24-hour operation, with a recommended maximum of 6–8 cylinders per filling batch.
Key Features of the Compressor
This compressor features a four-stage compression design, with a safety valve installed at each stage. The inlet is equipped with low suction pressure protection, while the discharge side is protected by high discharge pressure protection. A temperature sensor is installed at each compression stage. In the event of over-temperature or over-pressure, the system will automatically alarm and shut down to ensure safe operation. The unit is compact in size, lightweight in structure, and designed with forklift slots at the base, allowing for easy handling and mobility.
Certification
Our standard high-pressure oxygen compressors are CE certified and fully compliant with European Union market requirements.
Customization Capability
We can provide customized oxygen compressor solutions based on specific customer operating conditions.
1.100% oil-free design, no lubrication oil required, with stainless steel cylinders.
2.Suitable for VPSA / PSA oxygen source boosting applications.
3.No contamination, maintaining oxygen purity without degradation.
4.High quality, safe and reliable, with excellent operational stability, capable of replacing or competing with international brands.
5.Low procurement cost, low maintenance cost, and simple operation.
6.Piston ring service life:
6.1 Low-pressure conditions: approximately 4,000 hours
6.2 High-pressure conditions: approximately 1,500–2,000 hours
7.Equipped with brand-name motors; customer-specified brands available, such as Siemens or ABB.
8.Supplied to the Japanese market, meeting Japan’s stringent quality standards.
9.Compressor configurations available as single-stage, two-stage, three-stage, or four-stage compression based on specific operating conditions.
10.Low-speed operation with long service life, average speed 260–400 RPM.
11.Low noise level, average noise below 75 dB, suitable for quiet operation in medical environments.
12.Designed for continuous heavy-duty operation, capable of stable 24-hour nonstop running (depending on specific model).
| Model | Working medium | Intake pressure (barg) |
Exhaust pressure (barg) |
Nominal volumetric flow rate (NM3/H) |
Power (kw) |
Intake/Exhaust Port |
Cooling method | weight (kg) |
Size (mm) |
Compression level |
| POW-4/4-150 | Oxygen | 45720 | 150 | 4 | 3 | DN15/DN6 | Air-Cooling | 320 | 1000×750×1050 | 4 |
| POW-5/4-150 | Oxygen | 45720 | 150 | 5 | 3 | DN15/DN6 | Air-Cooling | 320 | 1000×750×1050 | 4 |
| POW-6/4-150 | Oxygen | 45720 | 150 | 6 | 3 | DN15/DN6 | Air-Cooling | 320 | 1000×750×1050 | 4 |
| POW-8/4-150 | Oxygen | 45720 | 150 | 8 | 4 | DN15/DN6 | Air-Cooling | 330 | 1000×750×1050 | 4 |
| POW-10/4-150 | Oxygen | 45720 | 150 | 10 | 5.5 | DN15/DN6 | Air-Cooling | 340 | 1000×750×1050 | 4 |
| POW-12/4-150 | Oxygen | 45720 | 150 | 12 | 5.5 | DN15/DN6 | Air-Cooling | 340 | 1000×750×1050 | 4 |
Frequently Asked Questions
-
Q1: Are you a manufacturer or trading company? ▼A1: We are professional manufacturer with big modern factory in Shanghai, China. Both OEM & ODM service can be accepted.
-
Q2: Warranty terms of your machine? ▼A2: One year for the whole machine and two years for screw air end, except consumable spare parts. We provide technical support according to your needs.
-
Q3: Will you provide some spare parts of the machines? ▼A3: Yes. We provide spare parts for daily maintenance.
-
Q4: What voltage can you provide? ▼A4: We can support 220V/380V/400V/415V/440V/480V/570V/600V/1000V 50HZ/60HZ. Send your requirements to our sales manager and we will customize it for you.
-
Q5: How long will you take to arrange production? ▼A5: Delivery of standard goods within 7-10 working days, customization takes about 30 days.
-
Q6: How to pay? ▼A6: T/T, L/C, D/P, Western Union, Apple pay, Google pay, PAYPAL, Credit Card and so on. We also accept USD, RMB, EUR and other currencies.
-
Q7: Can you accept OEM/ODM orders? ▼A7: Yes, we have a professional design team, OEM/ODM orders are very welcome.
