- Overview
- Flow Rate: 10–1000 Nm³/h
- Discharge Pressure: Up to 30 MPa
- Air-Cooled or Water-Cooled Design
- Explosion-Proof Motor Configuration
- PLC Automatic Control System
- Mobile Skid-Mounted Units
- Containerized Recovery Systems
- International Voltage Standards (220V / 380V / 415V / 440V / 460V / 480V)
Benefits for Utility Operators
- Reduce SF6 gas loss during maintenance
- Improve gas recovery efficiency
- Maintain gas purity for reuse
- Lower replacement gas costs
- Comply with environmental management requirements
- Minimize equipment downtime
- Increase maintenance productivity
Frequently Asked Questions
What is an SF6 recovery compressor?
An SF6 recovery compressor is a specialized gas compressor used to extract, compress, transfer, and store sulfur hexafluoride gas from electrical equipment during maintenance operations.
Why is oil-free compression important for SF6 gas?
Oil contamination can affect gas purity and insulation performance. Oil-free compressors ensure recovered SF6 gas remains clean and suitable for reuse.
Can the compressor run continuously?
Yes. PUFCO SF6 compressors are designed for industrial-duty 24-hour continuous operation.
Is customization available?
Yes. We provide customized flow rates, pressure ranges, cooling methods, control systems, and electrical configurations based on customer requirements.
Request a Quote
Looking for a reliable Oil-Free SF6 Gas Recovery Compressor for your utility, GIS, or circuit breaker maintenance project?
Contact PUFCO today to receive:
✓ Technical consultation
✓ Model selection assistance
✓ Customized compressor solutions
✓ Competitive factory pricing
✓ Global delivery support
Recover, Recompress, and Reuse SF6 Gas Safely and Efficiently

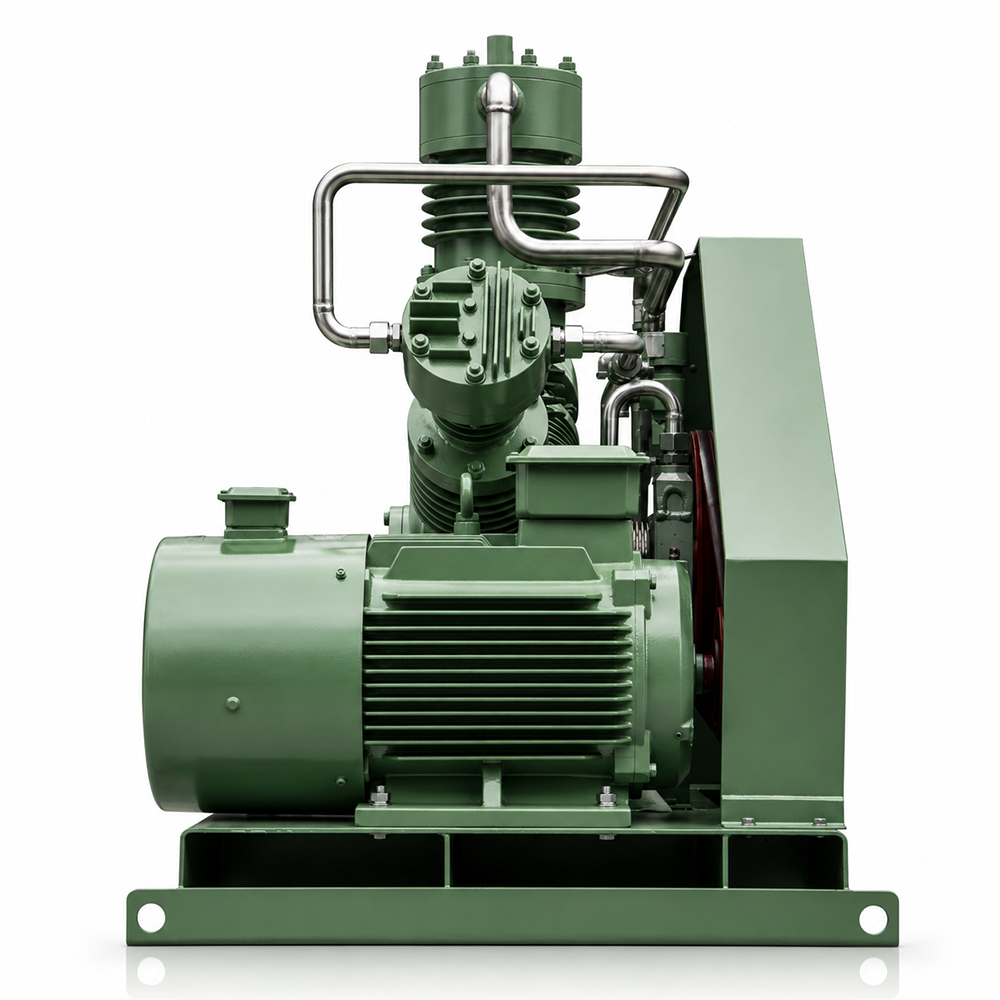

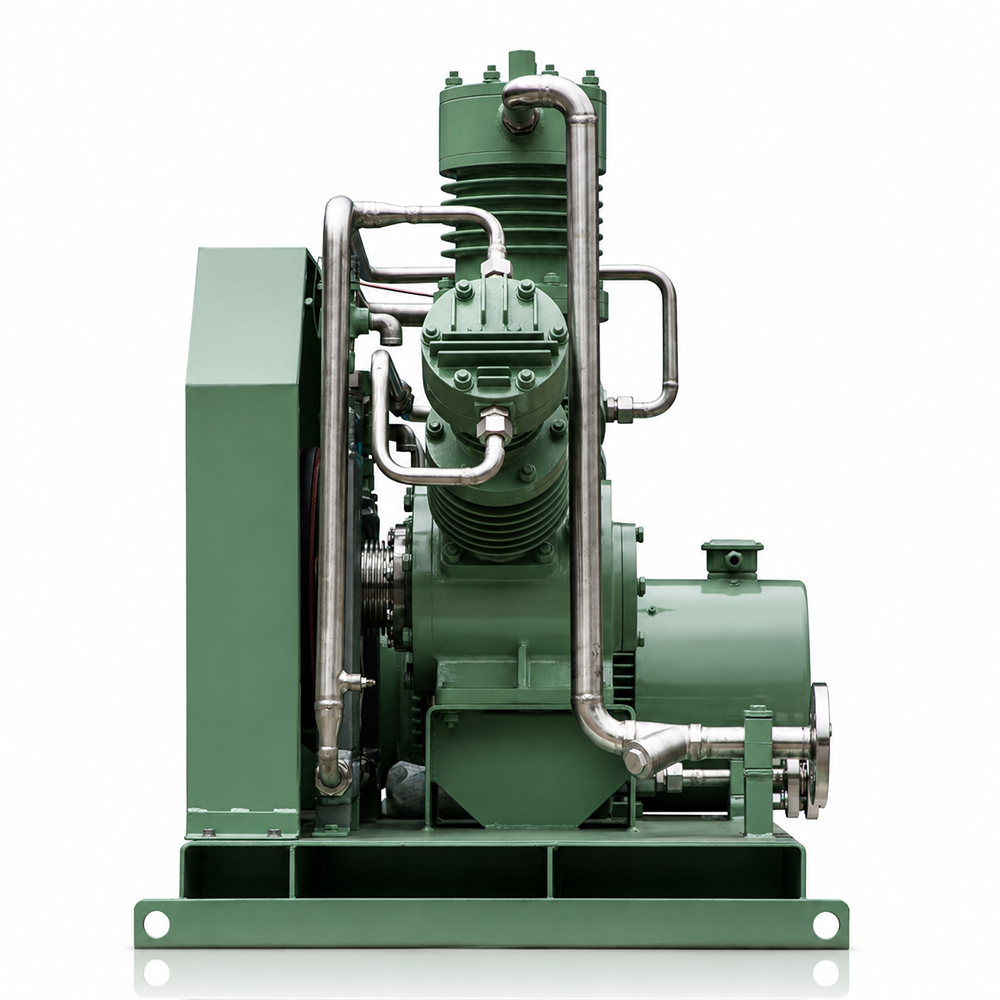

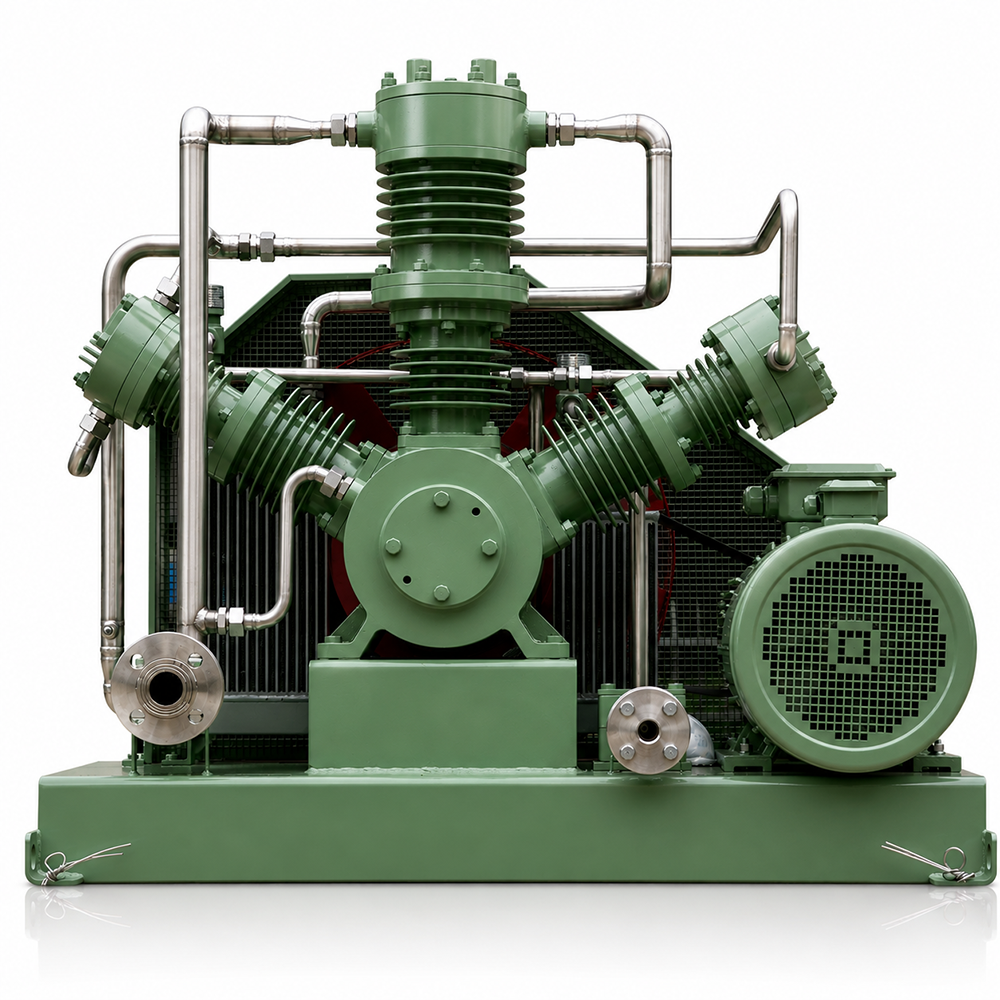

The PUFCO Oil-Free SF6 Gas Recovery Compressor is specifically designed for the recovery, recompression, and transfer of sulfur hexafluoride (SF6) gas during the maintenance, servicing, and refurbishment of high-voltage electrical equipment. It is widely used in SF6 circuit breakers, GIS substations, gas-insulated switchgear, and electrical utility maintenance operations.
With a completely oil-free compression design, the compressor ensures contamination-free gas recovery, helping operators maintain gas purity while reducing operating costs and environmental impact.
Why Choose PUFCO Oil-Free SF6 Recovery Compressors?
100% Oil-Free Compression
The oil-free reciprocating compression system eliminates the risk of oil contamination, ensuring recovered SF6 gas remains clean and reusable.
High Recovery Efficiency
Designed for rapid gas transfer and recovery, minimizing maintenance downtime and improving service productivity.
Continuous 24/7 Operation
Heavy-duty industrial components provide exceptional reliability for continuous operation in demanding utility and industrial environments.
Low Vibration & Smooth Performance
The fully balanced compressor structure reduces vibration, lowers mechanical stress, and extends equipment service life.
Flexible Cooling Options
Available with both air-cooled and water-cooled configurations to match different installation environments and project requirements.
Easy Installation & Maintenance
Compact skid-mounted design requires minimal foundation work and offers convenient access for routine maintenance.
Low Operating Cost
Energy-efficient operation combined with reduced maintenance requirements helps lower total lifecycle costs.
Typical Applications
SF6 Circuit Breaker Maintenance
Recover and recompress SF6 gas during inspection, repair, and overhaul operations.
GIS (Gas Insulated Switchgear) Service
Support gas evacuation, transfer, and refilling processes for GIS equipment.
Power Utility Maintenance
Used by electrical utilities, transmission operators, and maintenance contractors for high-voltage equipment servicing.
SF6 Gas Recycling Systems
Integrated into SF6 gas recovery and purification systems for gas reuse and environmental compliance.
Key Technical Features
| Feature | Benefit |
|---|---|
| Oil-Free Compression | Maintains gas purity and prevents contamination |
| High Discharge Pressure | Suitable for gas recovery and cylinder filling |
| Industrial Duty Design | Reliable continuous operation |
| Air or Water Cooling | Flexible installation options |
| Compact Footprint | Saves valuable plant space |
| Low Vibration Structure | Reduced wear and maintenance |
| Custom Voltage Available | Suitable for global markets |
| Multiple Capacity Options | Covers various recovery requirements |
Technical Specifications
SF6-40/0.5-24
| Parameter | Value |
|---|---|
| Gas Medium | SF6 |
| Suction Pressure | 0.05 MPa |
| Discharge Pressure | 2.4 MPa |
| Capacity | 40 Nm³/h |
| Motor Power | 11 kW |
| Voltage | 220V / 380V / 440V, 50Hz / 60Hz, 3 Phase |
| Inlet Connection | M33×1.5 |
| Outlet Connection | M22×1.5 |
| Weight | 0.36 Ton |
| Dimensions | 1000 × 750 × 980 mm |
SFW-50/2-30
| Parameter | Value |
|---|---|
| Gas Medium | SF6 |
| Suction Pressure | 0.2 MPa |
| Discharge Pressure | 3.0 MPa |
| Capacity | 50 Nm³/h |
| Motor Power | 15 kW |
| Voltage | 220V / 380V / 440V, 50Hz / 60Hz, 3 Phase |
| Inlet Connection | 40 mm |
| Outlet Connection | 25 mm |
| Weight | 0.74 Ton |
| Dimensions | 1500 × 800 × 1100 mm |
SF6-70/2-10
| Parameter | Value |
|---|---|
| Gas Medium | SF6 |
| Suction Pressure | 0.2 MPa |
| Discharge Pressure | 1.0 MPa |
| Capacity | 70 Nm³/h |
| Motor Power | 11 kW |
| Voltage | 220V / 380V / 440V, 50Hz / 60Hz, 3 Phase |
| Inlet Connection | 65 mm |
| Outlet Connection | 25 mm |
| Weight | 0.54 Ton |
| Dimensions | 1200 × 800 × 1000 mm |
SF6-70/1-20
| Parameter | Value |
|---|---|
| Gas Medium | SF6 |
| Suction Pressure | 0.1 MPa |
| Discharge Pressure | 2.0 MPa |
| Capacity | 70 Nm³/h |
| Motor Power | 15 kW |
| Voltage | 220V / 380V / 440V, 50Hz / 60Hz, 3 Phase |
| Inlet Connection | 50 mm |
| Outlet Connection | 20 mm |
| Weight | 0.84 Ton |
| Dimensions | 1600 × 800 × 1400 mm |
Customization Options
PUFCO can customize SF6 recovery compressors according to project requirements:
