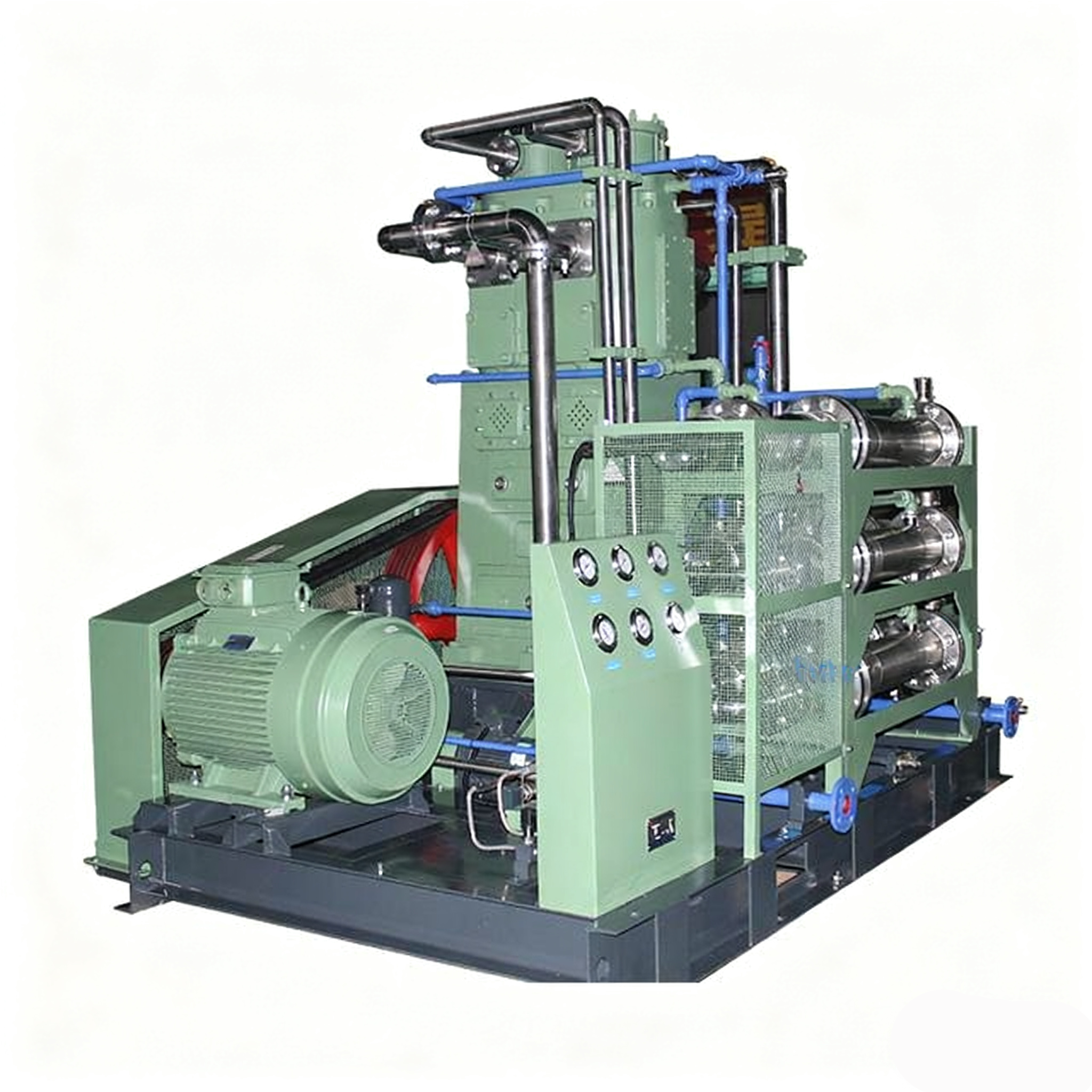

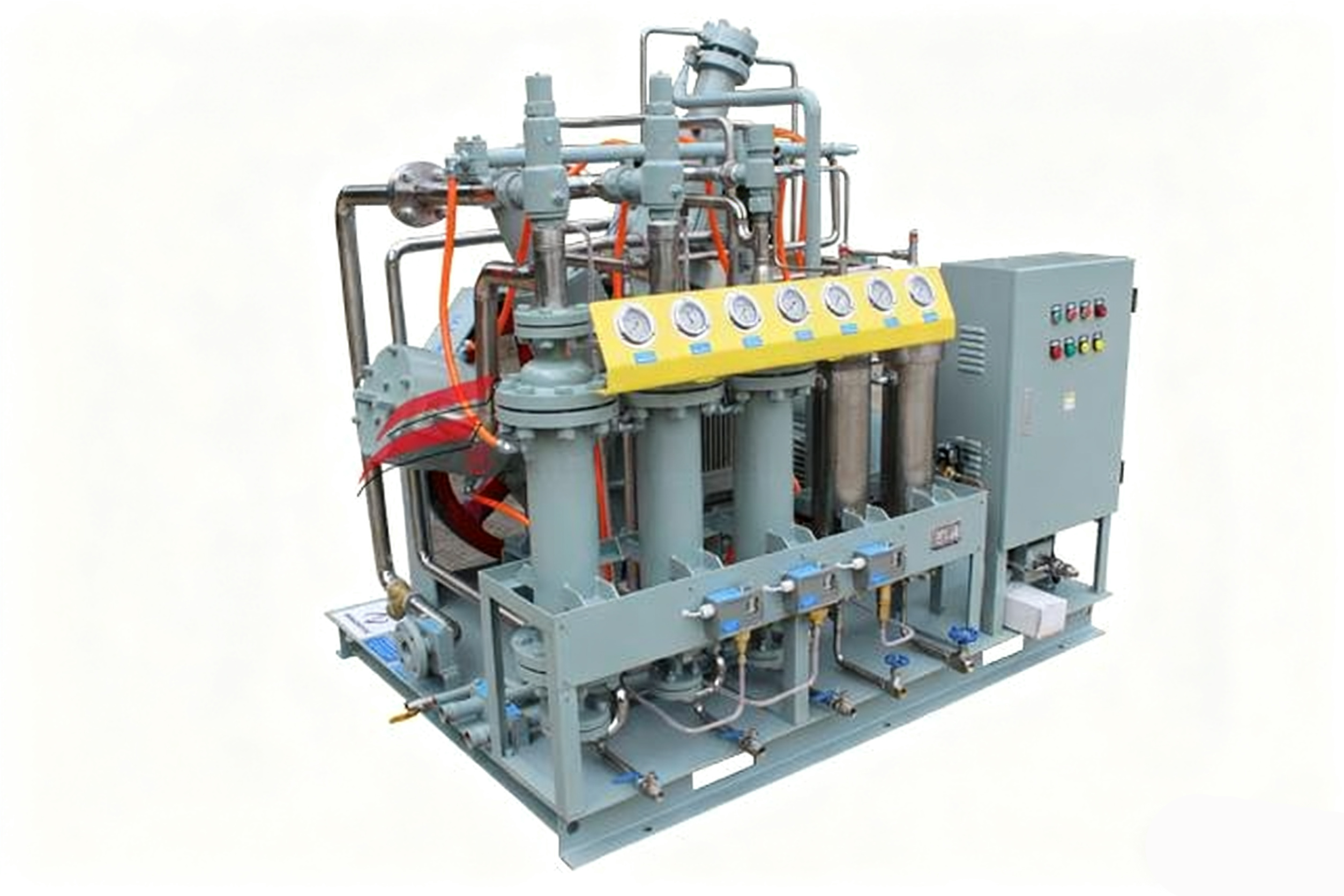

Oil-free high-pressure nitrogen compressor
1.Pressurizes nitrogen for industrial use, including laser cutting and storage.
2.Oil-free design ensures high-purity nitrogen with no contamination.
3.Simple, reliable, and efficient operation, suitable for cylinder filling.
- Overview
- Product Advantages
- Technical Parameters
- FAQ
A nitrogen compressor is a device designed to pressurize nitrogen for transportation, storage, or industrial use. It has a wide range of applications across the national economy, particularly in industries requiring high-purity nitrogen.
Pressurizing nitrogen for laser cutting
Nitrogen acts as a shielding gas in laser cutting, preventing oxidation of metal workpieces and surrounding areas at high temperatures, thereby improving cut surface quality and cleanliness.
Nitrogen storage
For PSA nitrogen generators with outlet pressures ≤10 barg, storing nitrogen allows for cost-effective use, such as charging during off-peak hours or when the generator has high displacement.
High-pressure nitrogen compressors for cylinder filling can be air-cooled or water-cooled, and are available in single-acting or double-acting designs. The Fengpai series oil-free nitrogen compressors provide stable operation, high efficiency, energy saving, and long service life, and are widely used in nitrogen laser cutting, nitrogen canning, and chemical engineering.
1. Completely oil-free design – Eliminates any possibility of oil contamination in high-pressure, high-purity nitrogen.
2. Simple and user-friendly structure – Easy to control and operate.
3. No contamination to the compressed nitrogen – Maintains consistent nitrogen purity from inlet to outlet.
4. Fully oil-free design with stainless steel cylinders, eliminating oil contamination, maintaining stable oxygen purity, and suitable for VPSA / PSA oxygen source boosting applications.
5. Stable and efficient operation – Long service life with energy-saving performance.
| Model | Inlet Pressure (barg) |
Outlet Pressure (barg) |
Nominal Volume Flow (Nm³/h) |
Motor Power (kW) | Inlet | Outlet | Cooling Method | Net Weight (kg) |
L×W×H(mm) |
| GZW-20/4-250 | 0.4 | 25 | 11 | 20 | water | 900 | 1550*1200*1600 | ||
| GZW-20/4-300 | 0.4 | 30 | 11 | 20 | 25MM | M14*1.5 | water | 900 | 1550*910*1400 |
| GZW-50/5-350 | 0.5 | 35 | 18.5 | 50 | 25MM | 10MM | water | 980 | 1650*1100*1450 |
| GZW-60/5-300 | 0.5 | 30 | 18.5 | 60 | 25MM | M16*1.5 | water | 980 | 1650*1100*1450 |
| GVW-50/50-125 | 5 | 12.5 | 7.5 | 50 | Air | 580 | 1400*950*1100 | ||
| GVW-30/27.6-124 | 2.76 | 12.4 | 4 | 30 | 15MM | 8MM | water | 350 | 11250*800*100 |
| GVW-5/5-200 | 0.5 | 20 | 4 | 5 | water | 380 | 1100*800*1000 | ||
| GVW-2/5-350 | 0.5 | 35 | 2.2 | 2 | 15MM | M14*1.5 | Air | 380 | 800*600*450 |
| GVW-30/30-150 | 3 | 15 | 5.5 | 30 | DN15 | DN8 | Air | 480 | 1000*750*850 |
| GWW-5/5-100 | 0.5 | 10 | 2.2 | 5 | DN15 | DN6 | Air | 420 | 1400*800*1200 |
| GWW-10/5-150 | 0.5 | 15 | 4 | 10 | DN15 | DN6 | Air | 400 | 1200*850*1000 |
| GWW-15/5-150 | 0.5 | 15 | 5.5 | 15 | DN25 | DN10 | water | 440 | 1400*850*1150 |
| GWW-20/7-100 | 0.7 | 10 | 5.5 | 20 | DN25 | DN10 | water | 860 | 1400*1050*1300 |
| GZW-180/15-250 | 1.5 | 25 | 180 | 30 | DN35 | DN10 | water | 3050 | 2500*1550*2200 |
| GZW-200/0.05-160 | positive pressure | 16 | 200 | 55 | DN125 | DN15 | water | 3850 | 2500*1650*2300 |
| GZW-200/5-160 | 0.5 | 16 | 200 | 45 | DN40 | DN15 | water | 3300 | 26500*1650*2250 |
| GZW-250/5-350 | 0.5 | 35 | 250 | 75 | water | 4200 | 2500*1700*2300 | ||
| GZW-250/6-200 | 0.6 | 20 | 250 | 55 | water | 3800 | 2550*1600*2300 | ||
| GZW-300/5-150 | 0.5 | 15 | 300 | 75 | water | 3500 | 2500*1600*2300 | ||
| GZW-400/10-150 | 1 | 15 | 400 | 75 | water | 3500 | 2500*1600*2300 | ||
| GZW-600/7-100 | 0.7 | 10 | 600 | 90 | water | 3800 | 2500*1700*2300 | ||
| GWW-5/5-100 | 0.5 | 10 | 5 | 2.2 | DN15 | DN6 | Air | 420 | 1400*800*1200 |
| GWW-10/5-150 | 0.5 | 15 | 10 | 4 | DN15 | DN6 | Air | 400 | 1200*850*1000 |
| GWW-15/5-150 | 0.5 | 15 | 15 | 5.5 | DN25 | DN10 | water | 440 | 1400*850*1150 |
| GWW-20/7-100 | 0.7 | 10 | 20 | 5.5 | DN25 | DN10 | water | 860 | 1400*1050*1300 |
Frequently Asked Questions
-
Q1: Are you a manufacturer or trading company? ▼A1: We are professional manufacturer with big modern factory in Shanghai, China. Both OEM & ODM service can be accepted.
-
Q2: Warranty terms of your machine? ▼A2: One year for the whole machine and two years for screw air end, except consumable spare parts. We provide technical support according to your needs.
-
Q3: Will you provide some spare parts of the machines? ▼A3: Yes. We provide spare parts for daily maintenance.
-
Q4: What voltage can you provide? ▼A4: We can support 220V/380V/400V/415V/440V/480V/570V/600V/1000V 50HZ/60HZ. Send your requirements to our sales manager and we will customize it for you.
-
Q5: How long will you take to arrange production? ▼A5: Delivery of standard goods within 7-10 working days, customization takes about 30 days.
-
Q6: How to pay? ▼A6: T/T, L/C, D/P, Western Union, Apple pay, Google pay, PAYPAL, Credit Card and so on. We also accept USD, RMB, EUR and other currencies.
-
Q7: Can you accept OEM/ODM orders? ▼A7: Yes, we have a professional design team, OEM/ODM orders are very welcome.
