Argon Compressor
1.Efficiently recovers and reuses vaporized argon from cryogenic tanks, reducing gas loss and lowering operating costs.
2.100% oil-free design ensures high-purity, pollution-free argon compression for industrial applications.
3.High efficiency, low energy consumption, and balanced structure provide stable operation and long service life.
4.Compact, easy to install and maintain, supporting 24/7 continuous operation with air-cooled or water-cooled options.
- Overview
- Product Advantages
- Technical Parameters
- FAQ
In a cryogenic liquid argon tank, the liquid argon at the top will naturally vaporize into argon gas over time. When the internal pressure exceeds 17 bar, the safety valve will automatically open to discharge the excess gas. This discharged argon gas represents a direct resource loss if left unutilized.

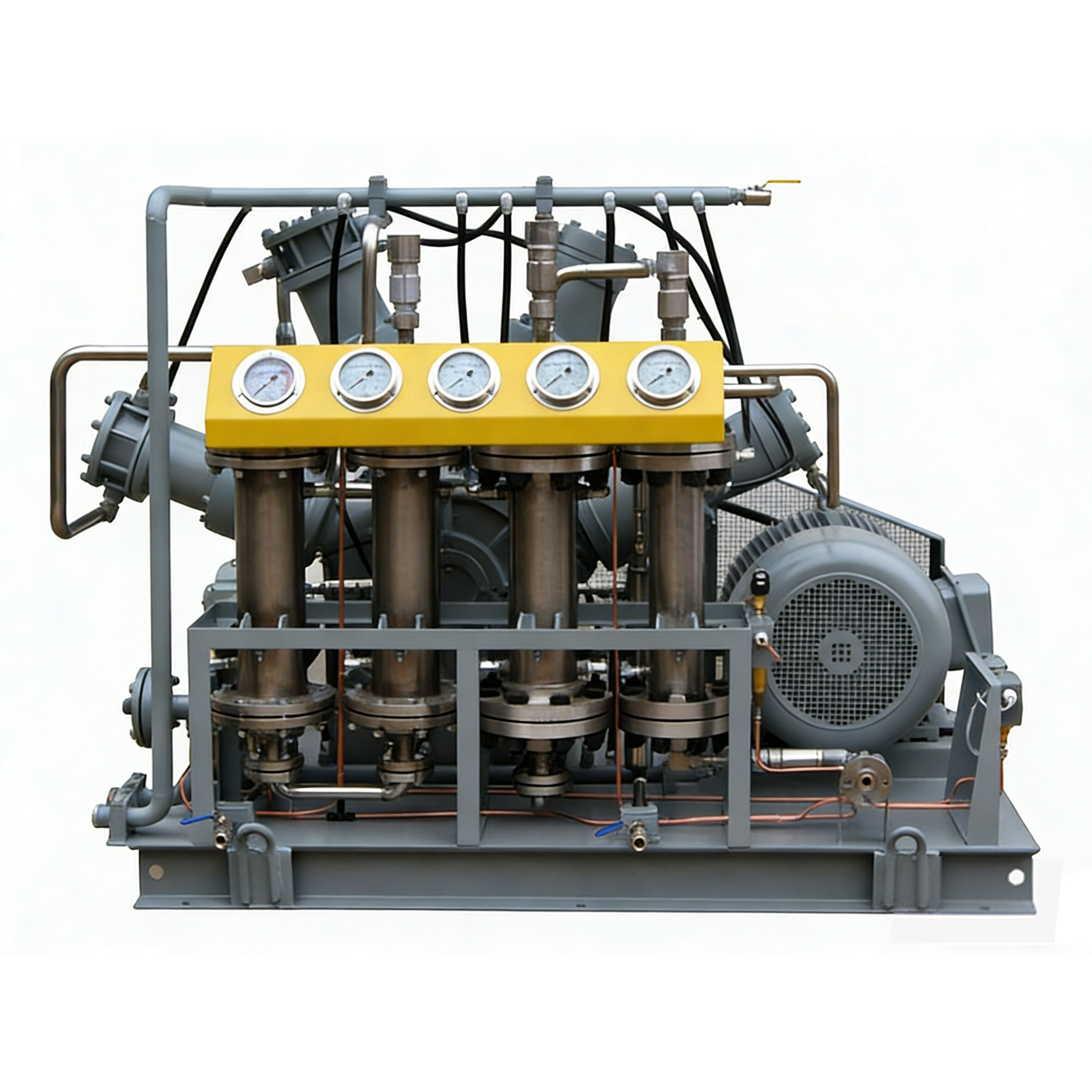

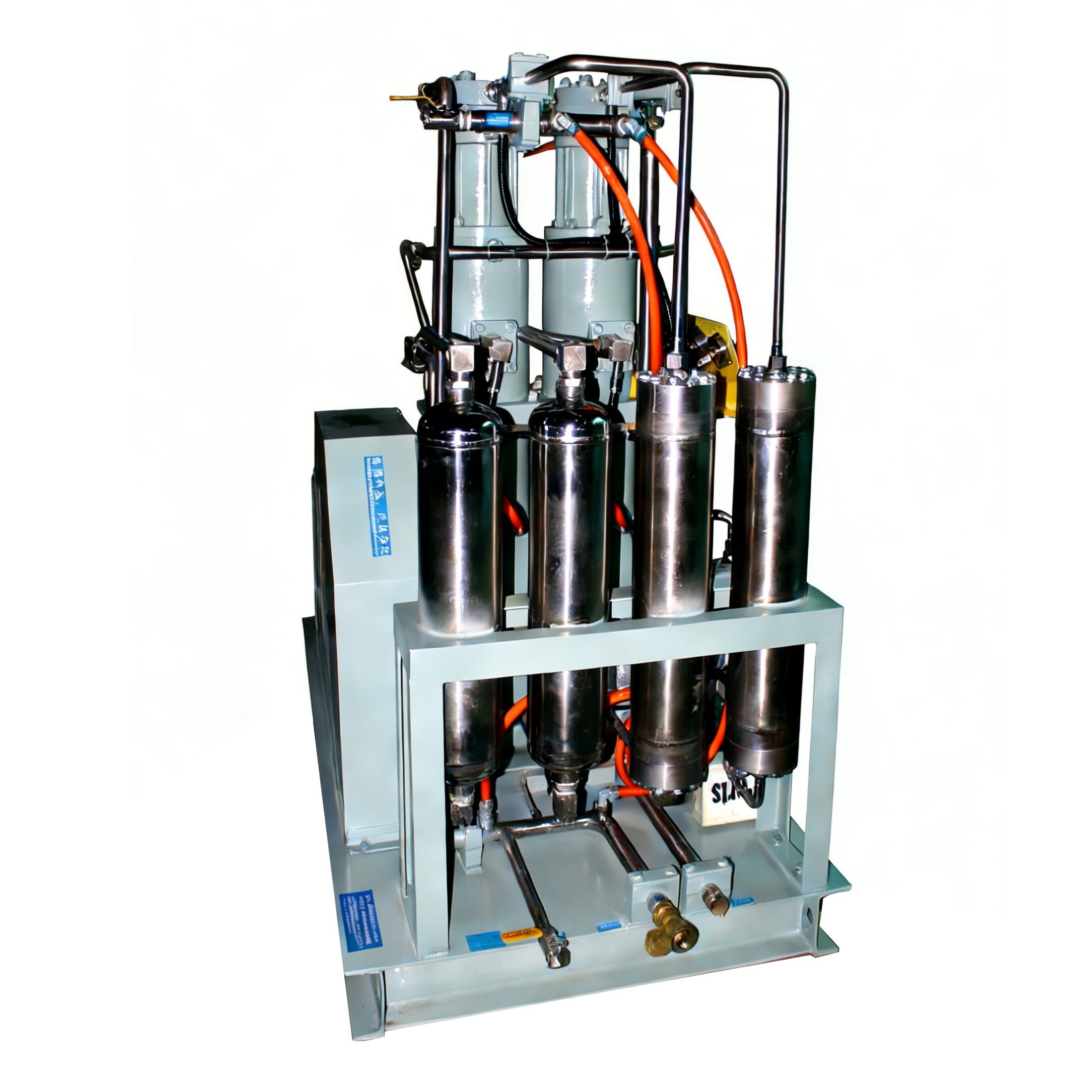

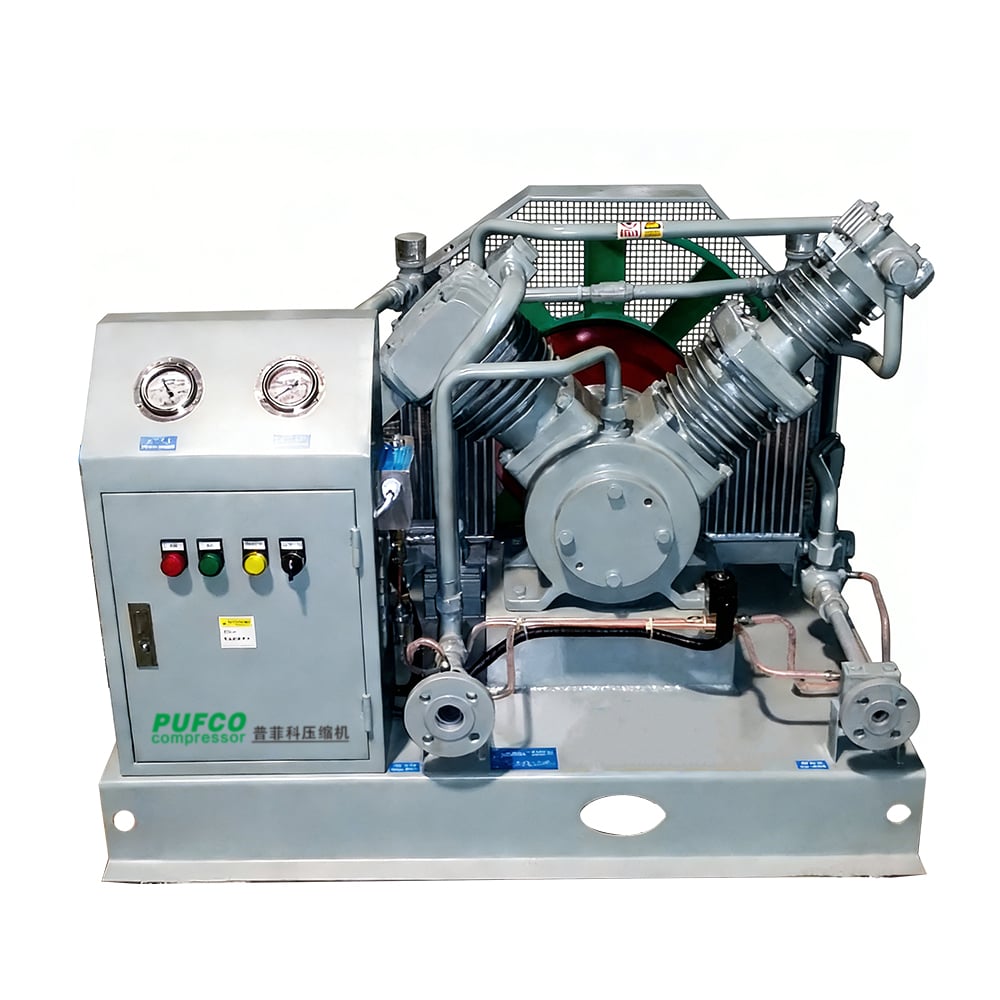

An argon booster compressor is specifically designed to address this challenge. It enables the efficient recovery and reuse of the vaporized argon gas by compressing it to the required pressure level, then refilling it back into gas cylinders for subsequent industrial applications. This not only reduces raw material waste and operational costs, but also enhances the overall sustainability of argon storage and usage systems.
1. Oil-Free Lubrication System: Ensures 100% clean and pollution-free operation, ideal for argon gas purity requirements.
2. High Efficiency & Low Energy Consumption: Optimized design reduces energy waste while maintaining excellent compression efficiency.
3. Fully Balanced Construction: Minimizes vibration during operation, enhancing stability and extending service life.
4. Exceptional Reliability: Supports 24/7 continuous operation to meet uninterrupted industrial production demands.
5. Easy Installation & Maintenance: No special foundation requirements, simplifying on-site setup and daily upkeep.
6. Dual Cooling Options: Air-cooled or water-cooled systems available, lowering overall installation costs.
7. Compact Structure: Saves installation space with low operation and maintenance costs for long-term economy.
| Model | Working Medium | Suction Pressure（Mpa） | Suction Pressure（Psig） | Discharge Pressure（Mpa） | Discharge Pressure（Psig） | Power (KW) |
Flow Rate (Nm3 / hr) |
Voltage | Cooling Method |
| PARZ-100 / 6-165 | Argon | 0.6 | 86 | 16.5 | 2370 | 37 | 100 | 220V / 380V / 415V / 440V 50 / 60HZ | Water-cooled |
| PARV-8 / 1-8 | Argon | 0.1 | 14 | 0.8 | 115 | 1.5 | 8 | 220V / 380V / 415V / 440V 50 / 60HZ | Air-cooled |
| PARW-15/5 | Argon | Slight Positive Pressure | Slight Positive Pressure | 1.5 | 216 | 2.2 | 5 | 220V / 380V / 415V / 440V 50 / 60HZ | Air-cooled |
Frequently Asked Questions
-
Q1: Are you a manufacturer or trading company? ▼A1: We are professional manufacturer with big modern factory in Shanghai, China. Both OEM & ODM service can be accepted.
-
Q2: Warranty terms of your machine? ▼A2: One year for the whole machine and two years for screw air end, except consumable spare parts. We provide technical support according to your needs.
-
Q3: Will you provide some spare parts of the machines? ▼A3: Yes. We provide spare parts for daily maintenance.
-
Q4: What voltage can you provide? ▼A4: We can support 220V/380V/400V/415V/440V/480V/570V/600V/1000V 50HZ/60HZ. Send your requirements to our sales manager and we will customize it for you.
-
Q5: How long will you take to arrange production? ▼A5: Delivery of standard goods within 7-10 working days, customization takes about 30 days.
-
Q6: How to pay? ▼A6: T/T, L/C, D/P, Western Union, Apple pay, Google pay, PAYPAL, Credit Card and so on. We also accept USD, RMB, EUR and other currencies.
-
Q7: Can you accept OEM/ODM orders? ▼A7: Yes, we have a professional design team, OEM/ODM orders are very welcome.
