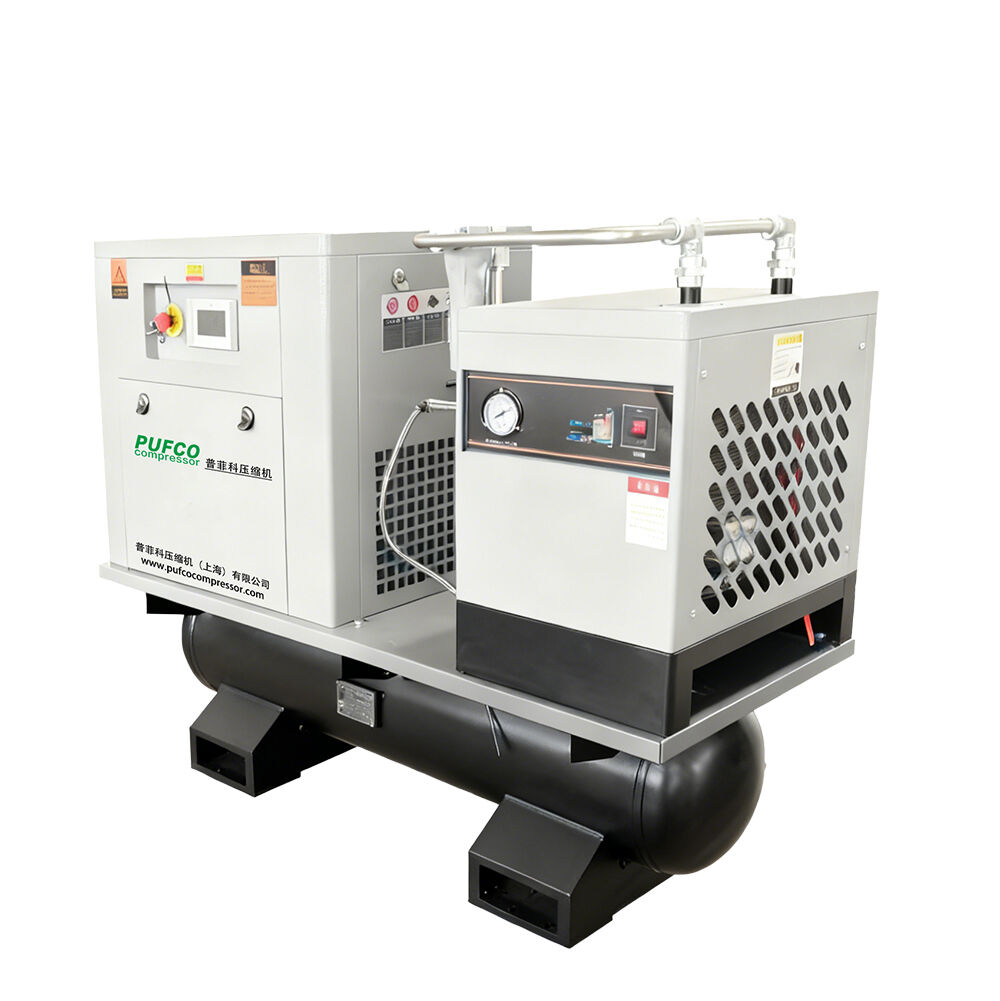

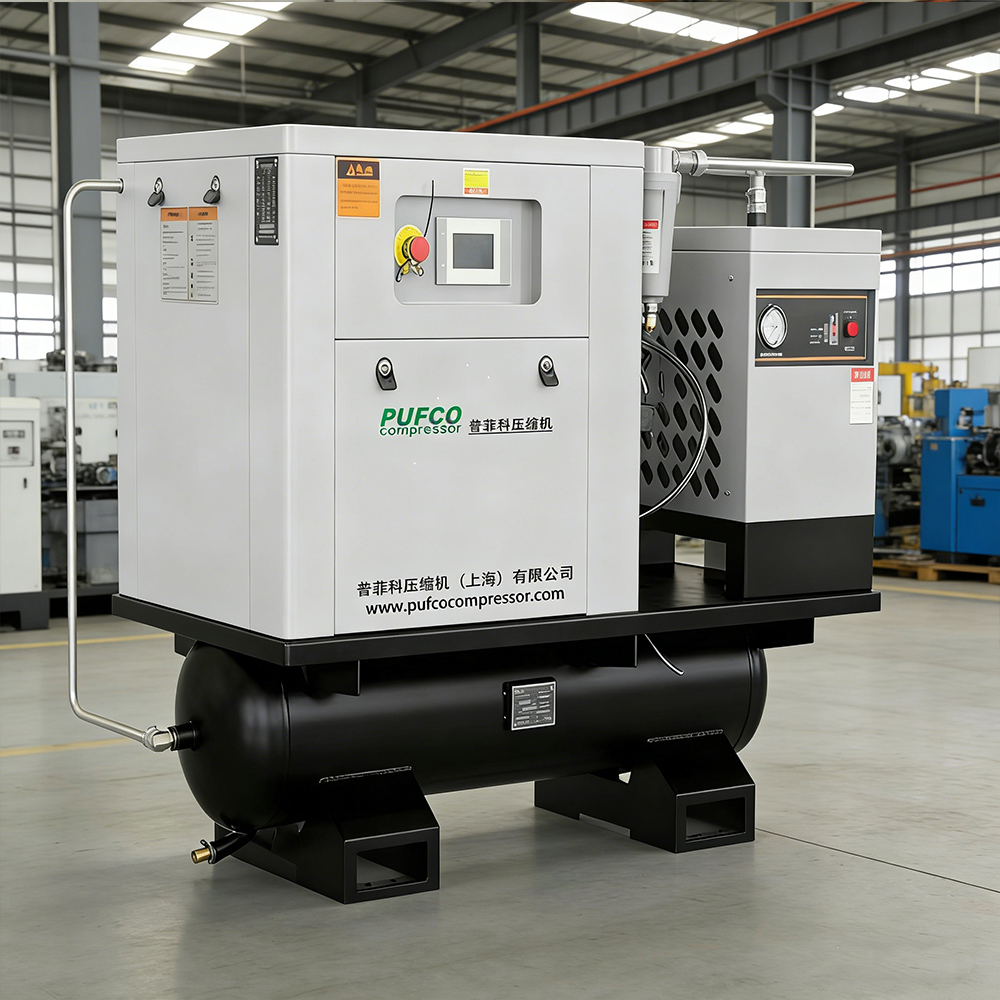

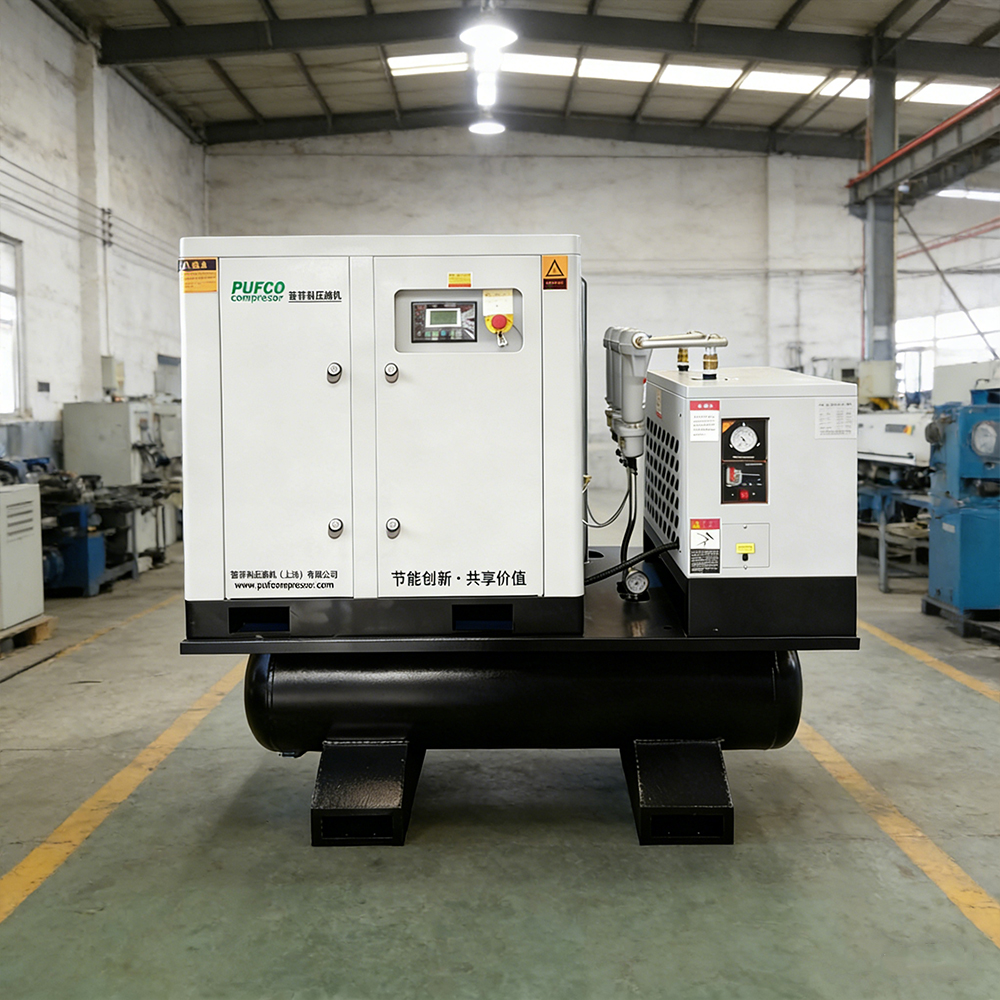

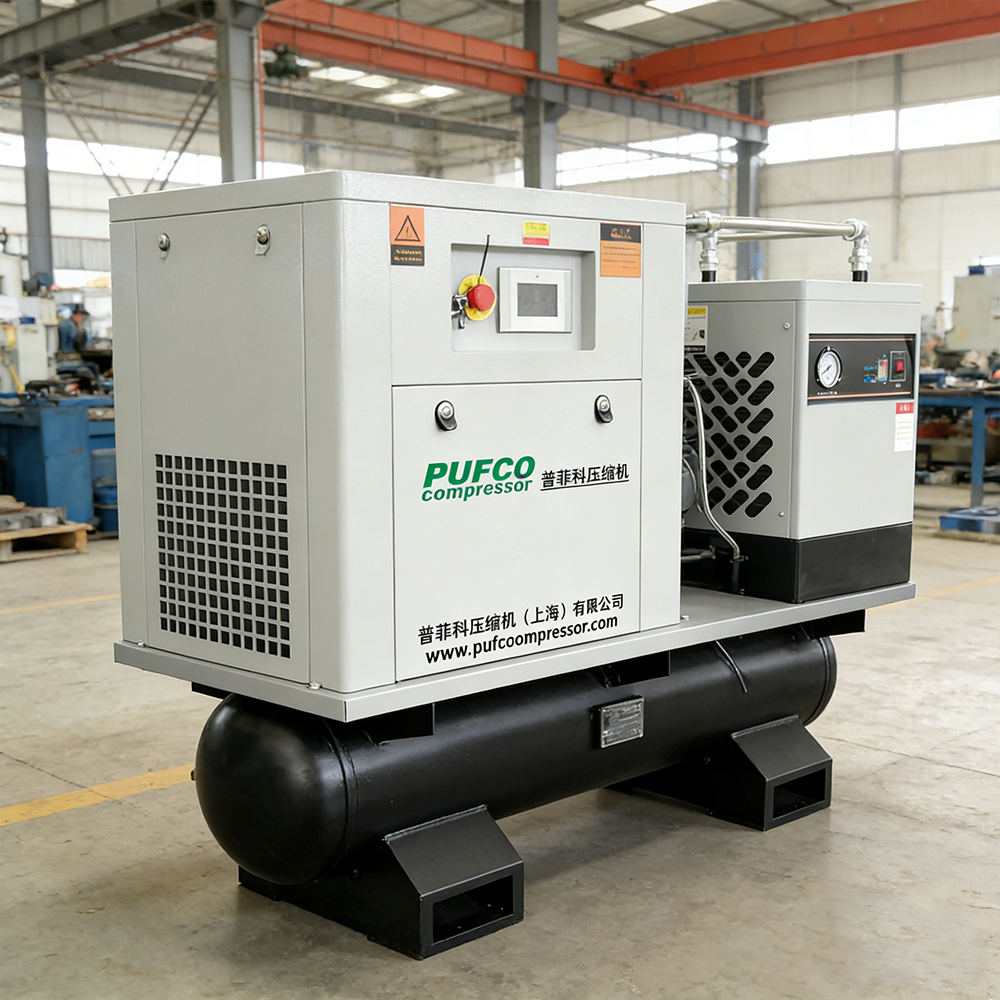

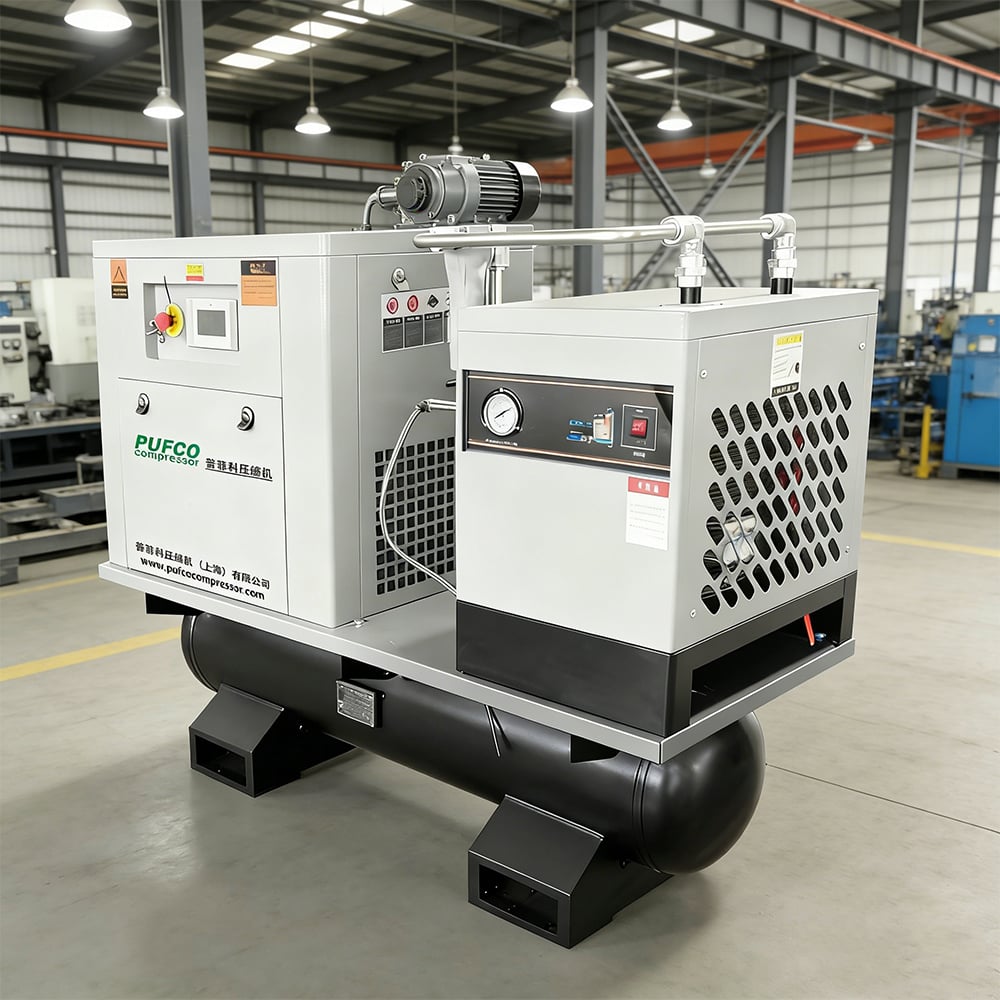

All In One Screw Air Compressor
Power：7.5-22kw
Working Pressure：0.75-1.3Mpa
Air Capacity：0.85m³/min-3.2m³/min
Voltage：380V, 110V, 220V,ets
- Overview
- Technical Parameters
- Product Advantages
- Power range: 7.5kW - 22kW
- Pressure range: 0.75MPa - 1.3MPa
- Flow rate: 1.0m³/min - 3.2m³/min

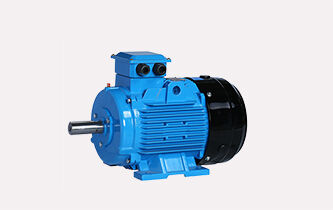

- IP55 class B Electric motors

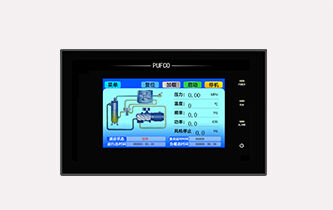

- Control system: Intelligent PLC with touch screen
- Energy efficiency: IE3/IE4/IE5 premium efficiency motors
- Noise level: ≤65dB(A)
- Cooling system: Air-cooled
- Custom Solutions for Every Machine.
Product Advantages
Why choose our air compressor solutions
High Efficiency
Advanced technology ensures optimal performance and energy savings for your operations
Reliability
Built with high-quality components for long-term stable operation and minimal downtime
Smart Control
Intelligent system with real-time monitoring and automatic adjustments for optimal performance
Low Noise
Optimized design for quiet operation, creating a better working environment
Easy Maintenance
Modular design for simple maintenance and reduced operational costs
Quality Assurance
ISO certified with comprehensive warranty and professional technical support

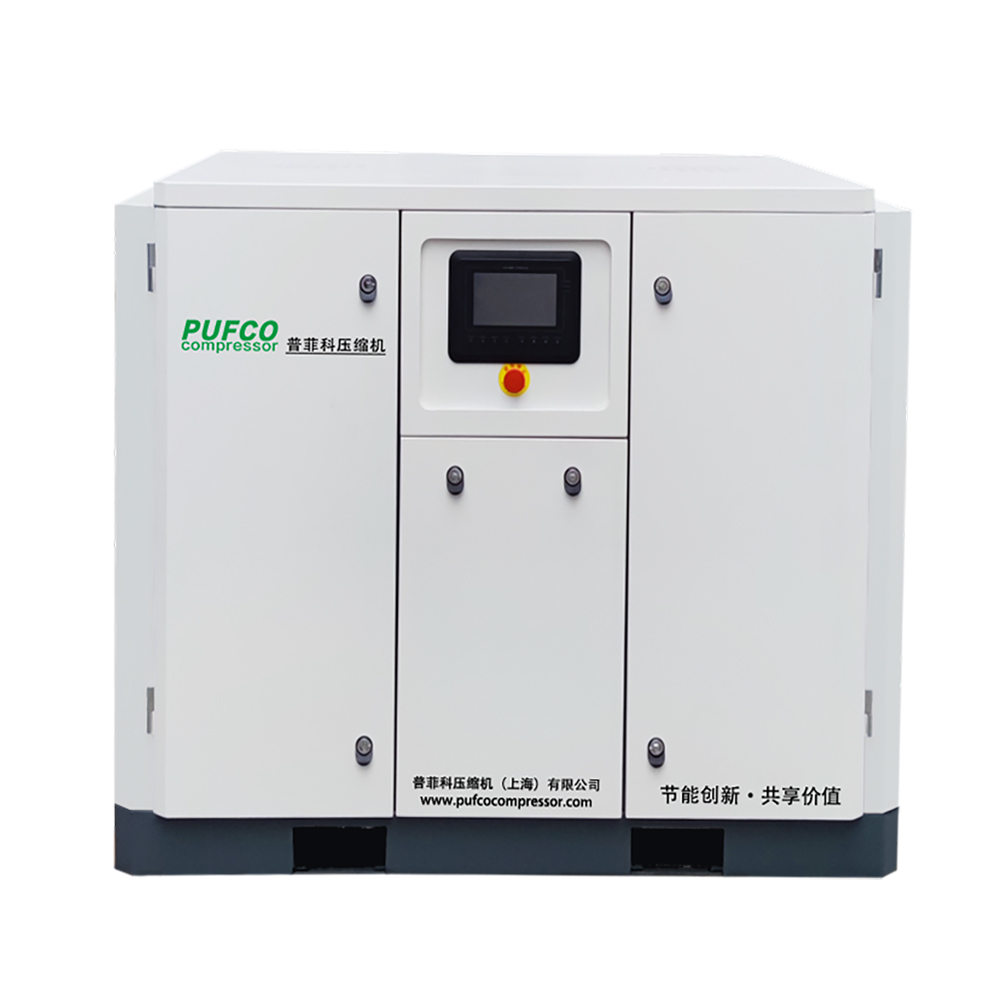

Product Details
Advanced features and specifications
Technical Specifications
Applications
Versatile solutions for various industries
Manufacturing
Powering production lines, assembly equipment, and robotic systems
Construction
Supplying air for pneumatic tools, spray painting, and concrete spraying
Food Processing
Providing clean air for packaging, filling, and processing equipment
Medical
Supporting medical equipment and clean air systems in healthcare facilities
Electronics
Providing clean, dry air for electronic component manufacturing
Chemical
Supporting chemical processing and production systems
Success Cases
Proven solutions for our clients
Automotive Manufacturing
Provided a complete compressed air system for a major automotive manufacturer, reducing energy consumption by 35% and improving production efficiency

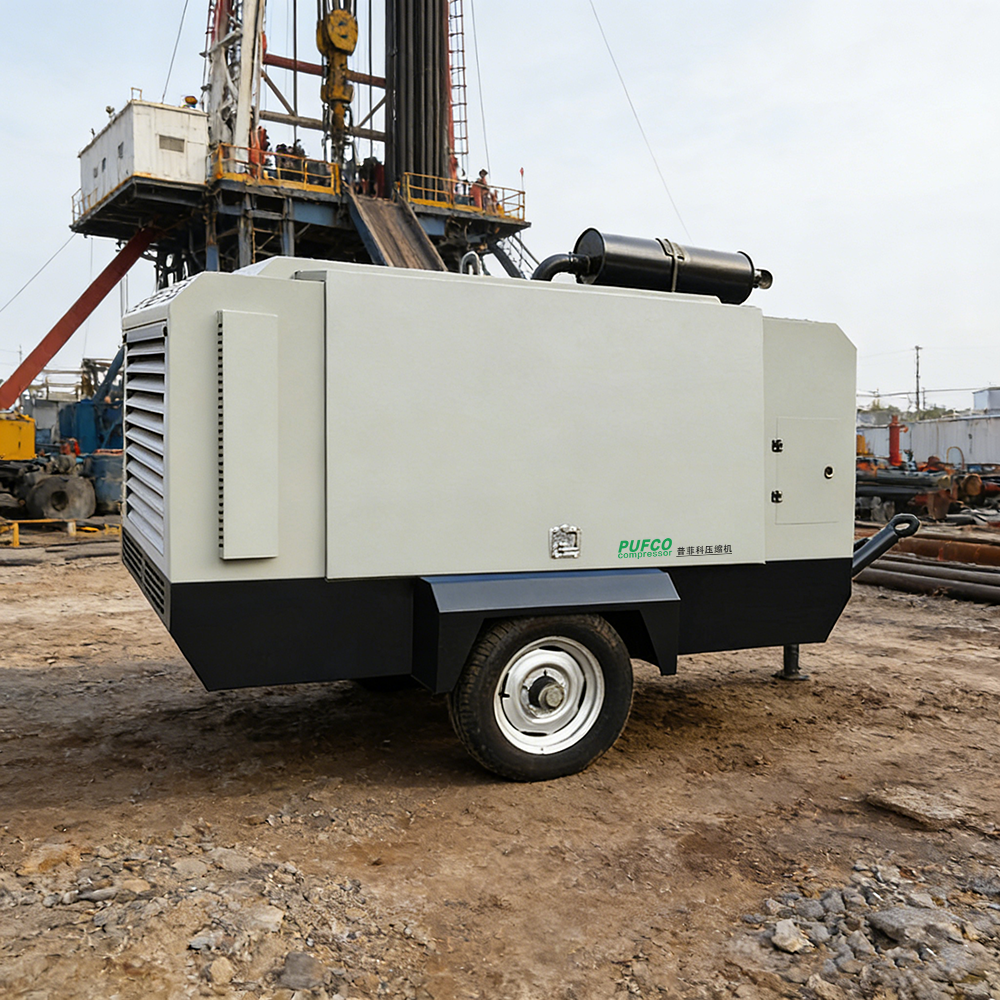

Infrastructure Project
Supplied portable air compressors for a large-scale infrastructure project, ensuring reliable power for pneumatic tools and equipment
Food Processing Plant
Installed a food-grade compressed air system for a processing plant, meeting strict hygiene standards and improving production capacity
Semiconductor Industry
By customising oil-free air compressors for our clients, we have increased the first-pass yield from 95% to 98%.
Frequently Asked Questions
Answers to common questions about our air compressors
We are professional manufacturer factory in Shanghai, China. Both OEM & ODM service can be accepted.
We provide a 12-month warranty for the entire machine and a 24-month warranty for the air end. Consumable parts are excluded from the warranty, but we offer competitive pricing for replacement parts.
Yes, we offer custom solutions tailored to your specific requirements. Our engineering team can design compressors with special features such as food-grade filtration, high-pressure capabilities, or specific voltage requirements.
Regular maintenance includes changing air filters, oil filters, and lubricating oil according to the recommended schedule. We provide detailed maintenance manuals and offer maintenance services through our network of service centers.
Our sales engineers can help you select the right compressor based on your air demand, pressure requirements, and application specifics. We offer free consultations to ensure you get the most suitable solution for your business.
T/T, L/C, D/P, Western Union, Apple pay, Google pay, PAYPAL, Credit Card and so on. We also accept USD, RMB, EUR and other currencies.
Yes, we have a professional R&D team and are more than happy to accept OEM/ODM orders.
We can support 220V/380V/400V/415V/440V/480V/570V/600V/1000V 50HZ/60HZ. Send your requirements to our sales manager and we will customize it for you.
| Model | Power（kW） | Pressure（MPa） | Exhaust Vol. （m³/min） |
Length （mm） |
Width （mm） |
Height （mm） |
Weight（kg） | Outlet Diameter |
| FA-7T | 7.5KW | 0.75 | 1 | 1500 | 660 | 1320 | 260 | RP1/2 |
| 0.85 | 1 | |||||||
| 1.05 | 0.85 | |||||||
| FA-11T | 11KW | 0.75 | 1.5 | 1770 | 770 | 1600 | 420 | RP3/4 |
| 0.85 | 1.5 | |||||||
| 1.05 | 1.3 | |||||||
| 1.3 | 1.1 | 1850 | 770 | 1600 | 450 | RP3/4 | ||
| FA-15T | 15KW | 0.75 | 2.3 | 1770 | 770 | 1600 | 480 | RP3/4 |
| 0.85 | 2.3 | |||||||
| 1.05 | 2.1 | |||||||
| 1.3 | 1.5 | 1850 | 770 | 1600 | 480 | RP3/4 | ||
| FA-22T | 22KW | 0.75 | 3.2 | 1770 | 870 | 1850 | 480 | RP1 |
| 0.85 | 3.2 | |||||||
| 1.05 | 3 | |||||||
| 1.3 | 2.8 | 1900 | 850 | 1840 | 510 | RP1 |

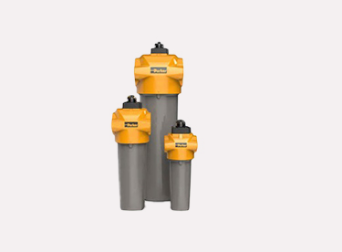

Clean air
Solve compressed air and gas filtration problems in your most demanding applications, increasing efficiency, reducing downtime and lowering operating costs.
Wide range of applications
All-in-one design, reduced space, plug and play, trial for a variety of small air usage scenarios
Energy saving and high efficiency
The advanced PM VSD motor technology and optimised airflow design of PUFCO's oil-free compressors reduce energy consumption by up to 15%-35% compared to conventional products, resulting in lower running costs.
Quiet Operation
Lower noise, creating a safer and more comfortable working environment.
Durable Design
Robust construction with corrosion-resistant components ensures long-term reliability even in harsh conditions.
Extra-long Service
Up to 10 years warranty. Whenever and wherever you can find PUFCO, you can be sure to get the right service.
