Inlet temperature: ≤80℃ (≤45℃)
- Overview
- Technical Parameters
- FAQ
Refrigerated dryer through the inflow of compressed air through the heat exchanger and the cold air discharged from the evaporator for heat exchange, so that the temperature of the compressed air into the evaporator is reduced to the dew point temperature. Make the moisture cold condensation after the formation of water droplets. The moisture is separated from the air by centrifugal force and finally discharged from the automatic drain valve.

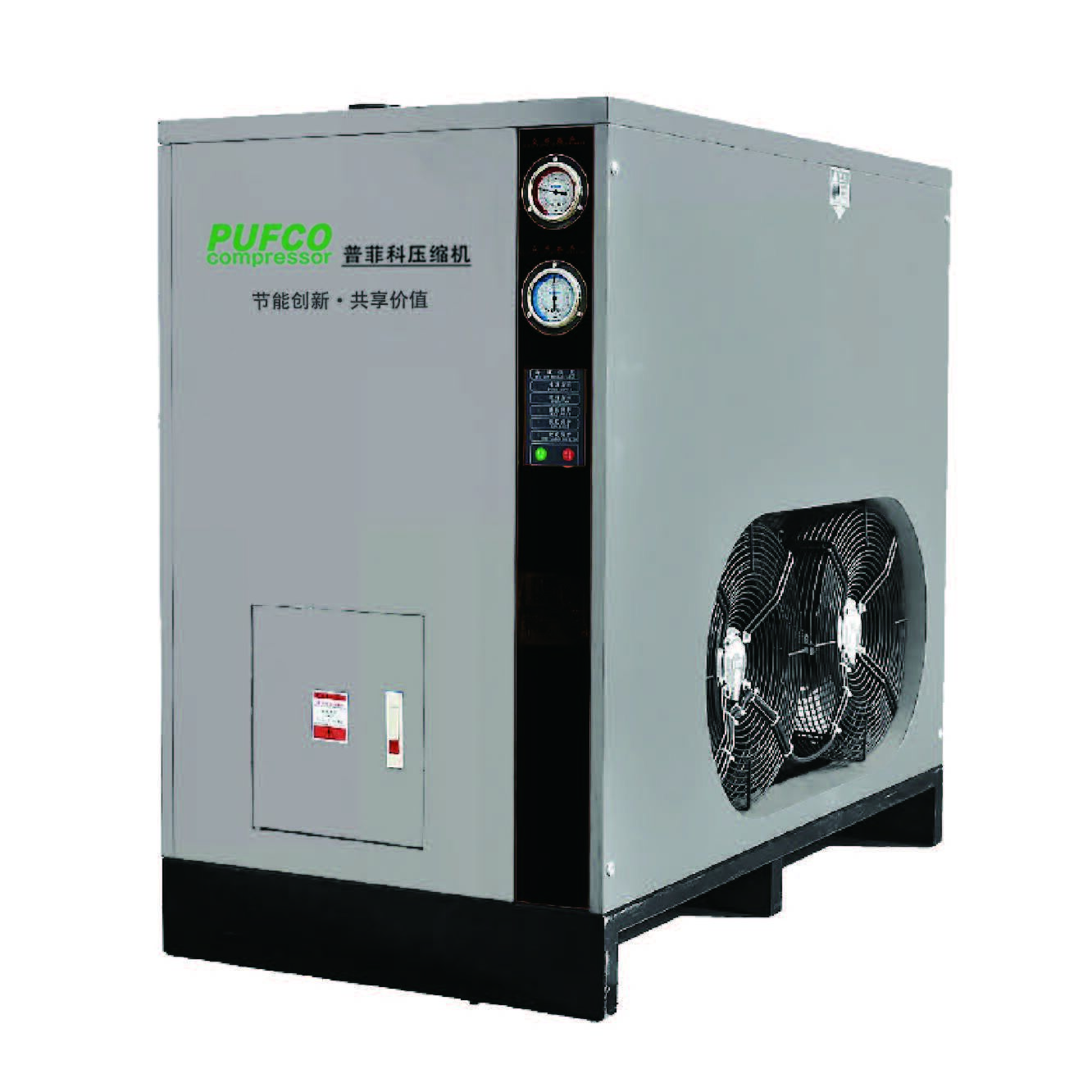

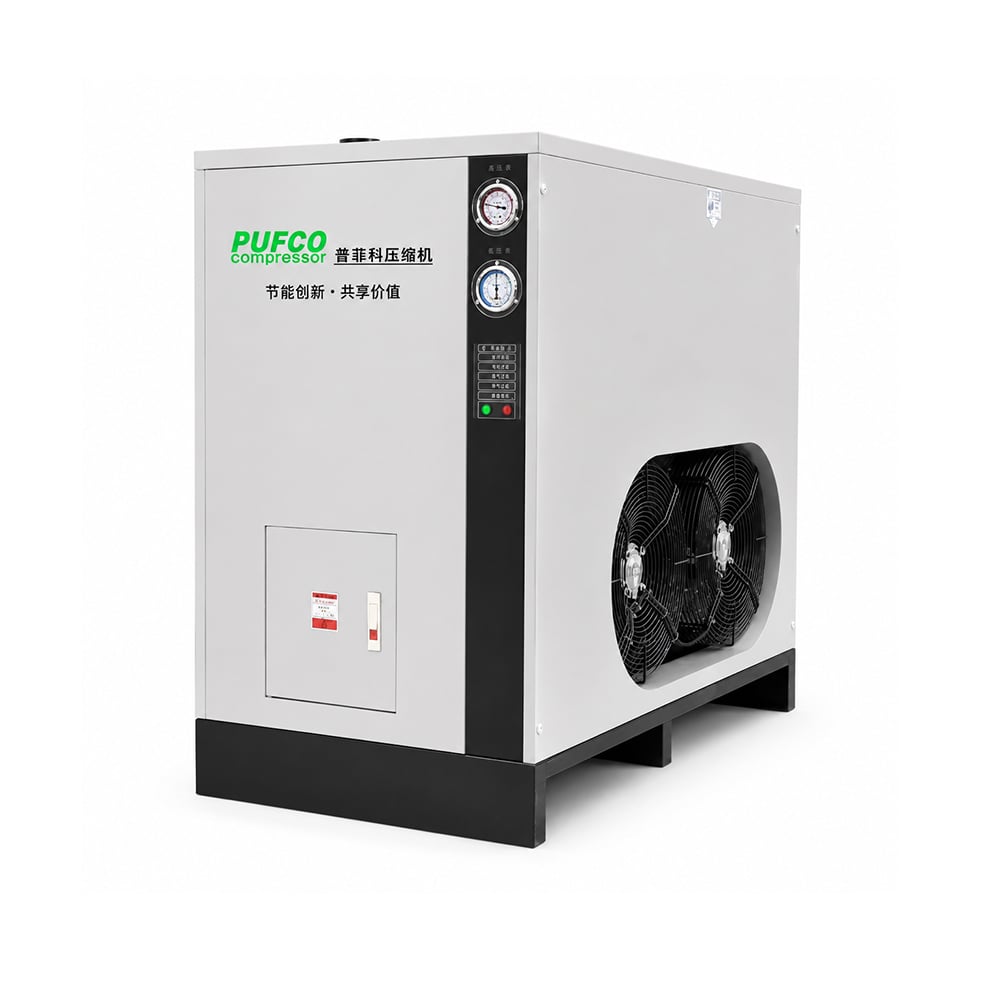

Air Cooling Refrigerated Air Dryer
| Model | Processing capability (Nm3/min) |
Intake air temperature | Model | Processing capability (Nm3/min) |
Intake air temperature |
| FAD-1CF | 1.5 | ≤50℃ | FAD-1GF | 1.5 | ≤80℃ |
| FAD-2CF | 2.6 | ≤50℃ | FAD-2GF | 2.6 | ≤80℃ |
| FAD-4CF | 4.0 | ≤50℃ | FAD-4GF | 4.0 | ≤80℃ |
| FAD-6CF | 6.5 | ≤50℃ | FAD-6GF | 6.5 | ≤80℃ |
| FAD-15CF | 16.0 | ≤50℃ | FAD-8GF | 8.5 | ≤80℃ |
| FAD-20CF | 21.5 | ≤50℃ | FAD-10GF | 11.0 | ≤80℃ |
| FAD-25CF | 25.0 | ≤50℃ | FAD-13GF | 13.8 | ≤80℃ |
| FAD-28CF | 28.0 | ≤50℃ | FAD-15GF | 17.0 | ≤80℃ |
| FAD-30CF | 30.0 | ≤50℃ | FAD-20GF | 23.0 | ≤80℃ |
| FAD-40CF | 45.0 | ≤50℃ | FAD-25GF | 25.0 | ≤80℃ |
| FAD-50CF | 55.0 | ≤50℃ | FAD-30GF | 30.0 | ≤80℃ |
| FAD-60CF | 65.0 | ≤50℃ | FAD-35GF | 35.0 | ≤80℃ |
| FAD-80CF | 85.0 | ≤50℃ | FAD-40GF | 45.0 | ≤80℃ |
| FAD-100CF | 110.0 | ≤50℃ | FAD-50GF | 55.0 | ≤80℃ |
| FAD-60GF | 65.0 | ≤80℃ | |||
| FAD-80GF | 85.0 | ≤80℃ | |||
| FAD-100GF | 110.0 | ≤80℃ |
Frequently Asked Questions
-
Q1: Are you a manufacturer or trading company? ▼A1: We are professional manufacturer with big modern factory in Shanghai, China. Both OEM & ODM service can be accepted.
-
Q2: Warranty terms of your machine? ▼A2: One year for the whole machine and two years for screw air end, except consumable spare parts. We provide technical support according to your needs.
-
Q3: Will you provide some spare parts of the machines? ▼A3: Yes. We provide spare parts for daily maintenance.
-
Q4: What voltage can you provide? ▼A4: We can support 220V/380V/400V/415V/440V/480V/570V/600V/1000V 50HZ/60HZ. Send your requirements to our sales manager and we will customize it for you.
-
Q5: How long will you take to arrange production? ▼A5: Delivery of standard goods within 7-10 working days, customization takes about 30 days.
-
Q6: How to pay? ▼A6: T/T, L/C, D/P, Western Union, Apple pay, Google pay, PAYPAL, Credit Card and so on. We also accept USD, RMB, EUR and other currencies.
-
Q7: Can you accept OEM/ODM orders? ▼A7: Yes, we have a professional design team, OEM/ODM orders are very welcome.
