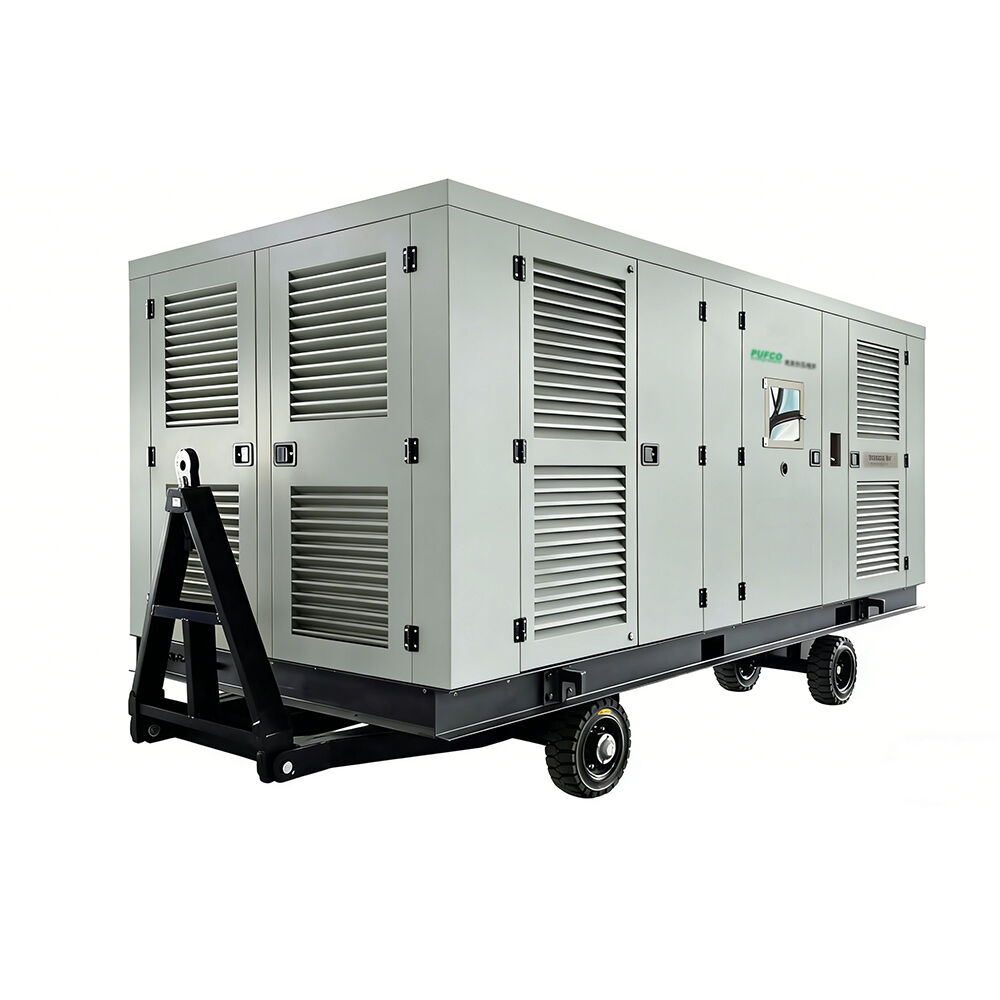

Oil-free Diesel Portable( dry srew ) Air Compressor
Power：365kw/410kw
Working Pressure：10bar
Air Capacity：900cfm 160cfm
MOQ：1 Set
Warranty:10 year
Customizable:OEM/ODM
Trade terms:EXW to DDP all support
Note:Contact us and we will provide you with detailed parameters as well as an exclusive offer.
- Overview
- Product Advantages
- Technical Parameters
- Application Scenarios
- FAQ
Warning: Attempt to read property "ID" on string in /www/wwwroot/pufcocompressor.com/wp-content/themes/wp2026/single-product.php on line 380
Oil-free Diesel Portable( dry srew ) Air Compressor
Power：365kw/410kw
Working Pressure：10bar
Air Capacity：900cfm 160cfm
MOQ：1 Set
Warranty:10 year
Customizable:OEM/ODM
Trade terms:EXW to DDP all support
Note:Contact us and we will provide you with detailed parameters as well as an exclusive offer.
Warning: Attempt to read property "ID" on string in /www/wwwroot/pufcocompressor.com/wp-content/themes/wp2026/single-product.php on line 380
Oil-free Diesel Portable( dry srew ) Air Compressor
Power：365kw/410kw
Working Pressure：10bar
Air Capacity：900cfm 160cfm
MOQ：1 Set
Warranty:10 year
Customizable:OEM/ODM
Trade terms:EXW to DDP all support
Note:Contact us and we will provide you with detailed parameters as well as an exclusive offer.
Warning: Attempt to read property "ID" on string in /www/wwwroot/pufcocompressor.com/wp-content/themes/wp2026/single-product.php on line 380
Oil-free Diesel Portable( dry srew ) Air Compressor
Power：365kw/410kw
Working Pressure：10bar
Air Capacity：900cfm 160cfm
MOQ：1 Set
Warranty:10 year
Customizable:OEM/ODM
Trade terms:EXW to DDP all support
Note:Contact us and we will provide you with detailed parameters as well as an exclusive offer.
Warning: Attempt to read property "ID" on string in /www/wwwroot/pufcocompressor.com/wp-content/themes/wp2026/single-product.php on line 380
Oil-free Diesel Portable( dry srew ) Air Compressor
Power：365kw/410kw
Working Pressure：10bar
Air Capacity：900cfm 160cfm
MOQ：1 Set
Warranty:10 year
Customizable:OEM/ODM
Trade terms:EXW to DDP all support
Note:Contact us and we will provide you with detailed parameters as well as an exclusive offer.
Warning: Attempt to read property "ID" on string in /www/wwwroot/pufcocompressor.com/wp-content/themes/wp2026/single-product.php on line 380
Oil-free Diesel Portable( dry srew ) Air Compressor
Power：365kw/410kw
Working Pressure：10bar
Air Capacity：900cfm 160cfm
MOQ：1 Set
Warranty:10 year
Customizable:OEM/ODM
Trade terms:EXW to DDP all support
Note:Contact us and we will provide you with detailed parameters as well as an exclusive offer.
Warning: Attempt to read property "ID" on string in /www/wwwroot/pufcocompressor.com/wp-content/themes/wp2026/single-product.php on line 380
Oil-free Diesel Portable( dry srew ) Air Compressor
Power：365kw/410kw
Working Pressure：10bar
Air Capacity：900cfm 160cfm
MOQ：1 Set
Warranty:10 year
Customizable:OEM/ODM
Trade terms:EXW to DDP all support
Note:Contact us and we will provide you with detailed parameters as well as an exclusive offer.
Warning: Attempt to read property "ID" on string in /www/wwwroot/pufcocompressor.com/wp-content/themes/wp2026/single-product.php on line 380
Oil-free Diesel Portable( dry srew ) Air Compressor
Power：365kw/410kw
Working Pressure：10bar
Air Capacity：900cfm 160cfm
MOQ：1 Set
Warranty:10 year
Customizable:OEM/ODM
Trade terms:EXW to DDP all support
Note:Contact us and we will provide you with detailed parameters as well as an exclusive offer.
Warning: Attempt to read property "ID" on string in /www/wwwroot/pufcocompressor.com/wp-content/themes/wp2026/single-product.php on line 532
Oil-free Diesel Portable( dry srew ) Air Compressor
Power：365kw/410kw
Working Pressure：10bar
Air Capacity：900cfm 160cfm
MOQ：1 Set
Warranty:10 year
Customizable:OEM/ODM
Trade terms:EXW to DDP all support
Note:Contact us and we will provide you with detailed parameters as well as an exclusive offer.
| Model | P900 | P1600 |
| Free air delivery | 900cfm(26m3/min) | 1600cfm(45m3/min) |
| Working pressure | 10barg(145psig) | 10barg(145psig) |
| Atmospheric pressure | 0.1013MPa(a) | 0.1013MPa(a) |
| Ambient temperature | ≤46℃ | ≤46℃ |
| Relative humidity | ≤80% | ≤80% |
| Operating temperature | ≤Ambient temperature+15℃ | |
| Engine | ||
| Manufacturer | CUMMINS | CUMMINS |
| Model | QSL8.9-C360-30 | QSZ13-C550-30 |
| Rated power | 265kW/360hp | 410kW/550hp |
| Type | Turbocharging, charge air cooling | |
| Bore × Stroke × No. of Cylinders | 114mm X 144.5mm X 6 | 130mm X 163mm X 6 |
| Engine speed (nominal) | 1800RPM | 1900RPM |
| Engine speed (unloaded) | 1300RPM | 1300RPM |
| Engine lubricant capacity | 24L | 45L |
| Diesel fuel tank capacity | 600L | 700L |
| Fuel consumption at 100% load | 45L/h | 90L/h |
| Coolant capacity | 65L | 160L |
| Battery starting current (CCA) | 930 | 930 |
| Air end | ||
| Manufacturer | GHH RAND | GHH RAND |
| No. of compression stage | 2 | 2 |
| Rotor Tooth Ratio | Non-alloy steel/stainless steel Asymmetrical 4:6 | |
| Compressor | ||
| Lubricant capacity | 120L | 120L |
| Oil grade | Lubricant Grade: 68# (Specify Standard) | |
| Noise level | 90±3dB | 90±3dB |
| Air Outlet size | DN65 | DN100 |
| Weight | 4500kg | 8500kg |
| Dimensions | 4300mm X 2000mm X 2100mm | 5000mm X 2200mm X 2426mm |
